A solar piling machine solves inefficient and unstable foundation issues for photovoltaic projects. Traditional manual piling and simple drilling tools struggle with complex terrain. They often deliver uneven pile depth and weak foundation fixation. This professional hydraulic equipment provides accurate, fast, and durable piling solutions for all solar construction scenarios.
Solar Piling Machine Complete Technical Parameters

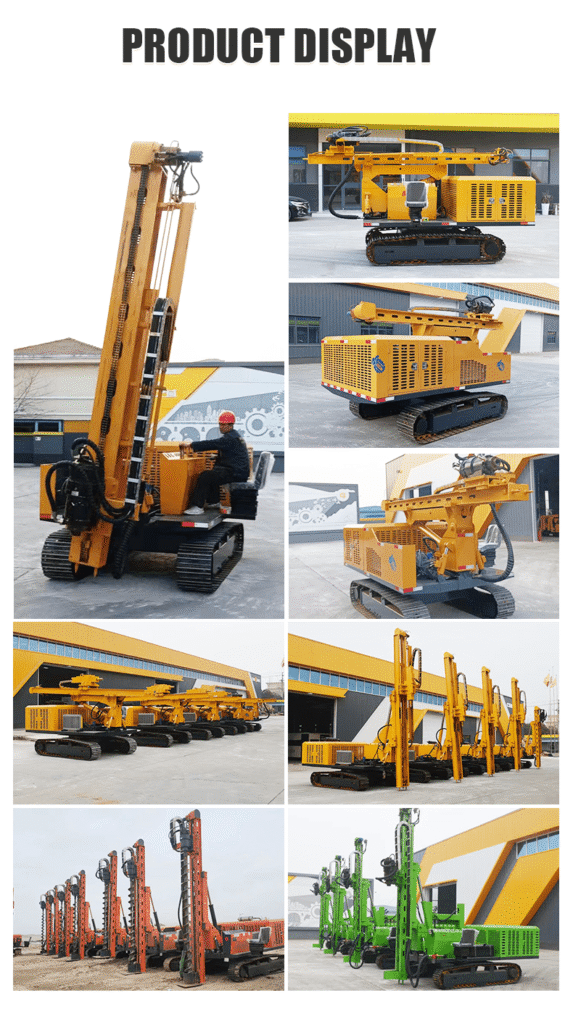

YG Machinery offers two mature models to fit diverse PV construction demands. The hydraulic photovoltaic pile driver focuses on rotary drilling operations. The crawler photovoltaic pile driver adapts to impact piling and harsh working sites. All parameters conform to global solar foundation construction standards.
| Parameter Item | Hydraulic Photovoltaic Pile Driver | Crawler Photovoltaic Pile Driver |
|---|---|---|
| Overall Dimensions | 4700*2100*2800mm | 4700*2200*2800mm |
| Track Shoe Width | 400mm | 400mm |
| Supporting Motor Model | 4108 | 4108 |
| Generator Power | N/A | 88kw Motor |
| Drilling Diameter | 80-500mm | 80-600mm |
| Max Drilling Depth | 0-6m | 0-6m |
| Reducer Torque | 13000n.m | N/A |
| Drill Pipe Rotational Speed | 180r/min | N/A |
| Applicable Rock Hardness | 6-20F | N/A |
| Hydraulic Hammer Flow | N/A | 50-110L/min |
| Impact Frequency | N/A | 350-800BMP |
| Hydraulic System Pressure | 30Mpa | 25Mpa |
| Driving Speed | 0-3km/h | 3km/h |
| Gradability | 30° | 30° |
| Adjustment Angles | Slide 120°, Swing 150°/40° | Full multi-angle piling adjustment |
| Heat Dissipation Design | Standard heat dissipation | Strong wind heat dissipation |
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
If you are unsure which solar piling machine matches your PV project geology and size, we can help. Send us your construction parameters to get a targeted equipment recommendation. Request your free, precise project quotation within 8 hours today.
Working Principle & Technical Features of Solar Piling Machine
This solar piling machine adopts a mature triple-pump hydraulic drive system. The stable oil pump structure provides continuous power for piling operations. Rotary models rely on high-torque reducers to drive drill pipes. They penetrate soil and medium-hard rock layers with steady rotation force.

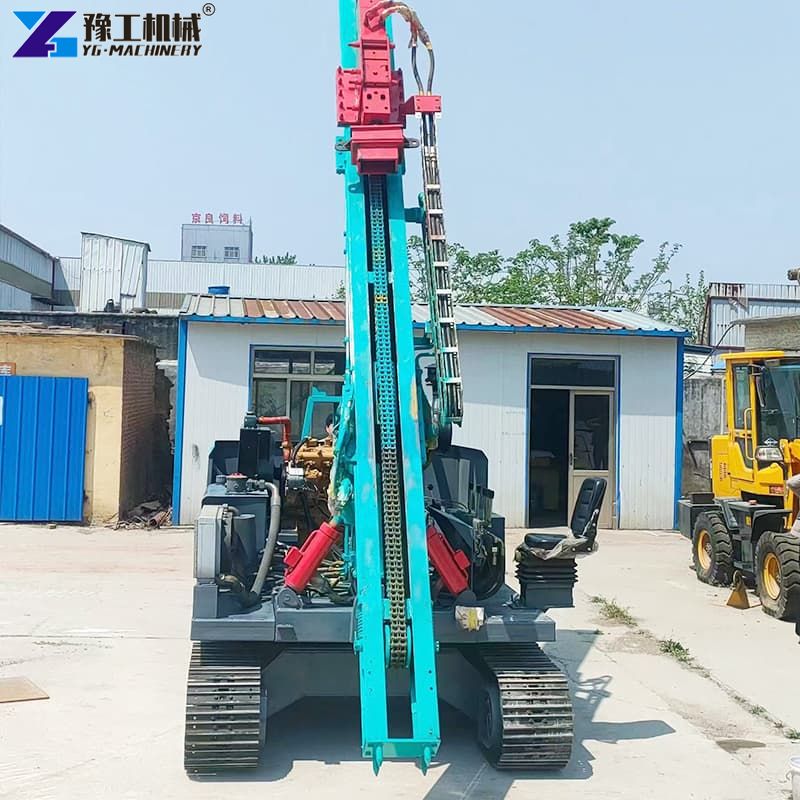

Crawler models use hydraulic hammer impact frequency for rapid pile driving. Operators adjust pressure, speed, and angles via integrated control panels. The flexible crawler chassis adapts to uneven ground and sloped sites. Every working parameter supports precise and standardized PV foundation installation.
Core Advantages of Ground-Mounted Solar Pile Driver
Many solar pile driving companies prefer this equipment for large-scale PV projects. It solves common pain points of traditional piling machinery on job sites. It balances construction efficiency, accuracy, and long-term stability perfectly.
- Powerful Terrain Adaptability: 30° climbing capacity suits hillside, wasteland, and muddy sites.
- Wide Piling Coverage: It supports 80- 600 mm diameter and 0- 6 m depth for diverse pile types.
- High Construction Precision: Multi-angle adjustment ensures vertical and neat pile arrangement.
- Stable Hydraulic Performance: Adjustable parameters fit soft soil and hard rock geology.
- Low Operational Consumption: Optimized pump system reduces fuel and maintenance costs.
- Long Continuous Working Life: Professional heat dissipation avoids overheating in long shifts.
Common Application Scenarios for Photovoltaic Pile Driver for Sale
This versatile piling equipment covers all mainstream photovoltaic construction scenarios. It works well for both centralized power stations and distributed solar projects. It adapts to multiple complex geological and terrain conditions worldwide.

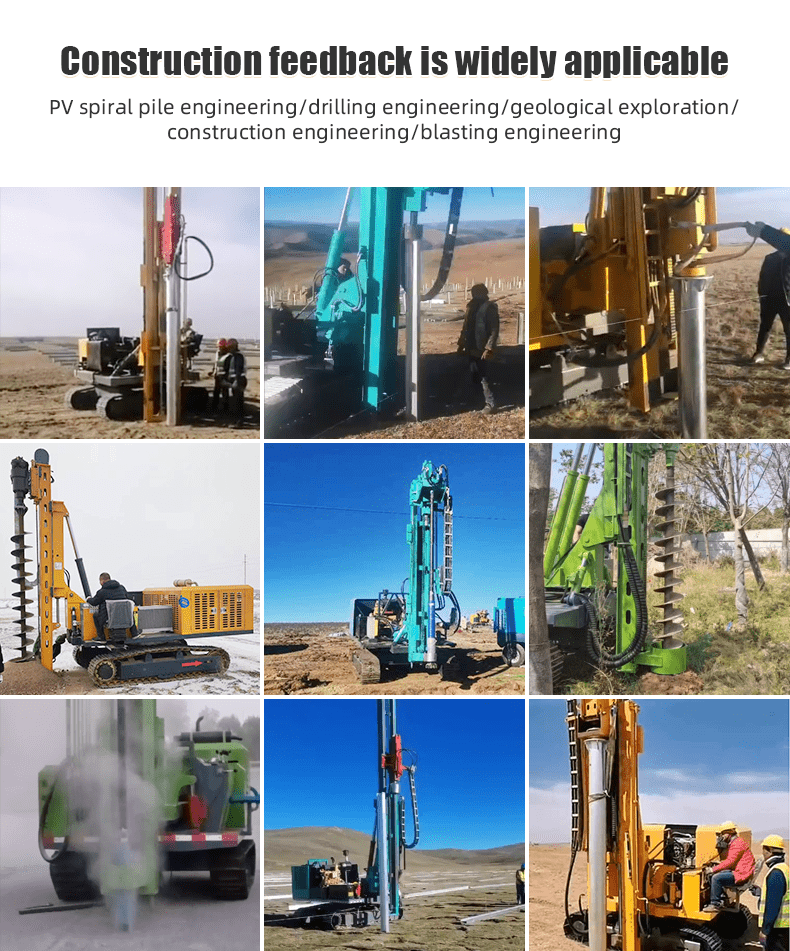

- Large Ground Solar Farms: Mass installation of steel piles and ground screws for power stations.
- Hillside PV Projects: Adaptive climbing design meets sloped terrain construction needs.
- Distributed Residential Solar: Precise piling for small-scale household solar systems.
- Industrial PV Foundation Works: Stable piling for factory and commercial solar facilities.
- Renewable Energy Renovation: Pile reinforcement for aging solar farm foundations.
Authentic Project Case: 15MW Solar Farm Piling in Australia
A professional new energy contractor in Australia undertook a 15MW ground solar project. The local site features dry hard soil and frequent scattered rock strata. The team previously used ordinary piling machines for solar foundation construction.
Old equipment only completed 35 to 45 piles per day with low vertical accuracy. Unqualified piles caused frequent rework and delayed project progress. To improve overall efficiency, the client purchased our crawler solar piling machine.
After formal operation, the daily piling output increased to 95 to 115 standard piles. The pile qualification rate rose from 82% to 99.7%. The adjustable 350-800BMP impact frequency adapted perfectly to Australia’s dry and hard geological conditions.
The equipment’s 30° gradability solved hillside construction obstacles effectively. The project finished 16 days ahead of the scheduled time. The project manager commented: “This solar piling machine greatly cuts our labor and rework costs. Its stable performance makes large-scale PV construction much easier.” The client has ordered two more units for subsequent projects.
FAQs About Solar Piling Machine Selection & Operation
A professional solar piling machine improves piling speed and installation accuracy. It adapts to complex terrains and hard geology common in Australian solar farms. It reduces manual labor and avoids repeated construction rework. Stable hydraulic performance ensures long-term solar foundation safety and consistency.
This ground-mounted solar pile driver features multi-angle adjustment and strong climbing ability. It supports wider piling diameter and deeper drilling depth. Optimized heat dissipation and hydraulic systems support long continuous working hours. It is specially customized for large-scale solar farm pile driving scenarios.
You can choose models based on local geology, pile size, and project scale. Rotary hydraulic models suit soft soil and conventional strata. Crawler impact models fit hard rock, dry soil, and hilly terrain. Our team provides free model matching for global PV projects.
Most professional solar pile driving companies value its stability and high efficiency. The equipment has a low failure rate and low fuel consumption. It delivers high-precision vertical piling to improve project qualification rates. It effectively shortens construction cycles and reduces overall project costs.
The solar piling machine adapts to flat ground, muddy land, and 30° slope hillsides. It works well on ordinary soil, sandy soil, and medium-hard rock. It perfectly matches harsh construction conditions for outdoor solar farm projects.
Yes, the whole machine adopts an integrated intelligent control panel. Operation steps are simple and easy to learn. We provide systematic operation training and detailed guidance. Novice workers can master basic piling work in a short time.
Request Solution for My Business
Why Choose YG Machinery & Get Your Free Custom Quote
YG Machinery specializes in solar foundation construction equipment, serving global solar pile driving companies. Every solar piling machine undergoes strict hydraulic and field testing for stable, low-failure operation. Besides PV piling equipment, we also provide hydraulic rock saws and water well drilling rigs for multi-scene construction demands.
We deliver practical one-stop services to reduce your project costs. Our team provides accurate pre-sales model matching and customized solutions. We support on-site debugging, operator training, remote technical guidance, and long-term spare parts supply.
If you need a cost-effective ground-mounted solar pile driver for PV farm construction, contact us today. Get your tailored project solution and official quotation within 8 hours to speed up your project schedule.
