The portable shot blasting machine is a highly efficient metal surface cleaning tool designed for heavy-duty rust removal, paint stripping, and scale elimination. It works perfectly on bridges, shipyards, pipelines, and workshop fabrications – anywhere metal needs a clean, uniform surface before coating or welding. Operation is simple: just add abrasive like copper slag or garnet, connect an air compressor, and start blasting. Compared to manual grinding or chemical stripping, it is faster, safer, and more cost-effective. If you need fast, cost-effective surface cleaning, contact YG Machinery for more details and a custom quote.
Specifications for YG Portable Shot Blasting
| Model | YG-600 | YG-700 | YG-800 | YG-1000 |
| Volume(m3) | 0.26 | 0.3 | 0.6 | 1 |
| Height | 1150 | 1250 | 1700 | 2000 |
| Sand peening capacity | 5-10(m3/h) | 6-11(m3/h) | 10-12(m3/h) | 10-30(m3/h) |
| Air source configuration | 3(m2/min) | 3(m2/min) | 3.5(m2/min) | 4(m2/min) |
| Control System | Air control | Air control | Air control | Air control |
| Diameter | 600mm | 700mm | 800mm | 1000mm |
How Does the Portable Sandblasting Equipment Work?

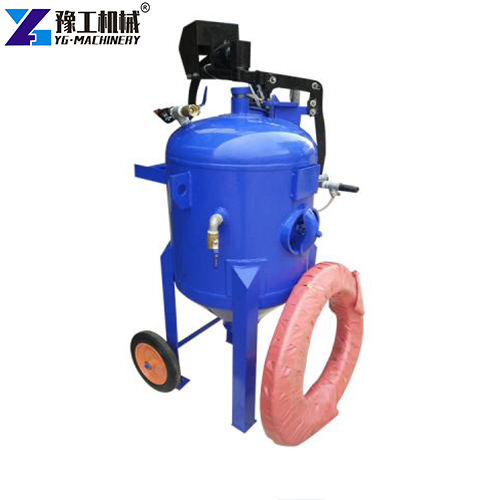

The portable shot blasting machine uses compressed air to propel abrasives. The abrasives strike the metal surface at high speed, achieving uniform cleaning and surface roughening. Common abrasives include quartz sand, garnet, and copper slag. The machine is equipped with a carbon steel pressure tank, an 18-meter blast hose, and a durable blast gun. Compressed air enters the tank, pressurizes the abrasive, and forces it through the nozzle at controlled velocity. The impact removes contaminants while creating an ideal profile for coating adhesion. Unused abrasive falls and can be collected for reuse, reducing waste and operating costs.
Key Advantages of Portable Bead Blaster Machine
1. Significantly Reduce Labor Costs
One portable bead blaster machine does the work of 50–80 workers per day. A single operator can clean 20–30 square meters per hour. Flat surfaces work even faster. It saves wage expenses and speeds up project completion.
2. True Portability – Use It Anywhere
Fixed blasting systems stay in one workshop. Our portable shot blasting machine moves with you. Models from 400 mm to 700 mm come with strong wheels. No permanent workshop or fixed foundation is needed. For large outdoor sites, use a mobile diesel compressor.
3. Simple Operation – Anyone Can Learn
A new worker can learn basic operations in just 30 minutes. No complex programming. No welding. Connect the air hose, add abrasive, and pull the trigger. The automatic control system prevents misoperation.
4. Excellent Safety and Durability
The tank is made of Q235B carbon steel with a thickness of 6–8 mm. The abrasive only removes surface impurities and does not damage the metal structure. With basic maintenance (cleaning the tank and checking hoses), the machine runs reliably for many years.
5. Eco-Friendly and Economical
Most abrasives can be reused many times, reducing material consumption. Only very fine particles need replacement. No chemical waste. No toxic runoff. Maintenance and operating costs are low.
6. Small Footprint
A shot blasting machine plus its auxiliary equipment takes up only 10 square meters of space. It can easily work in tight or confined areas where larger equipment cannot fit.

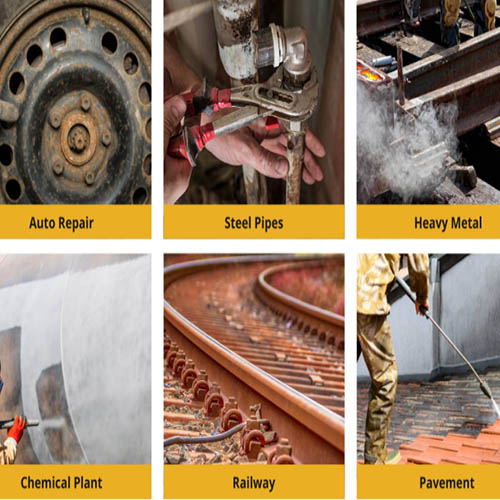

Where Can You Put Portable Blasting Equipment to Work?
- Shipbuilding: Cleaning hulls, decks, and metal components removes rust, old paint, and marine growth quickly, even in tight spaces like ballast tanks. This helps reduce dry dock time and gets vessels back in service faster.
- Bridge Engineering: Removing rust and old coatings from steel structures prepares large steel beams and trusses for repainting, extending the bridge’s lifespan. A portable blasting machine allows workers to access elevated or remote sections without dismantling.
- Workshop Manufacturing: Surface preparation for painting and electroplating creates a uniform anchor profile, ensuring strong adhesion and longer coating life. It also eliminates manual sanding, freeing skilled workers for higher-value tasks.
- Petrochemical and Mining: Cleaning storage tanks, pipelines, and mechanical parts eliminates corrosion and contaminants before inspection, welding, or recoating. Portable blasting minimizes downtime because the equipment moves directly to the job site.
- Construction and Port Engineering: On-site surface treatment of metal components is ideal for cleaning steel piles, crane rails, and dock fittings without moving heavy parts. This reduces logistics costs and speeds up project schedules.
- Additional sectors: Offshore platforms, railway rolling stock maintenance, and agricultural machinery refurbishment—anywhere metal surfaces require cleaning before coating or welding, including hard-to-reach areas. One portable machine can serve multiple job sites, lowering total equipment investment.
Portable Blasting Machine Manufacturer – YG Machinery
YG Machinery is a manufacturer and integrated trading company. We provide customized metal surface cleaning solutions, including dry and wet portable shot blasting machines. Our machines have been exported to the United States, the Philippines, India, Pakistan, Indonesia, and many other countries. Most units can be shipped within three days. We also offer free video training, a one‑year warranty, and wear parts support to keep your operation running smoothly. Whether you need a standard model or a custom configuration, our team is ready to help. If you need a reliable cleaning solution, contact us today for a quote.
