Building utility-scale and commercial solar farms requires efficient foundation installation. Every solar panel rack needs a stable pile anchor in the ground. Manual digging or general drilling methods slow project timelines significantly. A solar pile driver for sale delivers fast, accurate pile installation for solar farm foundations. The machine drives steel or concrete piles deep into the soil to support panel structures. Solar project contractors rely on specialized piling equipment to meet tight construction schedules. YG Machinery builds tracked piling rigs optimized for solar farm foundation work.
| Parameter | Hydraulic Drilling Type | Crawler Hammer Type |
|---|---|---|
| Overall Dimensions | 4700 × 2100 × 2800mm | 4700 × 2200 × 2800mm |
| Drilling / Pile Diameter | 80-500mm | 80-600mm |
| Maximum Drilling Depth | 0-6m | 0-6m |
| Drill Pipe Rotational Speed | 180r/min | – |
| Hydraulic Hammer Flow | – | 50-110L/min |
| Impact Frequency | – | 350-800BPM |
| Hydraulic System Pressure | Triple pump (40/40/32) | 25MPa |
| Motor Model | 4108 | 4108 (88kW generator) |
| Track Shoe Width | 400mm | 400mm |
| Gradability | 30° | 30° |
| Driving Speed | 0-3km/h | 3km/h |
| Slide Tilt Angle | 120° | – |
| Drill Arm Swing Angle | Left/Right 150° | – |
| Reducer Torque | 13000N·m | – |
| Heat Dissipation System | Standard | Strong wind cooling |
| Rock Hardness Compatibility | 6-20F | – |
How Does a Solar Pile Driver for Sale Work?
Drilling and Piling Mechanism

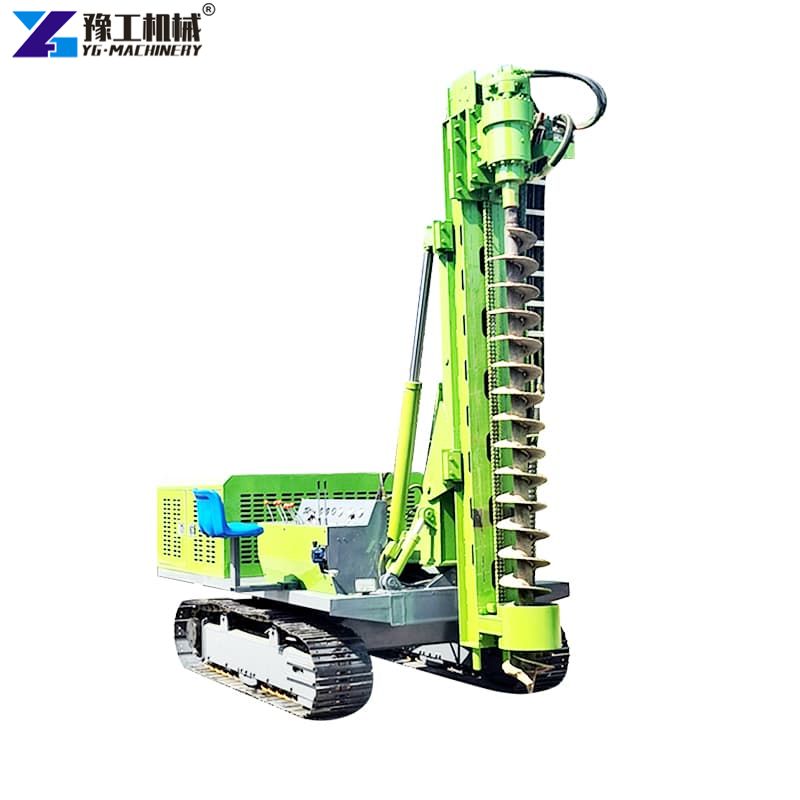

The machine uses either a rotary drill or hydraulic hammer to install pile foundations. The drilling type spins a drill pipe with auger or cutting bits at the bottom. It creates a clean hole in soil or soft rock, then inserts the pile. The hammer type drives pre-fabricated piles directly into the ground using impact force. Both methods deliver fast, consistent pile installation across large project sites.
Hydraulic Power System
A 4108 diesel engine provides power for the entire machine operation. The triple pump hydraulic system delivers steady pressure to all working components. Hydraulic oil flows through the drill head, track drive, and positioning cylinders. The system maintains consistent performance even during long working hours. Strong wind cooling on the hammer model prevents overheating during continuous use.
Tracked Mobility and Positioning
The machine rides on wide 400mm crawler tracks for stable movement across uneven terrain. It can climb slopes up to 30 degrees, covering most solar farm site conditions. The drill arm swings left and right up to 150 degrees for precise pile positioning. The slide mechanism tilts to match different pile angle requirements. The operator controls all functions from a seated cabin with clear visibility.
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
Key Features of Solar Pile Driver for Sale
Two Specialized Machine Configurations
YG offers two machine types to match different ground conditions and project needs.
- The hydraulic drilling type works best in soil, clay, and soft rock ground conditions.
- The crawler hammer type drives steel sheet piles and pre-cast concrete piles efficiently.
- Both models share the same crawler chassis and 4108 diesel engine platform.
- The hammer model includes an 88kW generator for additional onboard power supply.
- Customers select the configuration that matches their local soil conditions.
High Productivity on Solar Sites
These machines install piles much faster than manual or general construction methods.
- Average piling speed reaches 200 to 400 piles per day depending on soil type.
- The 6-meter maximum depth covers most solar farm foundation requirements.
- The compact machine footprint works well on sites with tight row spacing.
- Quick positioning between pile points reduces idle time on the project site.
- Simple operation means contractors can train local crews within a few days.
Built for Outdoor Solar Farm Conditions
The all-steel construction handles rough conditions on open solar farm sites.
- Wide crawler tracks distribute weight evenly on soft or sandy ground.
- The enclosed cabin protects the operator from dust, sun, and harsh weather.
- All hydraulic hoses and components use durable seals for long service life.
- The cooling system maintains stable performance in hot climate regions.
- Daily maintenance points are easy to reach for on-site servicing work.
Solar Pile Driver for Sale Applications
Utility-Scale Solar Farms
Large solar power plants need thousands of pile foundations installed quickly. These machines handle the high volume requirements of 50MW to 500MW solar projects. The tracked design moves efficiently between long rows of panel positions. Contractors can deploy multiple units to parallel work across the entire site. Solar farm pile driving speed directly impacts the overall project completion timeline.
Commercial and Industrial Installations
Medium-sized commercial installations use the same piling technology on a smaller scale. Factory rooftops, car parks, and business campuses all need stable solar foundations. The compact machine size fits into restricted access areas around existing buildings. It can also install ground-mount systems next to commercial buildings. The low ground pressure of tracks protects paved surfaces and landscaping.
Off-Grid and Community Solar Projects
Remote off-grid solar installations need equipment that travels long distances. These piling machines are transportable on standard flatbed trucks to remote sites. They work without external power since they carry their own diesel engine. Community solar projects benefit from this self-contained design capability.
Solar Farm Pile Driving Best Practices
Proper planning and execution of piling work ensures long-term solar farm stability.
Site Survey and Soil Testing
Before starting work, conduct a full geotechnical survey of the site. Soil samples reveal ground composition, density, and bearing capacity at different depths. This data determines the correct pile diameter, depth, and installation method. Rocky ground may need the drilling type, while sandy soil works well with hammer driving.
Pile Alignment and Accuracy
Accurate pile positioning ensures the solar racking system fits perfectly during installation.
- Mark all pile locations using GPS survey equipment before machines arrive on site.
- Use laser leveling tools to verify vertical alignment of each installed pile.
- Check pile height consistency across the site for uniform rack mounting.
- Record the depth and installation time of every pile for quality documentation.
- Correct any misaligned piles immediately to avoid problems during later stages.
Safety and Site Management
Solar construction sites cover large areas and need organized safety procedures.
- Keep the work zone clear of personnel not directly involved in piling operations.
- Inspect hydraulic hoses and connections at the start of each working shift.
- Provide proper personal protective equipment for all workers on the site.
- Follow local noise regulations when scheduling work near residential areas.
- Maintain clear communication between the operator and ground crew at all times.
Real Project Case: 20MW Solar Farm Piling in South America
A local new energy engineering company undertook a 20MW solar farm project in South America. The construction site featured mixed soil and hard rock layers. The team previously used ordinary small drilling machines for solar farm pile driving. Old equipment only completed 30 to 40 piles per day with low precision.
Unstable pile verticality caused repeated rework and delayed progress. Frequent equipment failures also increased maintenance costs. To improve project efficiency and quality, the client purchased our crawler solar pile driver for formal construction.
After equipment deployment, the daily piling output increased to 90 to 110 standard piles. The qualified rate of pile installation reached 99.8%. The 350-800BMP adjustable impact frequency perfectly adapted to local mixed geological conditions. The 30° gradability solved hillside construction obstacles effectively.
The project finished 18 days ahead of the scheduled deadline. The on-site project director gave positive feedback: “This solar piling machine greatly improves our construction efficiency. It reduces rework rate and labor costs, bringing obvious economic benefits to our project.” The client has signed a long-term equipment cooperation agreement for subsequent new energy projects.
Request Solution for My Business
FAQs About Solar Pile Driver Machine Price & Selection
The solar pile driver machine price depends on several key factors. Machine type (drilling or hammer) is the most significant cost variable. Drill diameter range, maximum depth capacity, and engine power also affect pricing. Additional features like cabin climate control or GPS positioning add to the total cost. YG Machinery offers factory-direct pricing with transparent cost breakdowns for each model.
Daily production depends on soil conditions, pile depth, and operator experience. In normal clay or sandy soil, a single machine installs 200 to 400 piles per day. Harder ground with rock layers reduces output to 100 to 200 piles daily. The 6-meter maximum depth covers standard solar farm foundation requirements. Our team can estimate production rates based on your specific site soil report.
Yes, these machines are designed for the uneven ground common on solar farm sites. The 30-degree gradability covers most natural slopes found in solar project areas. Wide tracks provide stable footing on inclined surfaces during piling work. The adjustable drill arm can also compensate for minor slope variations. For steeper terrain, we recommend additional site preparation to create working platforms.
YG Machinery provides comprehensive support from purchase through the full machine lifecycle. We send a technician to your site for assembly and operator training if required. Spare parts are available from stock with fast international shipping options. The warranty covers manufacturing defects for 12-18 months from the delivery date. Our technical team provides remote video support for troubleshooting any operating issues.
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
YG Machinery: Your Trusted Solar Piling Machine Manufacturer
Manufacturing Quality
YG Machinery builds construction and solar equipment for customers in over 80 countries. Our machines use high-grade steel and reputable brand hydraulic components. Every machine passes full load testing and inspection before leaving the factory. We maintain strict quality control at every stage of the production process. The 4108 diesel engine platform is proven reliable across thousands of operating hours.
Customization and Service
We understand that every solar project has different site conditions and requirements.
- Our team helps select the right machine configuration based on your soil type.
- Custom drill rod lengths and hammer sizes are available for special project needs.
- We provide operation manuals in English, Spanish, French, and other languages.
- Spare parts kits are available to support on-site maintenance and quick repairs.
- Video training sessions help your operators use the machine safely and efficiently.
Request Your Free Quotation
Looking for reliable solar foundation equipment for your next project? Contact YG Machinery today for a free detailed quotation and equipment recommendation. Share your project size, soil conditions, and timeline with our team. We will match you with the right machine model and configuration. Email us at admin@yugongheavy.com or message us on WhatsApp at +86 183 3715 2861. Our team responds within 8 hours with pricing, delivery times, and full technical specifications.
