Road line painting equipment is a pavement marking machine that applies traffic lines on roads, highways, factories, parking garages, squares, and airport runways. The two main types are the thermoplastic paint machine and cold spray painting. The thermoplastic paint machine gives you thick, reflective, durable lines that dry in six seconds. Cold spray gives you a thin, non-reflective line that works at zero degrees but lasts only six months. Choosing the wrong type wastes money and causes early failure. If you need reliable equipment for your next project, contact YG Machinery for a custom quote.
Specifications for YG Road Line Painting Equipment
| Painting type | Thermoplastic paint machine | Cold spray painting |
| Coating composition | Synthetic resin, glass beads, coloring pigments, filler materials, additives, etc. | Cold paint for special roads |
| Characteristics | Marking thickness 1.5-1.8mm, three-dimensional sense, strong wear resistance, good reflective effect, fast drying time, 6 seconds open to traffic | Marking thickness 0.3-1.2mm, clear color, no reflective effect, poor wear resistance, easy to fall off, easy to change color, can be constructed at zero temperature, commonly used in the north, slow drying time, 2 hours open to traffic |
| Service life | 2-4 years | Half a year |
| Applicable roads | Urban road, expressway, factory, parking lot, garage, square, airport runway, etc. | Parking spaces, no-parking yellow line areas, passageways, diversion belts, guiding arrows, etc., applicable to northern rural roads and all airports |
| Raw material type | Powdery paint needs to be heated | Liquid paint doesn’t need to be heated |
How the Road Line Marking Machine Works?

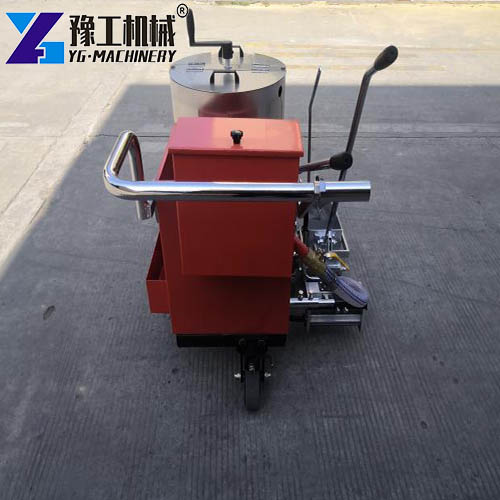

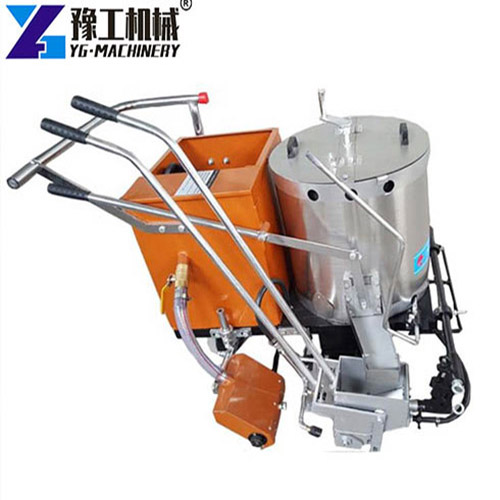

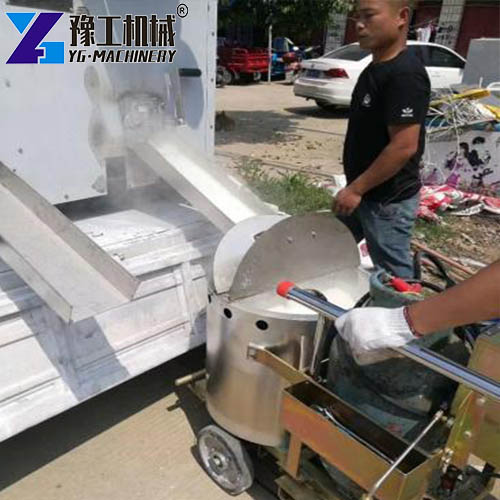

A hot-melt road line painting equipment uses powdered paint that contains synthetic resin, glass beads, pigments, and fillers. The powder is poured into a separate kettle. The kettle heats it to 180-210°C while stirring. Once melted, the liquid paint transfers to the marking machine’s insulated tank. When the operator pushes the machine, a screed box lays the paint onto the pavement at a thickness of 1.5-1.8mm. Glass beads drop from a spreader at the same time and embed halfway into the hot paint. The line hardens in just six seconds. The beads create retroreflection, so headlights bounce back to the driver at night.

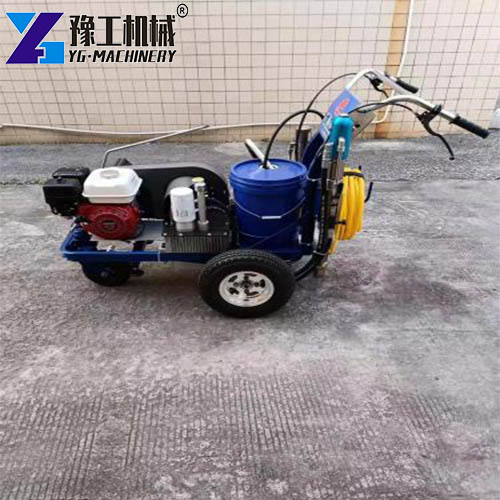

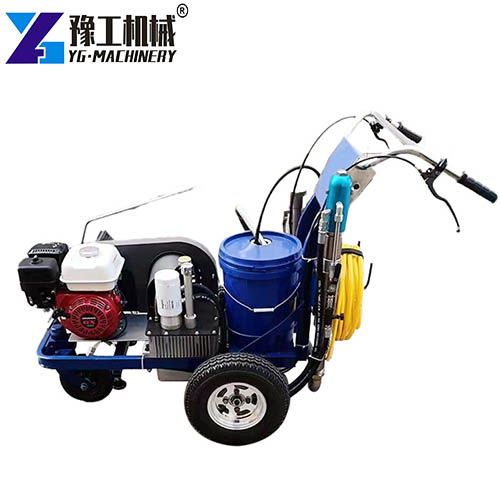

A cold spray machine works differently. Liquid paint is poured directly into the tank. No heating is required. A pump (plunger, hydraulic, or diaphragm) pressurizes the paint to 8-25MPa. The paint travels through a hose and exits a spray gun. The operator walks behind the machine, spraying a line 0.3-1.2mm thick. Drying takes about two hours because the paint relies on solvent evaporation. The machine can work at zero degrees Celsius, which is why northern regions use it for winter jobs.
Key Advantages of Road Marking Equipment
1. Significantly reduce labor costs
One person with a hand-push hot melt machine marks 500-1500 m² per day. A full crew with a hydraulic kettle and two marking machines reaches 2000 m² daily. That equals the output of 20-30 hand painters. You save wage expenses and finish projects faster.
2. Professional line quality
Hot melt lines have a strong three-dimensional shape, straight edges, and even thickness. The half-embedded glass beads maintain reflectivity for years. Cold spray lines are thinner but still clean and uniform. Both types give you a professional result.
3. Simple operation
A new worker learns to run the road line painting equipment in about one hour. Pull the lever to start paint flow; glass beads release automatically. Electric models have basic buttons. Cold spray machines are even simpler: pull the trigger and walk. No complex training required.
4. Durable construction
Tanks are double-layer stainless steel with insulation. Frames are welded steel. With basic cleaning and hose checks, a machine runs for five to eight years. The Q235B carbon steel used in some components adds extra strength.
5. Eco-friendly and economical
Hot melt paint contains no solvents. Leftover material can be reheated and reused. Cold spray paints can be water-based with low VOCs. Glass beads are inert and non-toxic. You reduce waste and comply with environmental regulations.
6. Small footprint
A road line marking machine plus its kettle takes up very little space. It can work in tight areas like underground garages or narrow factory aisles where larger equipment cannot fit.
What Is Road Marking Equipment Used For?
- Urban roads and expressways: Hot melt lines with 1.5‑1.8mm thickness handle heavy traffic and snowplows. Service life of 2‑4 years matches repaving cycles.
- Factories and parking lots: Hot melt resists oil and wheel abrasion. Cold spray works for stall lines that get repainted every year.
- Airport runways and taxiways: Only hot melt meets aviation standards. The line must be thick, reflective, and gap‑free.
- Northern rural roads and all airports: Cold spray works at zero degrees Celsius. Typical uses include parking spaces, no‑parking yellow lines, passageways, diversion belts, and guiding arrows.
- Schools and sports courts: Bright colors are possible with both types. Hot melt lasts longer; cold spray costs less for courts that get resurfaced often.
Get Your Road Marker Machine Price from YG Machinery
YG Machinery is a manufacturer and trading company that supplies road line painting equipment to the United States, the Philippines, India, Pakistan, Indonesia, and many other countries. Custom orders (special widths, different heating systems, branded colors) are welcome. If you need a reliable line marking machine for sale that balances quality, cost, and technical support, get your road marker machine price from YG Machinery.
