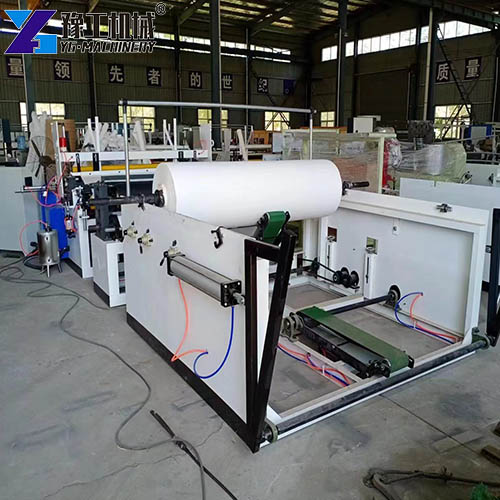

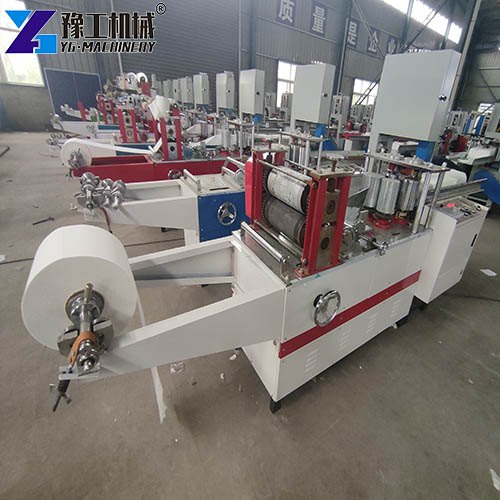

A tissue manufacturing machine turns large jumbo paper rolls into finished tissue products in one continuous process. It handles embossing, folding, cutting, and stacking automatically without manual intervention. These machines find wide use among tissue converters, hotels, restaurants, and catering supply companies. The equipment runs at high speed, delivers consistent quality, and reduces labor costs significantly. If you are looking for a dependable napkin-making machine for your production line, contact YG Machinery today for a custom quote.

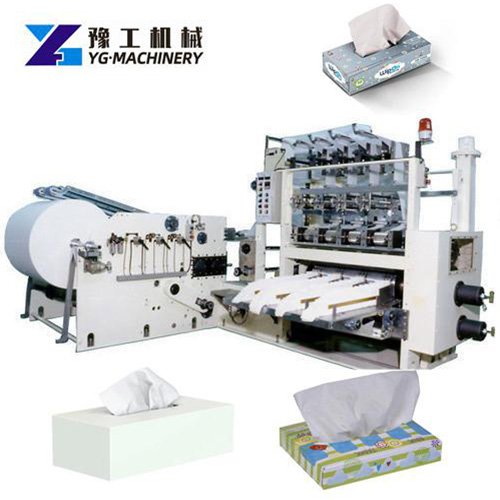

Technical Specifications for Napkin Making Machine
| Roller surface length | 1080 / 1270 / 1480 / 1780 / 2100 mm |
| Effective length | 1060 / 1250 / 1460 / 1750 / 2080 mm |
| Fan power | 15 / 15 / 18.5 / 18.5 / 22 kW |
| Main motor power | 3 / 4 / 4 / 5.5 / 7.5 kW |
| Folding speed | 500 1000 sheets per minute per row |
| Max base paper diameter | ≤1200 mm |
| Core diameter | 3 inches (76.2 mm) |
| Power supply | 380V / 50Hz |
How a Tissue Manufacturing Machine Operates?
The machine starts with an unwind stand that holds the parent paper roll. Paper travels through a tension control system to keep feeding stably. Then it passes through embossing rollers. Steel-to-wool roll embossing creates clear patterns. You can customize the pattern design according to your brand. After embossing, the paper goes into the folding section. The folding device positions reliably and produces uniform fold sizes. It can make quarter folds, half folds, or C folds based on your product needs. Next, a rotary knife cuts the paper to the preset length. A counting sensor tracks each sheet. When the count reaches the set number, the machine automatically divides the stack and sends it out. An optional printing unit can add one or two color logos onto the napkins. The whole process runs continuously at 500 to 1000 sheets per minute per lane.

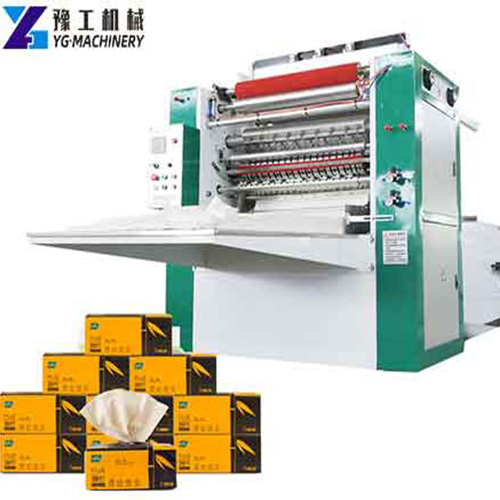

Why Choose a Tissue Paper Production Machine?
1. High automation
The tissue manufacturing machine reduces manual work from unwinding to final stacking. Fewer workers mean lower operating costs. Once the line is running, one person can oversee the whole process with minimal effort.
2. Imported photoelectric sensors
They ensure precise action and smooth operation. No missed counts or misfolds. The sensors react instantly to paper position changes, so the machine rarely needs readjustment.
3. Imported frequency converter
Speed control response is sensitive and accurate. You can adjust production speed easily to match different paper grades. This also helps reduce energy consumption during lighter production loads.
4. Automatic stacking device
It stacks according to the preset sheet number. A high-precision induction switch controls the process. Then the stack transfers directly to the conveyor belt of a packaging machine.

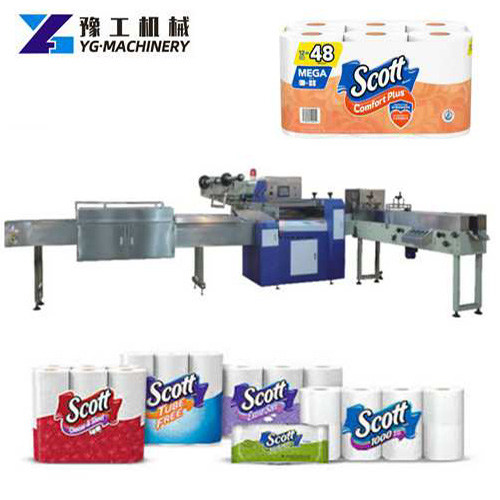

5. Fully automatic roll film packaging
A turntable forming system makes the finished product packaging more square and consistent. The wrapped bundles look neat on store shelves and are easier to pack into cartons later.
6. Photoelectric tracking for film feeding
The film lowers only when material arrives. No idle running, so you save film material. This feature can cut film waste by a noticeable margin over a full shift.
7. Jam stop function
When a jam occurs, the machine stops immediately. This protects the equipment and reduces material waste. It also prevents damage to the embossing rollers and cutting knives, saving you repair costs.
8. Adjustable packaging module
Changing product specifications is quick and easy. You can switch between different napkin sizes or bundle counts in under ten minutes without special tools.
Applications of a Tissue Manufacturing Machine
- Restaurants and cafes: They need square napkins and long table napkins for daily service. A napkin-making machine produces them in bulk at low cost.
- Hotels and catering companies: High-quality embossed napkins with logos create a premium experience. The machine can add one or two color printing to match the brand identity.
- Hospitals and clinics: Facial tissues and sanitary napkins are used in large volumes. Automated production ensures hygiene and consistency.
- Household tissue brands: Small and medium tissue converters use these machines to supply supermarkets and convenience stores.
- Event and party supply businesses: Custom printed napkins for weddings, birthdays, and corporate events. The machine handles short runs with easy specification changes.
- Industrial cleaning: Heavy-duty paper wipes and shop towels can also be produced with modifications to the embossing and cutting system.

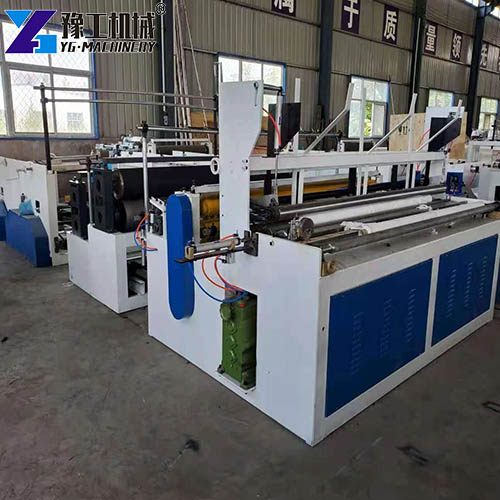

Get Your Toilet Roll Making Machine Price From YG
YG Machinery is a professional manufacturer of tissue converting equipment. We build reliable tissue manufacturing machines that save energy, run with high automation, and require few workers. Our machines have been exported to the United States, Russia, Portugal, Spain, Chile, Canada, the Netherlands, Saudi Arabia, Brazil, and many other countries. Fast shipping is available. We offer a one-year warranty on the main components. A free mold or embossing roller set comes with each machine. Contact us now and tell us your required output, paper size, and printing needs. We will send you a free quote and a detailed proposal within one business day.
