Floor flatness directly affects building quality and long-term durability. An automatic laser screed machine delivers consistent precision across large concrete pours. It removes guesswork from leveling and cuts project time significantly. If your team still relies on traditional straightedge methods, this machine can change how you work.
Automatic Laser Screed Machine Technical Specifications
YG Machinery offers two automatic laser screed models to cover different project scales.
| Parameter | YG-CL300 | YG-ZP30 |
|---|---|---|
| Engine Model | Briggs & Stratton / LONCIN / Honda 690 | Yanmar 4TNV94L |
| Engine Type | Gasoline, air-cooled, 4-stroke, twin-cylinder | Diesel |
| Engine Power | 22KW / 30HP | 35.5KW / 48HP |
| Fuel Capacity | 20L | 100L |
| Hydraulic Oil Capacity | 37L | 150L |
| Laser Transmitter | Swiss Leica / Tower (optional) | American Tempo |
| Laser Receiver | Swiss Leica / Tower (optional) | German Mopar |
| Control Effect | Plane, slope, double slope (3D) | Flat, inclined, double slope (3D) |
| Control Method | Microcomputer laser scanning | Microcomputer laser scanning |
| Paving Method | Hydraulic stirring cage paving | Hydraulic Cage Paving |
| Vibration Method | Hydraulic vibration / 2000N | Hydraulic vibration |
| Vibration Plate Width | 2500mm | 3100mm |
| Leveling Thickness | 50-300mm | 100-450mm |
| Telescopic Length | – | 6000mm |
| Travel Speed | 0-4km/h | 4-8km/h |
| Body Size | 3250×2850×1320mm | 5350×3650×2040mm |
| Body Weight | 900kg | 5500kg |
Both models use microcomputer laser scanning for real-time surface monitoring. The YG-CL300 suits small to mid-size projects with gasoline engine flexibility. The YG-ZP30 handles large industrial jobs with diesel power and a telescopic arm.
How Automatic Laser Screed Technology Improves Your Work

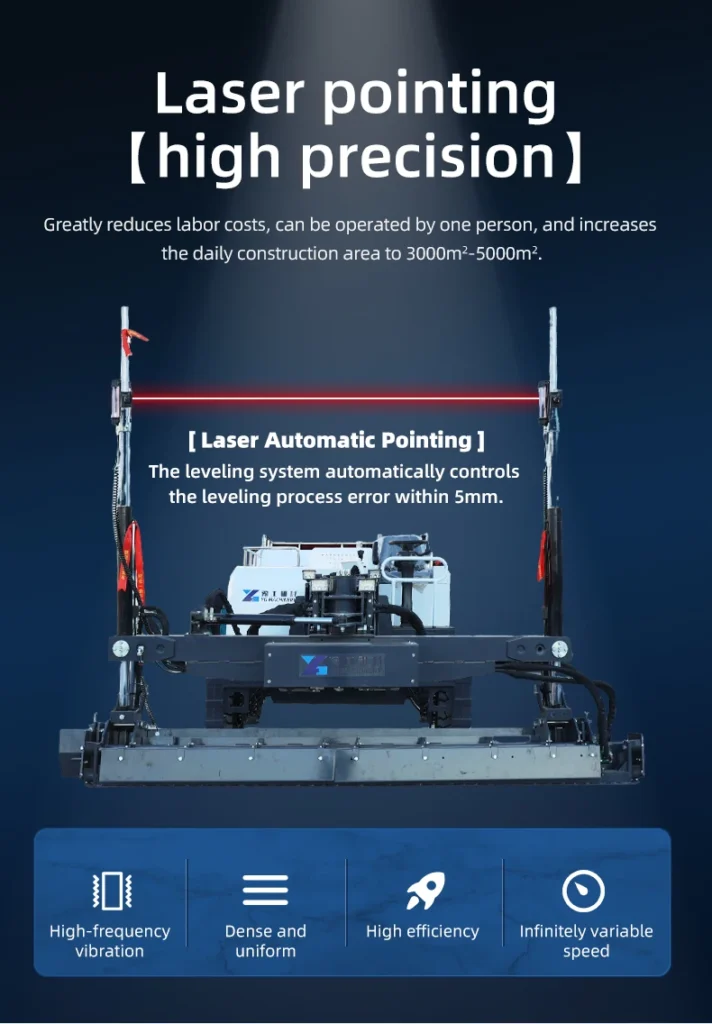

The microcomputer laser control system maintains accuracy across large areas. It continuously scans the reference plane and adjusts the screed head in real time. This eliminates human errors that cause uneven surfaces.
The hydraulic vibration system consolidates concrete as the machine moves forward. This process removes air pockets and increases floor density. The result is a stronger, more durable surface with fewer weak spots.
A ride-on laser screed machine reduces labor needs significantly. Traditional methods require multiple workers with straightedges and hand screeds. One or two operators can cover far more area with consistent quality throughout each shift.
The YG-ZP30 telescopic arm extends working reach by up to 6000mm. This lets operators cover wide areas from fewer machine positions. It is particularly useful for warehouses and cold storage facilities where efficiency matters most.
Both models feature solid anti-skid tires for reliable traction. These tires resist punctures on rough construction sites. The YG-ZP30 adds hydraulic four-wheel drive for extra grip on slopes. A ride-on laser screed machine like the YG-ZP30 keeps operators comfortable during long shifts.
The laser control system supports multiple surface profiles. It can handle flat surfaces, single slopes, and double slopes. This flexibility makes the machine useful for parking garages, ramps, and drainage areas. Operators set the desired profile once, and the machine follows it precisely.
Why Choose a Laser Concrete Screed Machine for Large Projects
Large concrete floors demand accuracy that manual methods struggle to deliver consistently. A laser concrete screed machine reads elevation data electronically and makes automatic corrections. This produces flat, uniform surfaces across thousands of square meters every time.
Compared to traditional screeding, laser-guided machines reduce human error by over 90%. They also cut labor costs since fewer workers are needed on site. The speed advantage is significant too. A single machine can cover 500 square meters per hour or more. Actual speed depends on the model and site conditions. Considering the labor savings and high efficiency, the concrete laser screed machine price offers an outstanding return on investment, making it cost-effective even for mid-size projects.
These machines work well in many different environments:
- Logistics warehouses: Flat floors support narrow-aisle racking and heavy forklift traffic
- Manufacturing plants: Precise surfaces ensure equipment alignment and smooth production flow
- Commercial construction: Airports, shopping malls, and hospitals require large-scale flat floors
- Infrastructure projects: Road surfaces and bridge decks benefit from laser-controlled leveling
- Cold storage facilities: Temperature-controlled warehouses need flat floors for safe operation
- Parking structures: Multi-level garages require consistent slopes for proper drainage
Real Project: Automatic Laser Screed in a Monterrey Cold Storage Facility
A mid-size flooring contractor in Monterrey, Mexico, won a major contract. The project involved pouring floors for a new cold storage warehouse. The facility covered 15,000 square meters with strict flatness requirements. The client specified tight tolerances for forklift operation and racking installation.
The contractor had previously used traditional screeding methods. But the project scale and precision demands made manual work impractical. They rented two YG-ZP30 units from a regional equipment dealer.
The telescopic arm allowed wide working passes across each zone. The laser control system maintained consistent accuracy throughout the entire space. The hydraulic vibration consolidated concrete effectively during each pass. Operators completed the full floor pour within five working days.
Flatness test results came back within specified tolerances across all areas. The client was very satisfied with the floor quality. They recommended the contractor to two other businesses in the area. The contractor noted that the floors showed no cracking. The surfaces held up well even after heavy forklift traffic began.
This project helped the contractor establish a strong reputation for industrial flooring work. They now plan to expand their equipment fleet. More warehouse and cold storage projects are coming in from the region.
YG Machinery Service and Support
YG Machinery provides complete support for every automatic laser screed purchase. Our pre-sale team helps you select the right model based on your project requirements and provides competitive concrete laser screed machine price quotes tailored to your budget. We also offer custom configurations for specific job site conditions.
Every machine undergoes thorough inspection before shipment. After delivery, we provide technical guidance on machine operation and daily maintenance. Our spare parts supply ensures quick replacement when needed. Remote troubleshooting support helps operators solve issues without waiting for on-site visits.
We also provide video tutorials and operator training materials. These resources help your team get up to speed quickly. YG Machinery ships worldwide with reliable logistics partners. Most orders dispatch within 5 to 10 working days after payment confirmation.
FAQs About Ride-on Laser Screed Machine
The YG-CL300 handles 50- 300 mm thickness. The YG-ZP30 covers 100- 450 mm. Both models adjust depth settings easily on site. Choose based on your typical pour depth requirements.
The YG-CL300 offers Swiss Leica or Tower transmitter options. The YG-ZP30 comes with an American Tempo transmitter and German Mopar receiver. Both deliver reliable accuracy for large-area leveling.
The YG-ZP30 arm extends reach by 6000mm. This allows operators to cover more area from fewer positions. It is especially useful for large warehouse floors. Fewer repositioning cycles mean faster project completion.
Price depends on the model and configuration. The YG-CL300 suits smaller projects at a lower price point. The YG-ZP30 fits large industrial jobs with its telescopic arm and diesel power. Contact YG Machinery with your specific requirements for an accurate quote.
The concrete laser screed machine price mainly depends on the engine type (gasoline vs. diesel), laser system configuration (Leica, Tempo, etc.), machine size, and features like telescopic arm reach. Contact our team for precise quotes based on your project scale.
