This real‑world case study features a professional photovoltaic pile driver deployed in Australia. A local renewable EPC contractor undertook a large ground‑mount solar farm project. Complex mixed soil and strict construction deadlines severely limited traditional piling methods. After equipment comparison and site evaluation, the client chose YG Machinery piling solutions. This article displays real project background, field challenges, customized solutions, construction workflow, operational effects, and verified client feedback.
Key Takeaways
- Proven Australian Field Performance: High-power crawler photovoltaic pile driver customized for Queensland’s hard-clay, sandy, and weathered rock soil conditions.
- Significant Efficiency Boost: Achieves fast penetration, precise pile verticality, and zero machinery breakdown—significantly reducing rework and labor costs for utility-scale solar farms.
- End-to-End Delivery & Compliance: Full-process support from factory pressure testing and certified biosecurity packaging to fast 55-day total fulfillment and local commissioning.
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
Project Background for Australian Ground‑Mount Solar Farm Construction
Australia continues rapid expansion of utility‑scale solar farm infrastructure. This project is located in rural Queensland, a core area for Australian renewable energy development. The construction site covers a wide area with undulating terrain. The ground consists of mixed clay, sandy soil and scattered weathered rock.
Thousands of galvanized steel foundation piles needed uniform installation. Local Australian construction codes and grid connection rules require precise piling depth and verticality. Traditional manual tools and small rental machines failed to meet efficiency and quality standards. The client began searching for a reliable pile driver for solar projects to stabilize on‑site construction progress.
Professional tip: Most Australian rural solar sites contain mixed hard and soft soil. Always confirm geological conditions before selecting solar piling equipment.
Key Customer Pain Points Before Using Photovoltaic Pile Driver
The EPC contractor faced multiple technical and schedule barriers with old piling methods. Unstable equipment performance caused frequent delays and hidden quality risks. These problems increased labor costs and threatened project acceptance.
- Mixed gravel and rock soil caused slow penetration and frequent tool jamming
- Traditional piling produced inconsistent pile verticality across the site
- Rental solar piling machines suffered high failure rates on hard ground
- Low daily piling output could not match tight solar farm milestone schedules
- Excessive manual intervention raised labor costs and safety management pressure
Local rental markets could not provide enough stable solar pile drivers for sale for large‑scale continuous construction. The client needed dedicated solar pile installation equipment optimized for Australia’s complex terrain.
Professional tip: Unqualified piling verticality will cause solar rack installation errors. Standardized hydraulic piling equipment effectively avoids rework.
Custom Photovoltaic Pile Driver Solution for Australian Solar Farms
YG Machinery’s engineering team analyzed site geology, pile specifications, and construction intensity. We recommended the crawler photovoltaic pile driver for this Queensland solar project. This model adapts perfectly to undulating terrain and mixed hard soil conditions.
The machine is equipped with an 88kw high‑power engine and an optimized hydraulic hammer system. It supports adjustable impact frequency to protect thin‑wall steel piles. The flexible boom swing angle adapts to dense solar array layouts. The crawler traveling system ensures stable movement on slopes and uneven ground.
Professional tip: Adjust hydraulic impact frequency according to soil hardness. Lower frequency protects piles in soft soil; higher frequency accelerates penetration in rocky layers.
Photovoltaic Pile Driver Full Technical Parameters
| Item | Hydraulic photovoltaic pile driver | Crawler photovoltaic pile driver |
|---|---|---|
| Overall dimensions | 4700*2100*2800mm | 4700*2200*2800mm |
| Track shoe width | 400mm | 400mm |
| Motor model | 4108 | 4108 |
| Generator power | — | 88kw |
| Drilling diameter | 80‑500mm | 80‑600mm |
| Drilling depth | 0‑6m | 0‑6m |
| Reducer torque | 13000n.m | — |
| Mainstream pump | triple pump | — |
| Oil pump | 40/40/32 | 40/40/32 |
| Drill pipe rotational speed | 180r/min | — |
| Gradability | 30° | 30° |
| Rock hardness | 6‑20F | — |
| Slide tilt angle | 120° | — |
| Drill arm swing angle | left and right 150° | left and right 150° |
| Slide swing angle | left and right 40° | — |
| Driving speed | 0‑3km/h | 3km/h |
| Hydraulic hammer flow | — | 50‑110L/min |
| Impact frequency | — | 350‑800BMP |
| Hydraulic system pressure | — | 25mpa |
| Strong wind for heat dissipation | — | yes |
Pile Driver for Solar Projects: Production, Shipment and Commissioning
All photovoltaic pile driver and solar pile installation equipment passed strict factory testing before export. Each unit completed hydraulic pressure testing, hammer impact testing, and continuous running inspection. Machines were packed in fumigated wooden cases to meet Australian biosecurity standards.
The equipment was shipped from China Qingdao Port to Brisbane Port. Our technical team provided remote one‑on‑one guidance. Local workers completed machine assembly, hydraulic connection, pressure debugging and safety testing. Operators received professional training before official construction.
Full Project Timeline
| Project Phase | Duration |
|---|---|
| Technical confirmation & order arrangement | 4 working days |
| Equipment production & factory inspection | 7 working days |
| Ocean freight to Australia Brisbane Port | 24 days |
| Customs clearance & site delivery | 5 working days |
| Installation, commissioning & operator training | 1 working day |
Professional tip: Australian customs strictly checks wooden packaging. Use formal fumigation certification to avoid clearance delays.

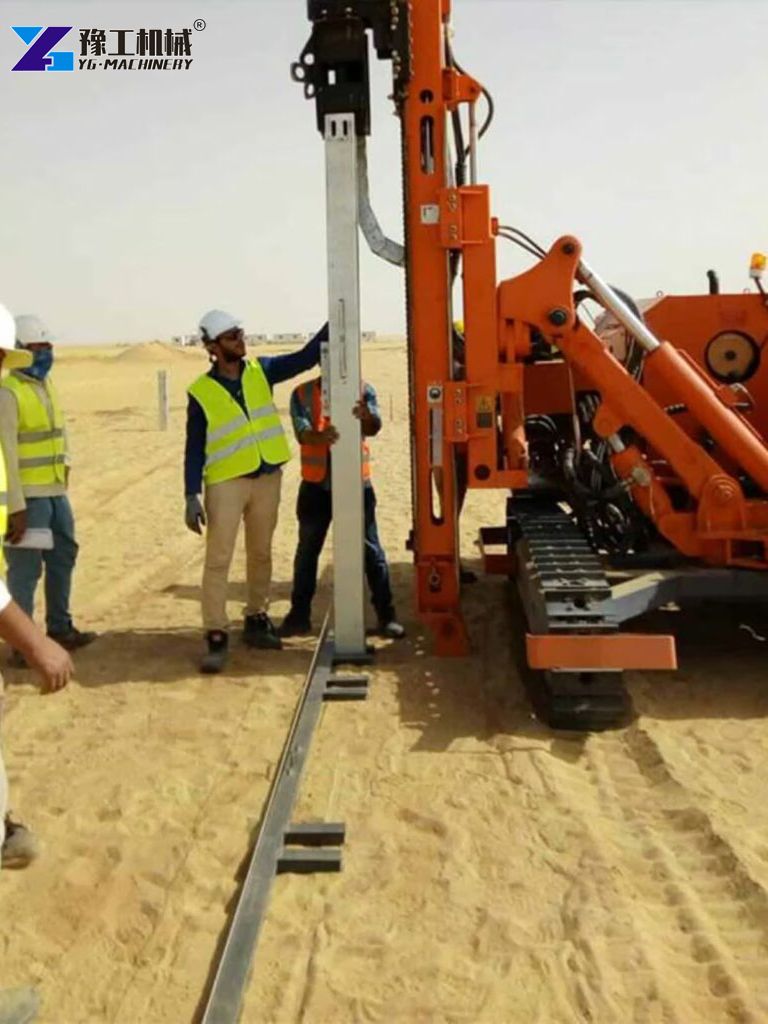

On‑Site Construction Workflow and Practical Operation Effects
After commissioning, the photovoltaic pile driver started formal foundation construction. The team adopted standardized piling procedures to ensure uniform foundation quality for solar farm projects.
- Mark precise pile positions according to solar farm survey data
- Drive crawler machine into position and level the chassis
- Adjust boom angle to ensure vertical piling tolerance
- Start hydraulic hammer and complete graded penetration
- Check depth and verticality after each pile installation
- Move equipment forward for continuous batch piling work
After weeks of continuous operation, the photovoltaic pile driver showed excellent stability on complex soil. Daily piling volume increased significantly compared with traditional methods. Pile verticality fully met Australian solar engineering standards. No equipment failures or safety incidents occurred during the whole construction period.
Professional tip: Use staged piling on hard soil layers. Avoid long‑time high‑frequency impact to extend hydraulic system service life.
Verified Customer Feedback and Project Core Achievements
The Australian EPC contractor provided authentic on‑site feedback after long‑term practical use. The photovoltaic pile driver solved their most critical construction bottlenecks.
Thomas Bennett, Construction Manager, Australian Renewable EPC: “We used multiple rental pile drivers for solar projects before. Most machines struggled with our gravel-and-rock mixed ground. YG’s crawler photovoltaic pile driver runs stably all day long. Piling accuracy is consistent, and we have greatly reduced rework. This equipment helped us finish the solar foundation project ahead of schedule.”
The stable performance of this photovoltaic pile driver reduced downtime and labor dependence. It helped the contractor avoid schedule penalties and improve overall project profitability. The reliable equipment performance also enhanced their market reputation in local renewable bidding projects.
Request Solution for My Business
Key Project Achievements
- Stable piling output adapted to Australian mixed soil and rocky terrain
- Greatly improved daily construction efficiency and shortened project cycle
- Guaranteed precise pile verticality and depth for solar foundation standards
- Reduced manual labor input and lowered overall construction costs
- Zero safety accidents and equipment failures during foundation construction
Industry Standard & Australian Solar Construction Compliance Guide
Australian solar construction follows strict local civil and renewable industry compliance standards. Ground foundation piling must meet uniform depth, verticality and load‑bearing requirements. Non‑standard piling work will delay grid approval and final project handover.
Most regional Australian solar sites feature unstable mixed soil and sloped terrain. Ordinary small piling machines fail to maintain consistent precision under these harsh conditions. Professional solar pile installation equipment solves compliance risks by delivering stable, repeatable piling results every shift.
Modern Australian EPC firms prioritize machine stability, low failure rates, and full after‑sales support. A reliable photovoltaic pile driver directly reduces project compliance risks, avoids construction rework, and ensures long‑term solar rack structural safety. Choosing a purpose‑built solar pile driver for sale helps contractors meet local renewable construction standards effortlessly.
Get Custom Photovoltaic Pile Driver Solution for Your Solar Project
If you are planning ground‑mount solar farm construction in Australia or other regions, contact YG Machinery for professional solutions. Share your site geology, pile size, and construction requirements. Our engineering team will provide optimized photovoltaic pile driver selection and a free quotation within 8 hours.
