A hydraulic concrete pile breaker is a machine that breaks concrete pile heads using hydraulic pressure. It mounts directly onto an excavator. The hydraulic system pushes alloy chisels inward from multiple directions. This cracks the concrete horizontally while keeping the steel reinforcement completely intact. The machine is commonly used in building foundations, bridge construction, and road projects. If you need a faster and cleaner way to remove pile heads, contact YG Machinery for the right model.
Specifications for YG hydraulic pile breaker
| Module Number(PCS) | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight(KG) | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range(mm) | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator(T) | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
Working principle of a hydraulic concrete pile breaker

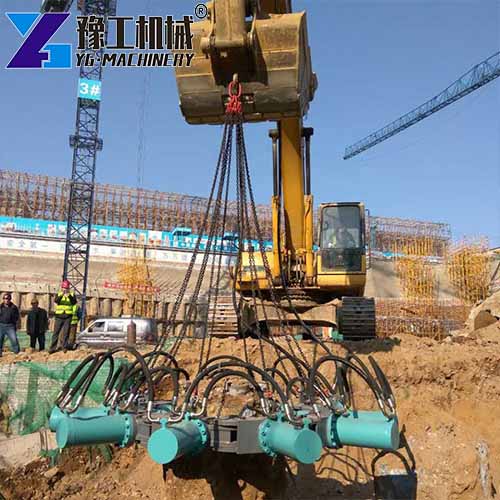

The working principle uses a simple fact about concrete. Concrete is strong under compression but weak under tension. The operator lowers the machine over the pile head using the excavator arm. Once it reaches the correct height, the operator activates the hydraulic flow from the cab. High-pressure oil pushes all cylinders at the same time. The alloy chisels squeeze the pile body inward from all sides.

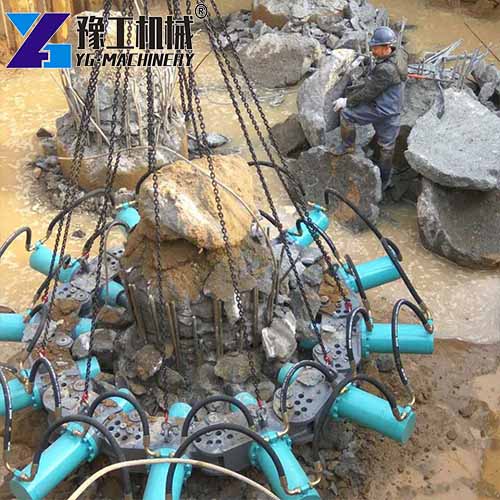

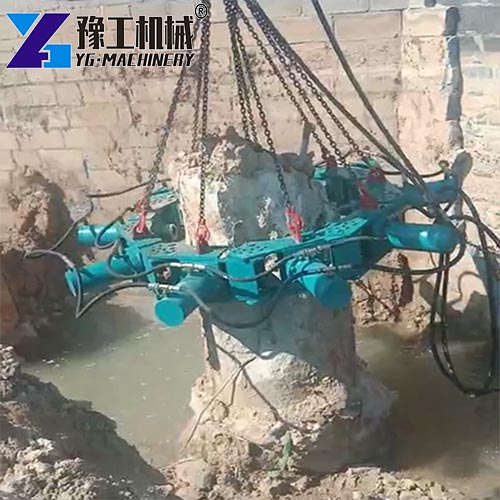

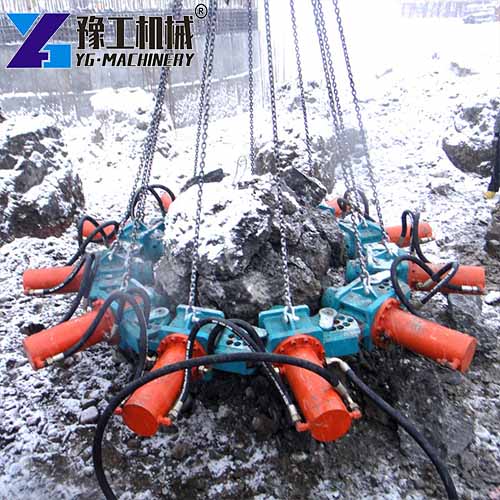

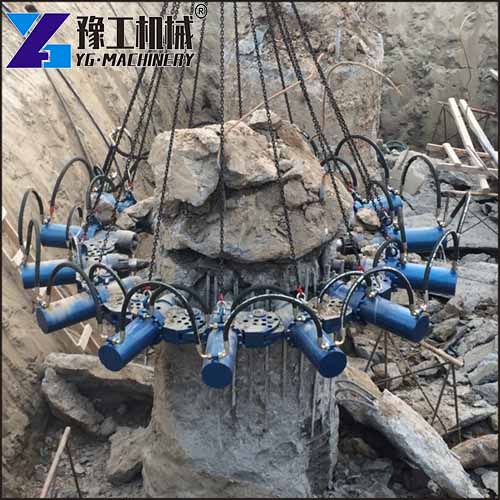

Because concrete’s tensile strength is only about one-tenth of its compressive strength, the multi-point radial pressure creates a sudden stress concentration. The concrete cracks instantly along a horizontal line. The broken concrete block is then lifted away with the machine. The steel cage stays clean and undamaged. This method avoids the microcracks that often come from repeated impact of jackhammers. It works on precast piles, square piles, and cast-in-place piles.
What Are the Advantages of Using a Pile Breaker?
Speed is the first advantage
Traditional breaking with three workers and jackhammers takes about 40 minutes for an 800 mm pile. This hydraulic concrete pile breaker does the same job in under three minutes. One excavator can handle 150 to 200 piles per day. The construction cycle is cut by more than half.
Cost goes down significantly
The machine runs off your existing excavator hydraulic system. No extra power pack is needed. Labor cost drops by about two-thirds because only one operator and one helper are required. You also save on rebar repair and concrete cleanup.
Quality improves
The chisels never strike the steel directly. The reinforcement cage remains perfect. The cut surface is flat with an elevation error under 3cm. No hidden cracks below the cut line.
Safety is much better
The operator works from inside the cab using a remote control. No flying chips, no hand-arm vibration, no hammer injuries.
Applications of this hydraulic concrete pile breaker
- Building foundations: High-rise buildings, factories, warehouses, and logistics centers all need fast pile head removal. The machine ensures uniform breaking height, which is critical for load-bearing pile caps and ground beams.
- Bridge engineering: Piers and abutments require clean, accurate pile breaks. The machine delivers consistent height across dozens of piles, even in tight cofferdams or over water.
- Municipal roads: Elevated highways, retaining walls, and soldier piles benefit from the speed and precision. The machine reduces traffic disruption because pile preparation is completed in minutes per pile.
- Ports and wharves: Concrete breaking inside large steel pipe piles is done safely with remote control. The machine also works on mooring dolphin piles and fender system foundations without damaging steel casings.
- Wind turbine foundations: Turbine bases demand high accuracy to meet design specs. The machine provides that. It handles both onshore and offshore wind farm piles, from monopile transition pieces to multi-pile gravity bases.
- Railway and subway construction: Processes rail bridge, sound barrier, and overhead line piles. Fits limited headroom and avoids vibration to adjacent tunnels or utilities.
- Industrial plants and heavy equipment foundations: For crusher, mill, and press bed foundations with large‑diameter piles. Consistent height simplifies rebar connections across hundreds of piles.
- Underground parking and basement construction: When piles are cast inside slurry walls or secant pile walls, the machine breaks concrete flush to the cut-off level without damaging the wall reinforcement. =
Why choose a pile cutting machine for your site?
A hydraulic concrete pile breaker adapts easily to different site conditions. Change the number of modules to fit pile diameters from 400 mm to 2500 mm. If your site has both 600 mm and 1200 mm piles, just adjust the module combination. No need for two separate machines.
A hydraulic quick coupler attaches the unit to your excavator in five minutes. When moving between sites, the machine travels with the excavator on the same trailer. It works on precast piles, square piles, and cast-in-place piles. Bridge projects with large diameter piles use the 18 module model without trouble.
Why choose YG Machinery as your pile breaker machine manufacturer?
YG Machinery is a professional manufacturer of hydraulic concrete pile breakers. Our machines use high-strength steel and wear-resistant alloy chisels. Key hydraulic components come from trusted global brands. Every unit is pressure tested. We offer a 12-month warranty, with wear parts in stock for fast delivery. Contact YG with your pile diameter, excavator model, and daily pile count. We will send you the right solution and a fair price within 24 hours.
