Struggling to find clean water for farming or livestock? A portable borewell drilling machine from YG Machinery drills wells up to 200 meters deep. It is fast and affordable. Unlike large rigs, our machines are light enough for two people to move. They run on diesel engines with no external power needed. This machine works great for irrigation or drinking water wells. Read on to learn how it works and where it performs best.
Portable Borewell Drilling Machine – Technical Specifications
| Parameter | YG-240-22P | YG-240-30P |
|---|---|---|
| Dimension | 1,450 × 1,550 × 1,970 mm | 2,000 × 1,230 × 2,090 mm |
| Weight | 200 kg | 200 kg |
| Drill Rod Diameter | 42 mm | 51 mm |
| Drill Rod Length | 1.5 m / unit | 1.5 m / unit |
| Rod Change Method | Fully automatic screw thread | Fully automatic screw thread |
| Max Drilling Depth | 200 m | 200 m |
| Diesel Engine Power | 22 HP | 30 HP |
| Drilling Hole Diameter | Within 280 mm | 100 mm – 240 mm |
| Lifting Height | 2.5 m | Max 2.5 m |
| Lifting Force | 1,000 kg | 2,000 kg |
How Does a Portable Borewell Drilling Machine Work?
A portable borewell drilling machine uses rotary drilling powered by a diesel engine. The process is simple but effective. Here is how it works:
- Setup: Place the machine on flat ground. Raise the mast to 2.5 m. Connect the first drill rod.
- Drilling: The diesel engine rotates the drill rod into the ground. Water or mud cools the bit and carries cuttings up.

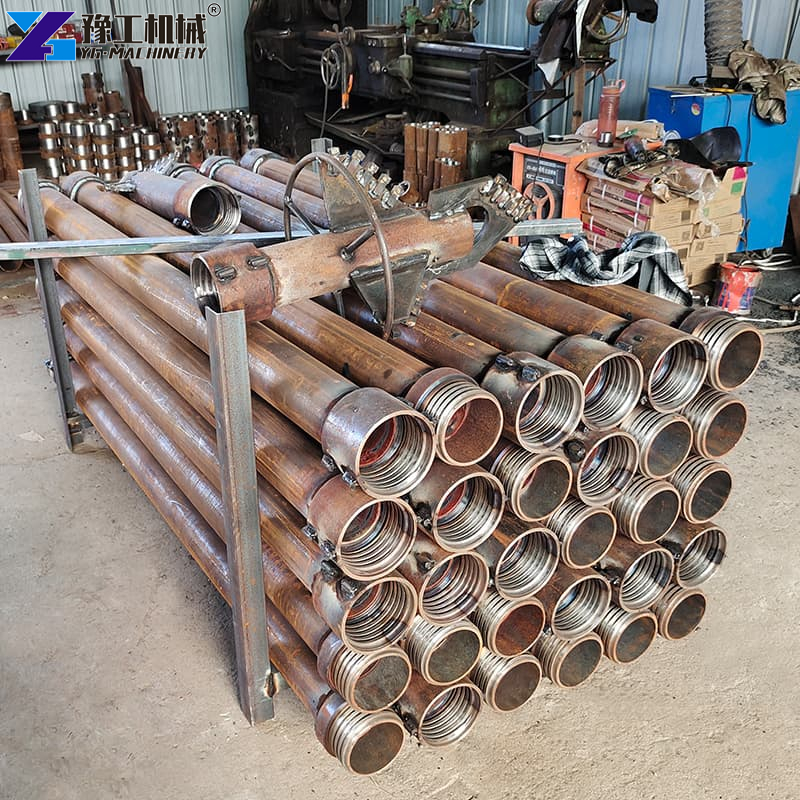

- Rod Addition: The automatic screw thread system adds the next 1.5 m rod. No manual threading is needed.
- Completion: At target depth (up to 200 m), pull out the drill string. Lower a PVC or steel casing into the borehole.
Two to three operators can manage the whole process. No crane or heavy transport is required.
Key Advantages of Using a Portable Well Drill
Lightweight and Easy to Transport
At just 200 kg, our portable well drill fits on a small trailer or pickup truck. Farmers can move it between remote sites easily. The compact design passes through narrow farm paths and village roads.
Full Automatic Rod Change
The automatic screw thread rod change saves significant time. Operators skip manual rod connection work. One person handles a full rod change in under two minutes. This cuts labor costs and total drilling time.
Strong Lifting Power
The YG-240-30P model delivers up to 2,000 kg of lifting force. This handles stuck drill rods in hard soil or rock. The 30 HP diesel engine provides steady torque at full depth.
Two Models for Different Needs
- YG-240-22P: Ideal for narrow spaces and smaller holes (up to 280 mm). The 22 HP engine keeps fuel costs low.
- YG-240-30P: Better for deeper and harder ground. The 51 mm rod and 2,000 kg lifting force handle tough conditions.
Both models share the same 200 m max depth. You can choose based on your ground conditions.
Where Is a Small Borewell Drilling Machine Used?
A small borewell drilling machine fits many industries and environments well. Here are the most common uses:
- Agricultural Irrigation: Farmers drill wells to water crops in dry seasons. The portable design works in fields far from roads.
- Village Drinking Water: Rural communities use these machines for clean water. One well serves dozens of families.
- Livestock Water Supply: Ranchers drill boreholes for cattle, goats, and poultry.
- Geological Survey: Engineers collect soil samples at various depths for site analysis.
- Environmental Monitoring: Scientists drill monitoring wells near industrial areas or landfills.
- Garden and Landscape: Landscapers drill boreholes for irrigation systems or water features.
FAQ About Portable Borewell Drilling Machines
How deep can a portable borewell drilling machine drill?
Our YG-240 series reaches up to 200 meters. For most farming needs, 50–100 m is enough. The machine handles both shallow and deep holes with ease.
What type of soil can this machine handle?
These machines work in clay, sand, loam, and soft rock. For hard rock, we recommend a DTH hammer attachment (sold separately). The 30 HP model handles mixed ground better.
How long does it take to drill a 50-meter well?
Check engine oil before each use. Grease the mast rails weekly. Inspect drill rods for cracks monthly. Replace seals every 500 hours. YG Machinery provides spare parts and video guides.
Why Choose YG Machinery for Your Portable Borewell Drilling Machine?
Every machine we ship passes a 24-hour factory run test. We check drilling performance, engine output, and rod strength. You get a full inspection report. Our service includes:
- Pre-sale consultation: Tell us your ground type and target depth. We recommend the best model for you.
- Custom solutions: Need a different rod length or drill bit? We build to your specs.
- After-sales support: Our engineers offer remote video guidance. Spare parts ship within 48 hours. We provide a 12-month warranty on core components.
Trusted by Customers Worldwide
“We bought the YG-240-22P for our farm in Kenya. We drilled three wells in one week. The automatic rod change saves us a lot of time.”
— James O., Farm Owner, Kenya
“The 30 HP model drills through clay and soft rock without problems. We use it for village water projects across Bangladesh.”
— Rahim H., Water Project Contractor, Bangladesh
Get Your Free Quote for a Portable Borewell Drilling Machine Today
Ready to bring clean water to your farm or village? A portable borewell drilling machine from YG Machinery delivers reliable performance at a competitive price.
Contact us now to:
- Get a free, no-obligation quote
- Receive a custom drilling solution for your site
- Download the full product catalog and parts list
