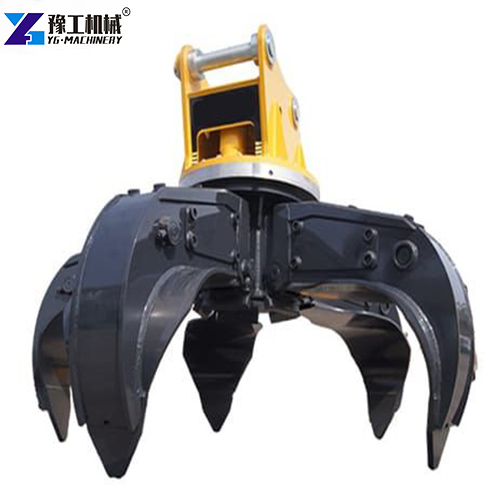

An excavator hydraulic grapple is a clamp-like attachment that connects to an excavator’s arm. It uses the machine’s hydraulic flow to open, close, and rotate its jaws. You’ll find it on job sites handling demolition debris, sorting scrap metal, moving logs, or cleaning up waste. It replaces manual labor with fast, powerful gripping. If you need a reliable hydraulic grapple for your fleet, contact YG Machinery directly for model recommendations and a quote.
Key Specifications for YG hydraulic grapple
| Model | YG-Mini | YG-Minis | YG02 | YG04 | YG06 | YG08 |
| A (mm) | 610 | 750 | 807 | 890 | 1225 | 1530 |
| B (mm) | 670 | 900 | 1000 | 1087 | 1320 | 1680 |
| C (mm) | 404 | 400 | 492 | 542 | 620 | 820 |
| Oil Pressure (bar) | 80-110 | 80-110 | 110-140 | 120-160 | 150-170 | 160-180 |
| Excavator Weight (ton) | 1.5 | 3 | 5 | 8 | 12 | 20 |
| Grapple Weight (kg) | 130 | 280 | 300 | 370 | 660 | 1060 |
How does the hydraulic grab work?

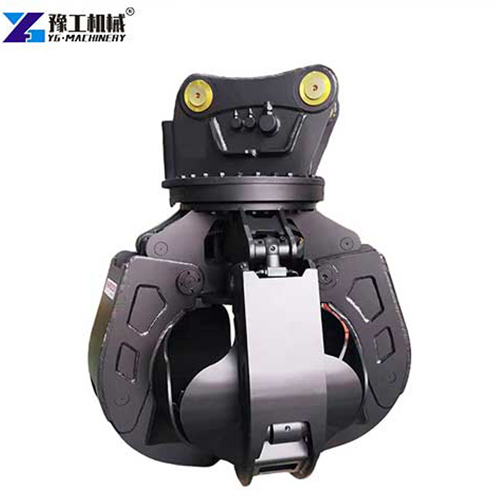

The excavator hydraulic grapple uses the excavator’s own hydraulic pump. The engine drives the pump to send pressurized oil through a control valve. The operator moves a joystick in the cab, directing oil into cylinders on the grapple. When oil pushes the piston rod outward, the tines close. Reverse the flow, and they open. A rotary coupling lets the whole head spin 360 degrees, so you can align a load without moving the tracks.
The system runs on the same auxiliary circuit as a breaker. No extra power unit needed. Make sure the return oil flows freely; a restrictive return line slows down the tines. Check your excavator’s flow rate – most grapples need at least 40 to 60 L/min for decent cycle times.

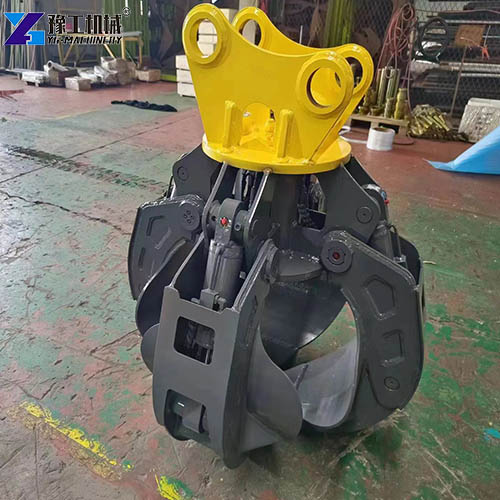

Key Features and Advantages of Hydraulic Grabs for Excavators
1. Fast cycle times
A trained operator can pick, swing, and dump a ton of scrap in under 40 seconds. Manual handling with three workers takes much longer. The machine never gets tired, saving hours each shift and lowering labor costs. For a busy recycling yard, this can mean an extra 30 tons processed per day.
2. Precise control
The hydraulic system provides a feather-touch response. Crack open a concrete block to pull rebar, or pick a single log without damaging bark. This reduces material waste and improves sorting value. Operators can work next to sensitive equipment without risk of impact.
3. Heavy-duty build
Tines are made from wear-resistant steel. Pins and bushings are heat-treated and replaceable. A well-built unit lasts thousands of hours. Some users exceed 5,000 hours before the first pin replacement. Adding bolt-on wear plates doubles the life of the tine tips.
4. Low maintenance
There are no complex electronics. The main wear items are cylinder seals and pins. Both are easy to replace on-site. Keep spare seal kits in the toolbox, and you avoid costly downtime.
5. One machine, many tasks
Swap the bucket, and your excavator becomes a material handler. No need to rent a separate machine. This saves transport, storage, and equipment costs. Contractors who own one grapple instead of two dedicated machines see a faster return on investment.

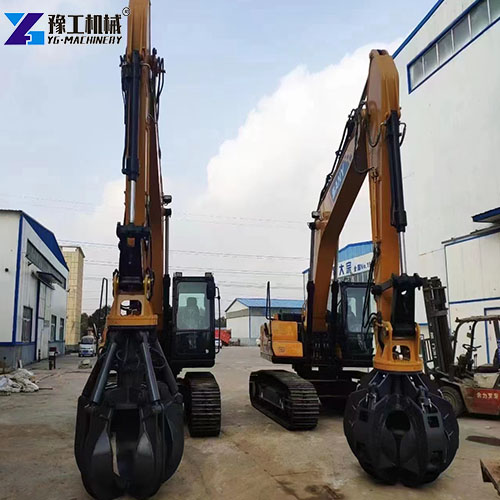

Where to Use This Excavator Hydraulic Grapple?
- Demolition sites: Pull lumber from broken houses, sort it from concrete, and load trucks. The rotating function helps stack timber neatly on trailers. For mixed debris, open the tines just enough to grip one beam at a time – this keeps dust down and leaves concrete piles clean for a separate loader.
- Waste transfer stations: Mixed waste is messy. Cardboard, plastic bags, metal cans, and furniture. A wide tine hydraulic grab can pick through the pile without crushing everything. The operator separates recyclables on the spot, reducing landfill fees.
- Forestry and land clearing: After cutting trees, the grapple stacks logs, feeds a wood chipper, or clears brush piles. It can also pick up stumps and load them into a dump truck. For roadside clearing, the attachment reaches over guardrails without moving the machine.
- Scrap metal recycling: Shredded cars, scrap rebar, aluminum extrusions. The high closing force secures the load during swing. Some models have extra piercing tips to puncture light-gauge metal for a better grip.
- Ports and wharves: Unload barges of scrap or recycled paper. The grapple works in tight holds where a crane bucket cannot fit. Cycle times are faster than a rope grab because the hydraulic action is immediate.
- Agriculture: Move around hay bales, clean animal barns, and handle silage. Farmers mount a small hydraulic grab on a 3 ton excavator to clean out bedding. It is faster than a skid steer with a bucket because the excavator can reach over gates.

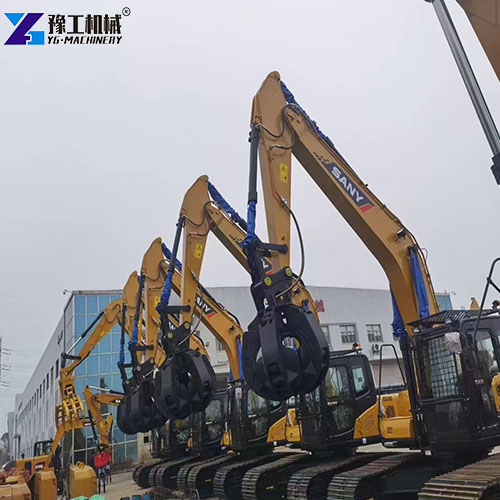

Get your hydraulic grab from YG Machinery
YG Machinery is a factory-direct company integrating manufacturing and trading. We build every excavator hydraulic grapple with strict quality control and test each unit before shipment. Our grapples deliver fast cycle times, precise hydraulic control, a heavy‑duty build, and low maintenance. We also stock spare parts and offer reliable after‑sales support. Need one for your excavator? Contact us with your machine model and typical material. Please tell us your working conditions and budget. We will recommend the right model and provide a free quote. Get in touch with YG Machinery today.
