Brisbane Water, a municipal wastewater utility in Queensland, faced a critical sewer capacity crisis in early 2025. Their 2.4km main trunk sewer had not been cleaned in over eight years. Sediment buildup reduced pipe capacity to only 40% of original design flow. Overflow events occurred weekly during heavy rain, violating Environmental Protection Agency regulations. Manual cleaning attempts failed due to toxic hydrogen sulfide gas and unpredictable water flow. Brisbane Water needed a solution that could clean without extended shutdowns. They searched for an underwater pipeline cleaning robot and contacted YG Machinery with detailed project specifications.
YG Hot Sale Pipeline Cleaning Robot Product Specifications
| Parameter | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
|---|---|---|---|---|---|---|
| Robot dimensions | 1500×500×650mm | 1500×600×650mm | 1600×700×650mm | 1600×850×700mm | 1650×960×750mm | 1900×1200×750mm |
| Dredging width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Track travel speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s |
| Robot weight | 320kg | 350kg | 380kg | 400kg | 420kg | 500kg |
| Pump output diameter | 3inch | 3inch | 4inch | 4inch | 4inch | 4inch |
| Pump flow rate | 100m³/h | 100m³/h | 200m³/h | 200m³/h | 200m³/h | 200m³/h |
| Main motor power | 22kW | 22kW | 30kW | 30kW | 30kW | 45kW |
| Particle size | 15mm | 15mm | 38mm | 38mm | 38mm | 60mm |
| Hydraulic hoses | 50m | 50m | 50m | 50m | 50m | 50m |
| Control system | Wireless remote control | Wireless remote control | Wireless remote control | Wireless remote control | Wireless remote control | Wireless remote control |
| Lighting | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |
Why Australian Municipalities Need an Underwater Pipeline Cleaning Robot
Brisbane Water’s crisis is not unique. Aging sewer infrastructure is a growing challenge across Australian cities. Pipes built in the 1980s and 1990s now exceed their design life. Urban growth has pushed flow volumes beyond original capacity. Traditional cleaning methods struggle with large-diameter trunk sewers.
Manual cleaning requires confined space entry. Workers face exposure to toxic gases, including hydrogen sulfide and methane. High-pressure water jetting wastes enormous volumes of clean water. It also requires full pipe dewatering, which means long service shutdowns.
The regulatory environment in Australia is tightening. Sewer overflow penalties under the Environmental Protection Act can reach AUD 500,000 per incident. Municipal utilities face pressure to find safer and more efficient cleaning methods.
Brisbane Water needed a solution that met three criteria: remote operation to eliminate confined space entry, continuous operation without full pipe dewatering, and sufficient capacity for heavy sediment loads. They searched for a pipeline dredging robot manufacturer with proven municipal experience and found YG Machinery.
Professional insight: For trunk sewers over DN600, always evaluate remote-operated options before traditional methods. Confined space entry costs include gas monitoring, rescue teams, and ventilation. These add AUD 2,000-5,000 per day to project costs.
How the Underwater Pipeline Cleaning Robot Solved the Problem
We recommended the YG-800 model Intelligent Dredging Robot for Brisbane Water’s project. Its 800mm dredging width matched the 1000mm internal pipe diameter well. The 200m³/h pump flow handled heavy sediment loads efficiently. The tracked chassis provided stable movement on uneven pipe bottoms.
Key specifications for the selected YG-800 model:
- Robot dimensions: 1600×850×700mm, fitting through standard DN600 access points
- Robot weight: 400kg, with tracked design for stable pipe bottom traction
- Pump flow rate: 200m³/h, sufficient for heavy sediment evacuation
- Particle size handling: up to 38mm, covering typical sewer debris
- Main motor power: 30kW hydraulic system on surface
- Wireless remote control with underwater LED lighting for real-time operation
- Standard hydraulic hoses: 50m length for adequate working range

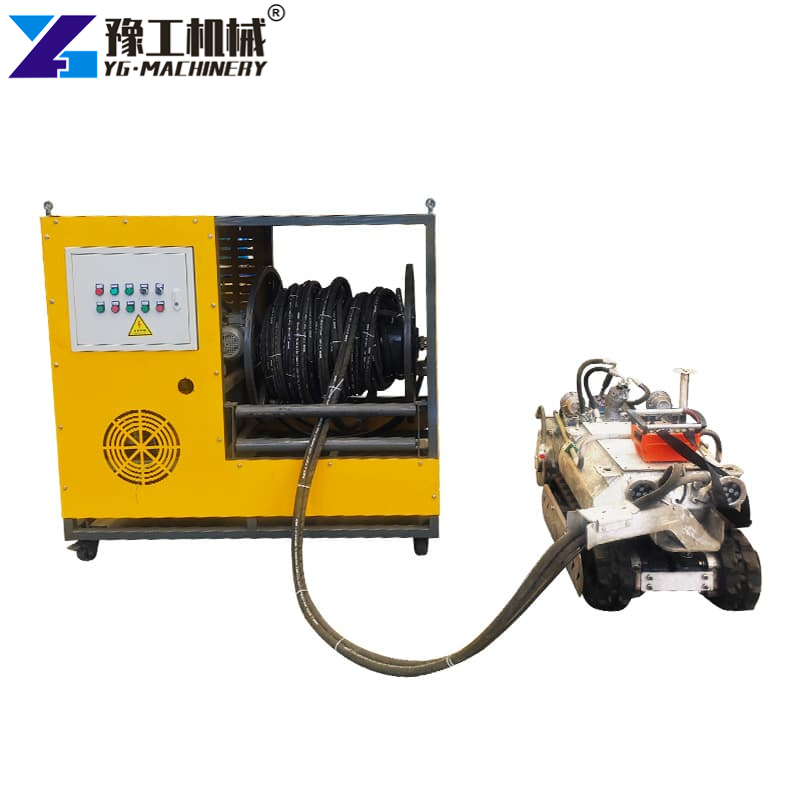

The hydraulic power station was positioned on the surface. Hydraulic hoses connected the surface station to the robot. This arrangement kept heavy equipment out of the work area. The wireless remote control allowed operation from a safe distance.
Professional insight: Always match robot width to 80-90% of the pipe internal diameter. This ensures full-width coverage without getting stuck. For pipes DN700-DN1000, the YG-700 or YG-800 models are ideal choices.
Underwater Pipeline Cleaning Robot On-Site Installation and Commissioning
The Water Tank Cleaning Robot was shipped from Qingdao port via LCL container. It arrived at Brisbane port in 16 days. Customs clearance was completed in 3 days with proper documentation. Local transport delivered the equipment to the first access point.
Before starting work, we conducted thorough site preparation. The access pit required proper shoring and gas monitoring equipment. The hydraulic power unit was set up on the surface near the access point. All hydraulic connections were tested for leaks.
Safety is critical even with remote-controlled equipment. We verified that the access pit had adequate ventilation. A confined space rescue team remained on standby throughout the operation. The operator was trained on emergency stop procedures.
The first run served as a test in a dry section of pipe. We verified wireless control response and pump pressure settings. The tracked dredging robot moved smoothly across the pipe bottom. Camera feed quality was clear under the underwater LED lights.
The actual cleaning operation started from the downstream section. The robot advanced at controlled speed while the cutter head broke up compacted sediment. The pump simultaneously evacuated the slurry to the surface collection point.
Professional insight: Always start cleaning from the downstream end. Working upstream allows gravity to assist flow and prevents pushing sediment into already-cleaned sections. Test run in dry or low-water conditions first to verify all systems before full deployment.
Fast ROI for Municipal and Industrial Pipeline Maintenance
One of the main reasons the Australian customer selected the YG underwater pipeline cleaning robot was its excellent return on investment. With a purchase price of only US$9,000, the robot costs significantly less than repeated outsourcing or manual underwater cleaning operations.
Before purchasing the robot, the customer relied on external contractors for routine pipeline cleaning and inspections. A single underwater maintenance project could cost several hundred to several thousand dollars, depending on pipeline length, water conditions, and labor requirements. By bringing the work in-house, the company expects to reduce maintenance expenses while responding to emergencies much faster.
Based on the customer’s estimated maintenance schedule, the robot is expected to recover its purchase cost within approximately 6–12 months through lower labor costs, reduced contractor fees, and shorter pipeline downtime. After the payback period, every completed cleaning project contributes directly to operating profit. Actual ROI depends on operating frequency, labor rates, and local maintenance costs.
Beyond direct financial savings, the robot also delivers long-term operational value by:
- Reducing the need for divers in hazardous environments
- Shortening pipeline shutdown time
- Improving cleaning consistency and inspection quality
- Extending pipeline service life through preventive maintenance
- Increasing maintenance efficiency for municipal and industrial water systems
For companies that perform regular underwater pipeline maintenance, a US$9,000 investment can quickly become a long-term productivity asset rather than an ongoing operating expense.
Choosing a Pipeline Dredging Robot Manufacturer for Your Project
Selecting the right manufacturer affects your total project outcome far more than the machine price alone. A reliable pipeline dredging robot manufacturer provides technical support, spare parts availability, and operator training.
Key evaluation factors when selecting a manufacturer:
- Verify project experience in similar pipe diameters and sediment conditions
- Ask about spare parts lead times and shipping options to your country
- Request video demonstrations on sediment types similar to your project
- Confirm warranty coverage and technical support response time
- Check whether the manufacturer provides on-site training for operators
- Ensure the remote control system integrates with your existing CCTV inspection equipment
Professional insight: Always ask for at least three reference projects from municipal or industrial clients. A manufacturer who can connect you with existing customers demonstrates confidence in their product. Also verify that the robot meets local safety standards for electrical equipment and confined space operations.
Underwater Pipeline Cleaning Robot Maintenance Guidelines
Proper maintenance determines robot lifespan and operational reliability. Sewer environments are harsh, with corrosive gases, abrasive sediment, and constant moisture exposure. Each operation requires post-use cleaning and inspection.
Essential maintenance practices:
- Flush the robot thoroughly with freshwater after every use
- Inspect hydraulic hoses and electrical connectors every 10 operating hours
- Grease all track chain joints weekly during active projects
- Check cutter blade sharpness before each deployment and replace when worn
- Test wireless control range and battery level daily
- Inspect track pad wear monthly and replace when thickness drops below 5mm
- Store the robot in a dry, covered area when not in use
The cutter blades typically last 200-300 operating hours before replacement. Track pads last 500-800 hours depending on pipe bottom conditions. Hydraulic seals should be inspected and replaced annually.
Professional insight: Post-use freshwater flushing is non-negotiable in sewer applications. Hydrogen sulfide residue causes rapid corrosion on metal surfaces. A 15-minute flush after every operation extends the robot’s structural life by years. Keep a maintenance log to track component replacement cycles.
Get Your Tracked Dredging Robot Quote
Planning a sewer cleaning or pipeline rehabilitation project? YG Machinery provides factory live video tours, real-time robot demonstrations, and full on-site commissioning guidance. Our technical team responds within 8 hours with equipment recommendations matched to your pipe diameter and project scope. Send us your pipe specifications, sediment conditions, and project timeline. We will prepare a customized solution with a detailed quotation. Contact YG Machinery today and modernize your pipeline maintenance operations.
FAQ About Remote Controlled Sewer Cleaning Robot
The YG series covers pipe diameters from DN500 to DN1200. The YG-800 model used in this project works in pipes with 700- 1000 mm internal diameter. Choose the model based on your pipe’s actual internal measurement.
All models feature 3-15m/s track travel speed. Actual cleaning speed depends on sediment density. For heavily compacted sediment, expect 10-20 meters per hour. For loose sludge, progress can reach 40-60 meters per hour.
Yes, all models are designed for full submersion. The robot features waterproof electric motors, sealed control electronics, and underwater LED lighting. It operates effectively in water depths up to the pipe crown.
The YG-800 handles particles up to 38mm. The YG-1200 model handles up to 60mm particles. For pipes with large debris, install a surface screening system to prevent pump blockage.
Typical operation requires 2-3 trained personnel. One operator controls the robot via a wireless remote. One technician manages the hydraulic power unit. One safety observer monitors the access point and surrounding conditions.
For pipes DN500-DN700, choose YG-500 or YG-600. For DN700-DN1000, choose YG-700 or YG-800. For DN1000-DN1200, choose YG-900 or YG-1200. Send us your pipe diameter, sediment type, and project length for a specific recommendation.
