A small road roller is a compact machine used for compacting soil, asphalt, and gravel in tight spaces where standard rollers cannot fit. It usually weighs from 330 kg to 1000 kg, making it easy to transport and operate. Common applications include street repairs, garden paths, pipeline trenches, and parking lots. If you need a machine that delivers strong compaction without taking up too much room, contact YG Machinery for detailed specs and a custom quote.
Mini Road Roller Technical Parameters
| Model | YG-F600S | YG-F600D | YG-F850 | YG-F880 |
| Walking speed | 2.4km/h | 0-4km/h | 0-4km/h | 0-5km/h |
| Water tank capacity | 3.6L | 15L | 15L | 60L |
| Oil tank capacity | 15L | 15L | 6L | 19L |
| Size of the steel wheel | 600*426mm | 600*426mm | 700*560mm(front)500*426mm(rear) | 740*530mm(front)800*530mm(rear) |
| Excitation force | 15KN | 25KN | 28KN | 30KN |
| Grade ability | 25% | 30% | 30% | 30% |
| Weight | 330kg | 550kg | 750kg | 1000kg |
How a Small Road Roller Works?
The machine uses three principles together. First, static pressure. The weight of the machine presses down on the drum, which flattens the material underneath. Second, vibration. An eccentric shaft inside the drum spins at high speed, creating impact force. Each impact pushes particles closer together. Third, rolling. As the drum turns, it continuously recompacts the same area. The result is a dense, stable layer that water cannot easily penetrate. For cohesive soils like clay, vibration helps break up air pockets. For granular materials like gravel, static pressure alone is often enough. Operators can turn the vibration on or off depending on the layer depth and material type.
Features and Advantages of Road Rollers for Sale
1. Ultra compact size
The small road roller measures less than 1 meter wide on most models. It passes through standard doorways, garden gates, and narrow alleys. Transport requires only a small trailer or pickup truck.
2. Lightweight design
Weight ranges from 330 kg to 1000 kg. One person can load it manually using a ramp. Low weight also means lower ground pressure, so it does not damage finished pavements or lawns.
3. Dual compaction methods
Operators can choose static pressure for granular materials like gravel or sand. Switch to vibration mode for cohesive soils and asphalt. The excitation force reaches up to 30KN.
4. Easy hydraulic operation (ride-on models)
No pushing required. The hydraulic drive system provides smooth acceleration and reverse. Full hydraulic models also allow precise steering in tight corners.
5. Large water tank options
The YG-F880 comes with a 60L water tank. It sprays water directly onto the drum, preventing asphalt from sticking. This reduces cleaning time and improves surface finish.
6. Adjustable handle (hand-supported models)
Workers of different heights can set the handle to a comfortable position. The handle also folds down for storage and transport. A proper handle height reduces back strain during long shifts. Operators work faster and take fewer breaks.
7. High gradeability
Up to 30% slope capacity. The machine climbs ramps, trench slopes, and uneven terrain without losing traction.On sloping job sites, stability is critical.
8. Low maintenance cost
Simple structure with few wearing parts. Steel drums are wear-resistant. Filters and belts are standard sizes available from any local supplier.

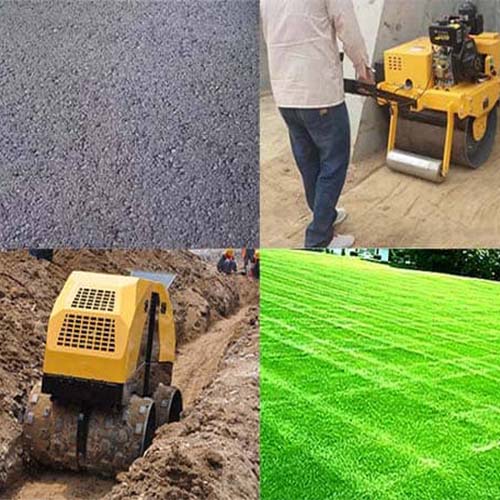

What Can You Produce with the Small Road Roller?
- Urban road construction and maintenance: Compacts asphalt patches on small streets, alleys, and around manholes. Large rollers are too wide. The machine turns easily and fits between parked cars. Crews use it after pipe or cable repairs. Vibration helps the new asphalt bond with the old layer.
- Landscaping and gardening: Flattens gravel paths, garden trails, and lawn edges without damaging plants. Lightweight allows work on soft ground. Also presses down pavers or levels soil before planting.
- Pipeline and trench work: Compacts backfill inside trenches 40 to 60 cm wide. Standard rollers do not fit. The machine compacts in 20 cm layers. Prevents future sinking or cracking above the pipeline.
- Parking lot construction: Compacts base layer and asphalt on small lots and driveways. For 5 to 10 spaces, a large roller is overkill. This machine maneuvers around islands, poles, and curbs. Multiple passes with vibration produce a smooth surface.
- Bridge decks and rooftops: Lightweight prevents structural stress. A 10-ton roller may be forbidden. A 750 kg roller causes no problem. On rooftops, it moves safely over waterproof membranes with rubber tracks or soft drums.
- Sports field base layers: Compacts gravel and sand under artificial turf or running tracks. Multiple passes in a grid pattern create a stable base. Vibration pushes the aggregate together without sideways movement.
Get Mini Road Roller Price from YG Machinery
Ready to add a small road roller to your equipment fleet? YG Machinery makes the process simple. Please tell us your project type, daily working hours, and the narrowest passage on site. We will recommend the right model within 24 hours. Every machine comes with a one-year warranty, spare parts support, and optional custom colors. Whether you need a hand-supported unit for trench work or a full hydraulic ride-on roller for parking lots, we have a solution that fits your budget. Send an inquiry today. You will receive a mini road roller price quote and a product video directly from our sales team.
