Underground sediment buildup causes costly blockages and system failures every year. Facility managers need reliable equipment to handle this challenge effectively. A crawler dredging robot from YG Machinery delivers stable, consistent performance in the harsh conditions of underground cleaning. Unlike standard pumps that slip or clog, tracked robots maintain firm grip on wet surfaces. This article explains why stability is the key factor that separates effective dredging from costly failures.
Why Stability Matters for Every Crawler Dredging Robot
Unstable dredging equipment loses suction contact on wet surfaces constantly. This leads to incomplete cleaning and repeated passes. YG Machinery crawler dredging robot units solve this problem with a low center of gravity and hydraulic-driven tracks. These tracks grip concrete, steel, and uneven surfaces firmly at all times. Without proper stability, operators face three serious risks: reduced material pickup efficiency, equipment damage from tilting or overturning, and increased downtime for repositioning. Stable tracked platforms eliminate all three issues while maintaining continuous pumping operation underground.
Underwater Crawler Dredging Robot Product Specifications
| Parameter | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
|---|---|---|---|---|---|---|
| Robot Dimensions | 1500×500×650mm | 1500×600×650mm | 1600×700×650mm | 1600×850×700mm | 1650×960×750mm | 1900×1200×750mm |
| Dredging Width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Track Travel Speed | 3-15m/min | 3-15m/min | 3-15m/min | 3-15m/min | 3-15m/min | 3-15m/min |
| Robot Weight | 320kg | 350kg | 380kg | 400kg | 420kg | 500kg |
| Pump Output Diameter | 3 inch | 3 inch | 4 inch | 4 inch | 4 inch | 4 inch |
| Pump Flow Rate | 100 m³/h | 100 m³/h | 200 m³/h | 200 m³/h | 200 m³/h | 200 m³/h |
| Hydraulic Station Dimensions | 2200×1200×1700mm | 2200×1200×1700mm | 2200×1200×1700mm | 2200×1200×1700mm | 2200×1200×1700mm | 2120×1240×1200mm |
| Main Motor Power | 22kW | 22kW | 30kW | 30kW | 30kW | 45kW |
| Hydraulic System Pressure | 0-16MPa | 0-16MPa | 0-16MPa | 0-16MPa | 0-16MPa | 0-16MPa |
| Max Particle Size | 15mm | 15mm | 38mm | 38mm | 38mm | 60mm |
| Reeling System Speed | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min |
| Hydraulic Hoses | 50m (Standard) | 50m (Standard) | 50m (Standard) | 50m (Standard) | 50m (Standard) | 50m (Standard) |
| Control System | Wireless Remote Control | Wireless Remote Control | Wireless Remote Control | Wireless Remote Control | Wireless Remote Control | Wireless Remote Control |
| Lighting System | Underwater LED Lights ×2 | Underwater LED Lights ×2 | Underwater LED Lights ×2 | Underwater LED Lights ×2 | Underwater LED Lights ×2 |

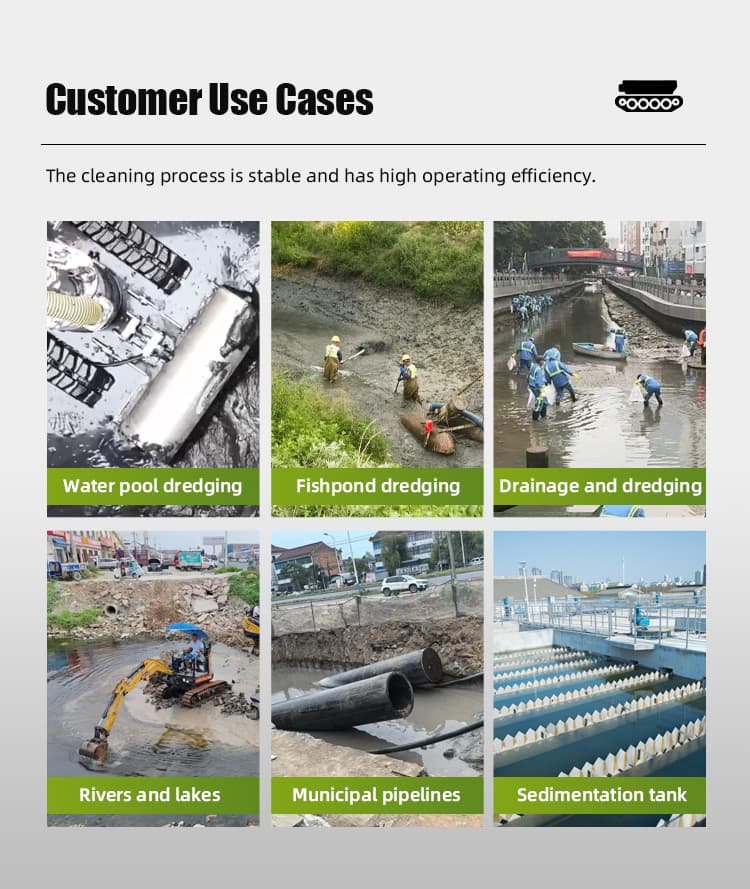

Crawler Dredging Robot Applications Across Industries
- Municipal Water and Wastewater Treatment: City water treatment plants use crawler dredging robots to clean sediment from clarifiers and settling basins. Stormwater pumping stations also rely on these machines for routine maintenance. The robot handles thick sludge that would clog standard pumps.
- Mining and Mineral Processing: Mining operations use crawler dredging robots to manage tailings ponds and slurry collection basins. The heavy-duty tracks handle rough mine floor conditions reliably. Higher-capacity models process large volumes of mineral-laden sediment efficiently.
- Industrial Manufacturing Facilities: Factories use underwater dredging robot units in processing ponds and lagoon systems. Steel mills need regular descaling pit cleaning to maintain production quality. Food processing plants use smaller models for grease trap and waste lagoon maintenance.
- Power Generation Plants: Power plants rely on crawler dredging robots for cooling water intake structure cleaning. Ash ponds and sediment basins require regular maintenance to ensure continuous operation. The stable tracked platform works well in large open water bodies.
- Stormwater Management: Municipal stormwater systems use crawler dredging robots to clean detention and retention ponds. These ponds collect debris and sediment from runoff continuously. Regular dredging restores pond capacity and prevents downstream flooding effectively.
Why Choose YG Machinery for Your Crawler Dredging Robot
YG Machinery provides complete support from initial consultation through project completion. Our engineers assess your site conditions and recommend the best model and configuration for your specific needs.
We offer full customization options to match your project requirements:
- Custom track widths for different channel dimensions
- Extended hydraulic hose lengths for deeper operations
- Specialized pump configurations for unique material types
- Additional LED lighting packages for low-visibility environments
Our after-sales service includes comprehensive technical support and genuine replacement parts. We provide maintenance guidance to extend equipment life and reduce downtime. Every crawler dredging robot comes with wireless remote control and underwater LED lights as standard features.
Our product range covers six models from the compact YG-500 to the heavy-duty YG-1200. This ensures we have the right solution for projects of any scale.
Get Your Free Crawler Dredging Robot Quote Today
Unstable dredging equipment leads to wasted time and incomplete cleaning results. YG Machinery builds crawler dredging robots that deliver consistent performance in the toughest underground conditions.
Contact us now to get a free quote tailored to your project. Our engineering team can design a custom solution for your specific requirements. We respond to all inquiries within 24 hours with detailed proposals.
Frequently Asked Questions About Crawler Dredging Robots
A crawler dredging robot removes sediment, sludge, and debris from underground channels, tanks, and pipelines. Its tracked design provides stability on wet, uneven surfaces. The hydraulic pumping system handles solids efficiently without frequent clogging.
The robot uses heavy-duty crawler tracks that grip slippery surfaces firmly. The low center of gravity prevents tipping in strong currents. The hydraulic system delivers precise control over both movement and pumping speed at all times.
Yes. Compact models like the YG-500 fit into narrow channels and small access points. The wireless remote control allows operation from a safe distance. Underwater LED lights improve visibility in dark conditions.
Regular checks on track tension, hydraulic fluid, and pump components keep the robot running well. Sealed designs and corrosion-resistant materials reduce wear significantly. Most units last 8 to 10 years with proper care. Replacement parts are readily available from the manufacturer.
