Rising labor costs and skilled worker shortages are changing how contractors approach wall plastering. A plaster pump machine solves both problems at once. It delivers 3 to 4 cubic meters of mortar per hour with just two operators. This output replaces the work of six to eight manual plasterers on a typical site. YG Machinery supplies two power configurations to fit different job site conditions worldwide.
| Parameter | Electric Type | Diesel Type |
|---|---|---|
| Output | 3m³/h | 4m³/h |
| Power | 220V-380V/7.5kW | Diesel engine |
| Pressure | 3MPa | 3MPa |
| Conveying Tube | 32mm | 32mm |
| Max Aggregate Size | ≤8mm | ≤8mm |
| Hopper Volume | 80L | 80L |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 320kg | 320kg |
| Material Proportion | 1:1:3 | 1:1:3 |
| Conveying Distance | H:50m / V:30m | H:50m / V:30m |
How Does a Plaster Pump Machine Work

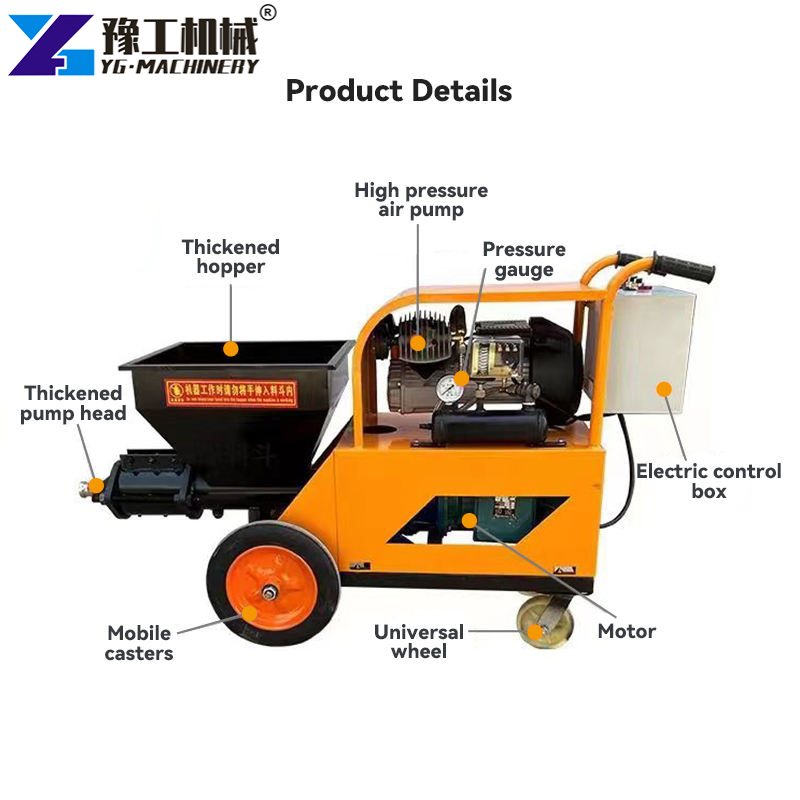

At the heart of a plaster pump machine is a progressive cavity pump system. This pump pushes mortar steadily through a 32mm reinforced conveying tube. The material travels up to 50 meters horizontally and 30 meters vertically from one setup position.
The 80-liter hopper accepts pre-mixed cement mortar or gypsum blends. Workers feed material directly from a mixing station into the hopper opening. The pump maintains constant 3MPa pressure to ensure smooth and continuous flow. Compressed air at the nozzle tip helps atomize the mortar for even wall coverage.

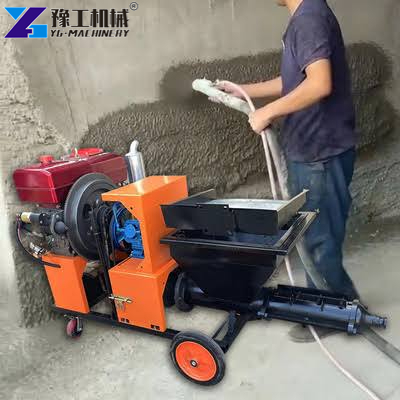

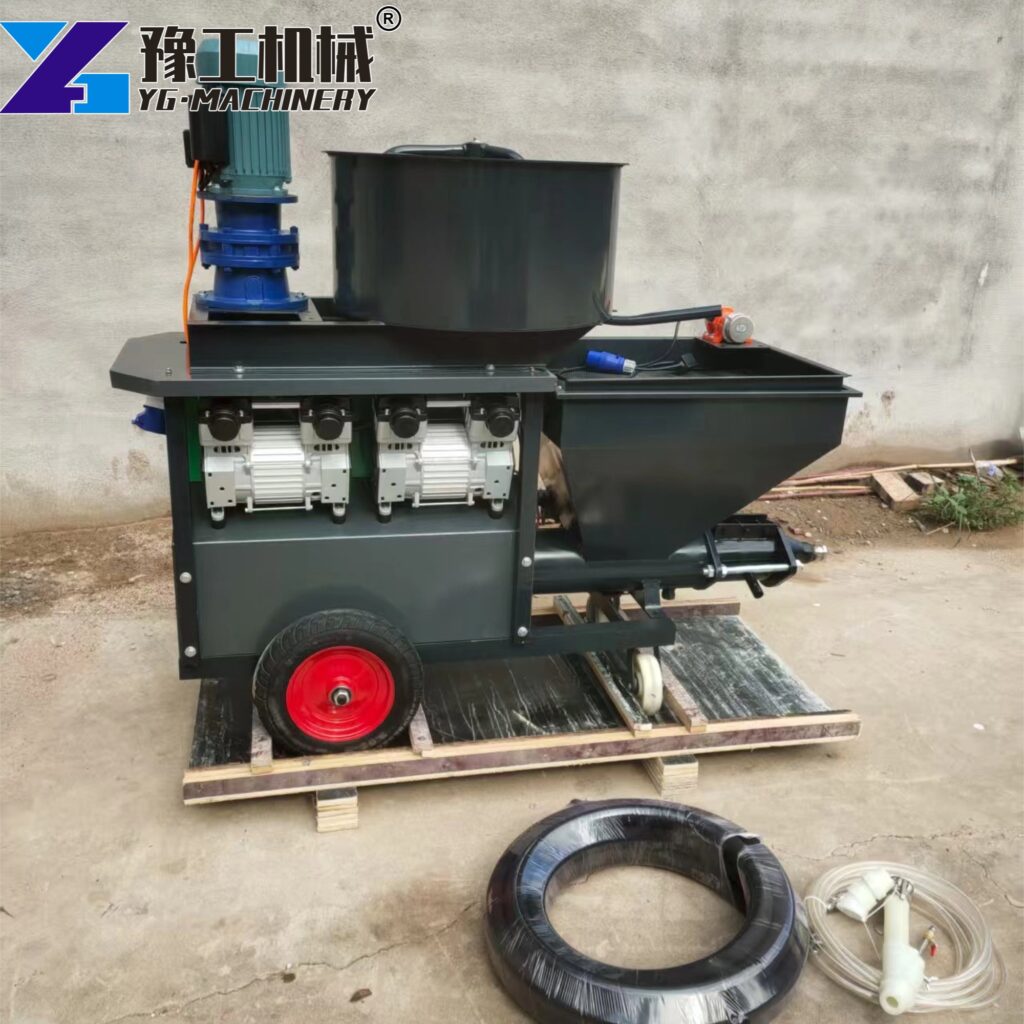

Both electric and diesel models share the same core pumping design. The electric version connects to standard 220V or 380V power supplies. The diesel engine variant operates independently on sites without grid electricity.
Key Advantages of Plaster Pump Machine Technology
Why do more contractors invest in mechanized plastering each year? The financial case is clear, and the quality improvements are measurable.
Consider the following advantages that users report consistently.
- Coating thickness stays uniform within plus or minus 2mm tolerance
- Daily labor expenses drop by 35 to 40 percent on average
- Project timelines shorten by at least 30 percent versus manual crews
- Material waste decreases because the pump delivers precise volumes
- Operator training takes only four to six hours for basic proficiency
The 7.5kW electric motor generates enough torque for thick cement mixes. The standard 1:1:3 ratio works with most locally available sand and cement brands. This adaptability explains why the plaster pump machine performs well across tropical and temperate climates alike.

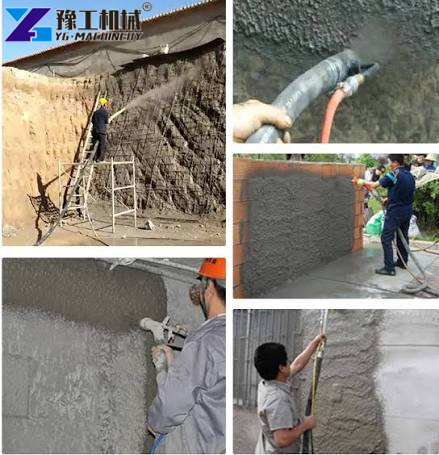

Wall Mortar Cement Spray Plaster Machine Applications
The range of tasks this equipment can handle goes far beyond basic wall plastering. Contractors across multiple sectors rely on it for different coating requirements.
Typical application scenarios include the following.
- Multi-story residential tower interior rendering
- School and hospital ward wall coating projects
- Airport terminal ceiling and column plastering
- Shopping mall exterior facade finishing work
- Industrial warehouse floor screed application
The machine handles cement-based mixes and lightweight gypsum plaster equally well. The 8mm aggregate limit covers virtually all standard construction mortar recipes. Operators can adjust nozzle angle and spray distance to suit each specific surface type.
Real Customer Cases about Wall Plaster Pump Machine
Project Case 1: Jakarta Residential Apartment Complex
A property developer in Jakarta secured a contract for a new residential complex in early 2025. The project required interior wall plastering across 8 apartment blocks, each standing 12 stories tall. Total wall area exceeded 22,000 square meters with a tight 45-day deadline.
The original budget assumed a manual plastering crew of 20 workers. Based on their projected daily rate, the plastering phase alone would consume nearly 60 working days. That timeline left no buffer for Jakarta’s annual rainy season from November to February.
The developer purchased a YG electric plaster pump machine in October 2025. Two operators completed a half-day training session with YG engineers via video call. Three additional workers handled material mixing and surface touch-up after spraying. The machine ran at its rated 3m³/h capacity through two daily shifts of eight hours each.
Despite intermittent rain delays, the team completed all 22,000 square meters in 36 working days. Coating thickness passed quality inspection on the first round with a 97 percent pass rate. Labor costs came in 38 percent below the original manual budget. The developer ordered a second unit within three months for their next project in Surabaya.
Project Case 2: Lagos Government Housing Project
A construction firm in Lagos, Nigeria won a government housing contract in mid-2025. Each block had 4 stories with 15,000 square meters of total plastering area. The job site had frequent power outages.
The firm chose the diesel plaster pump machine from YG Machinery for its energy independence. The diesel engine ran continuously on standard diesel fuel without any electrical connection. Output reached 4 m³/h, exceeding the project’s daily target of 30 m³.
Four local workers received two days of on-site training from the YG technical team: the training covered machine operation, basic troubleshooting, and daily cleaning procedures. The crew worked a single eight-hour shift with the machine running at full capacity throughout.
High humidity in Lagos affected mortar setting times during the rainy weeks. The team adjusted the mix ratio slightly to account for moisture in the local sand. The machine handled the modified mix without any blockage or pressure issues.
All plastering work was completed in 28 working days, one week ahead of schedule. The firm reported a 32 percent reduction in plastering costs compared to their previous manual methods. The Lagos State building authority commended the coating quality during final inspection.
Render Spray Machine Price and Selection Guide
Pricing varies based on power type and optional accessories. The electric model costs less upfront and suits urban construction sites with reliable grid power. Its 7.5kW motor draws from standard industrial supply lines.
The diesel variant commands a higher price due to its engine complexity. However, it eliminates electricity dependency. For remote sites or regions with unstable power, the diesel option often delivers better long-term value.
When evaluating total cost, buyers should weigh these factors carefully.
- Spare parts pricing and local availability in your market
- Warranty coverage duration and what components it includes
- Freight charges based on the 320kg machine shipping weight
- Optional accessories like extra nozzles or longer hoses
YG Machinery quotes include full export documentation and a standard spare parts kit.
Why Partner with YG Machinery
YG Machinery has exported construction equipment to over 60 countries. Our factory spans 5,000 square meters with dedicated testing bays for every machine before shipment. We provide lifetime technical support via WhatsApp and ship spare parts within 48 hours.
Get Your Free Plaster Pump Machine Quote Today
Ready to cut labor costs on your next wall coating project? Contact YG Machinery for a free quote on our plaster pump machine. Email admin@yugongheavy.com or WhatsApp +86 183 3715 2861. Visit https://yugongheavy.com for our full catalog.
