Power outages cost businesses thousands of dollars in lost revenue every year. A reliable power generator set eliminates this risk by delivering continuous electricity when the grid fails. Modern units offer 50Hz frequency, three-phase output, and power ranges from 30kW to 400kW. Choosing the right generator ensures uninterrupted operations. This protects your bottom line from costly downtime.
| Parameter | 30kW | 100kW | 150kW | 200kW | 300kW | 400kW |
|---|---|---|---|---|---|---|
| Cylinders | 4 | 6 | 6 | 6 | 6 | 6 |
| Voltage | 400/230V | 400/230V | 400/230V | 400/230V | 400/230V | 400/230V |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Speed | 1500rpm | 1500rpm | 1500rpm | 1500rpm | 1500rpm | 1500rpm |
| Bore×Stroke | 100×115mm | 105×125mm | 105×130mm | 126×130mm | 126×155mm | 135×160mm |
| Rated Current | 54A | 180A | 270A | 360A | 540A | 720A |
| Phase | 3-phase 4-wire | 3-phase 4-wire | 3-phase 4-wire | 3-phase 4-wire | 3-phase 4-wire | 3-phase 4-wire |
What Is a Generator Set and How Does It Work?
A power generator set combines a diesel engine with an electric alternator to produce standalone electricity. It operates independently from the power grid. The system has several core components that work together.
- The diesel engine serves as the primary power source.
- The alternator converts mechanical rotation into electrical current.
- The automatic transfer switch monitors grid status continuously.
- The electronic governor regulates engine speed for stable output.
- The cooling system prevents overheating during extended operation.
- The fuel tank stores diesel for up to 8 hours of runtime.
- The reinforced steel base frame absorbs vibration and reduces noise.

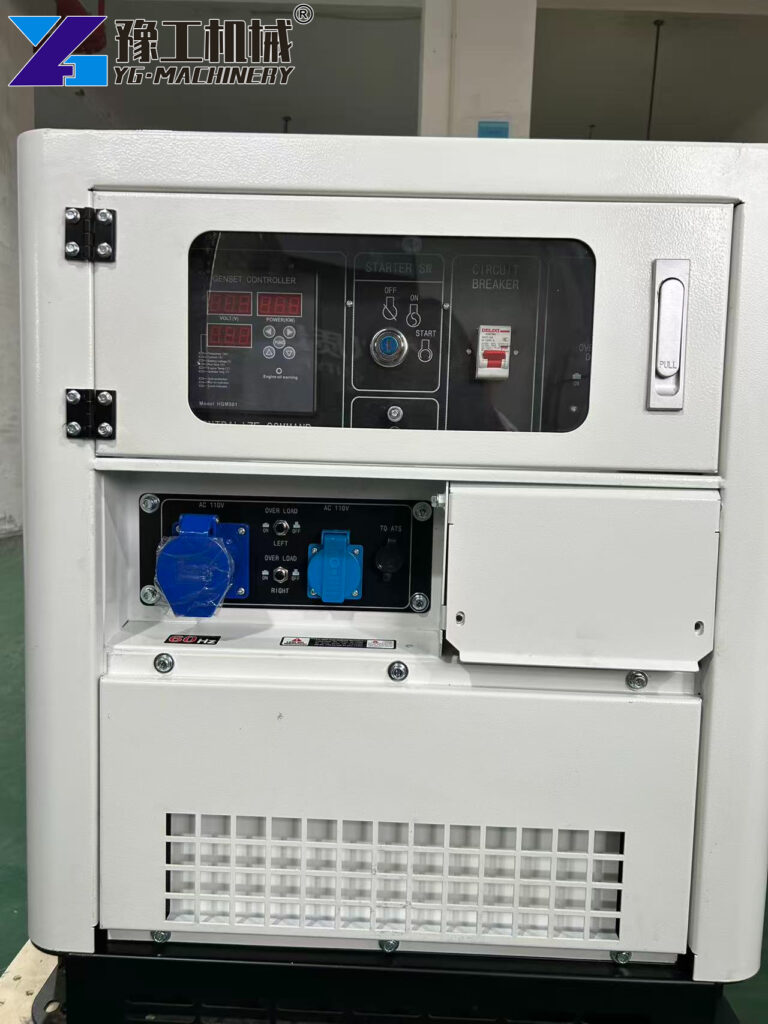

- The control panel displays voltage, frequency, and fault diagnostics.
When the grid fails, the transfer switch signals the engine to start. Power is restored within 10 seconds. The three-phase four-wire configuration supplies both 400V and 230V simultaneously. This design suits construction sites, mines, factories, and emergency backup scenarios.
Key Technical Advantages of This Power Generator Set
Durability defines the core engineering behind these units. The reinforced steel frame withstands harsh conditions on construction sites. A vibration dampening system protects internal components during continuous operation. This robust build ensures years of dependable performance in dust, heat, and rain.

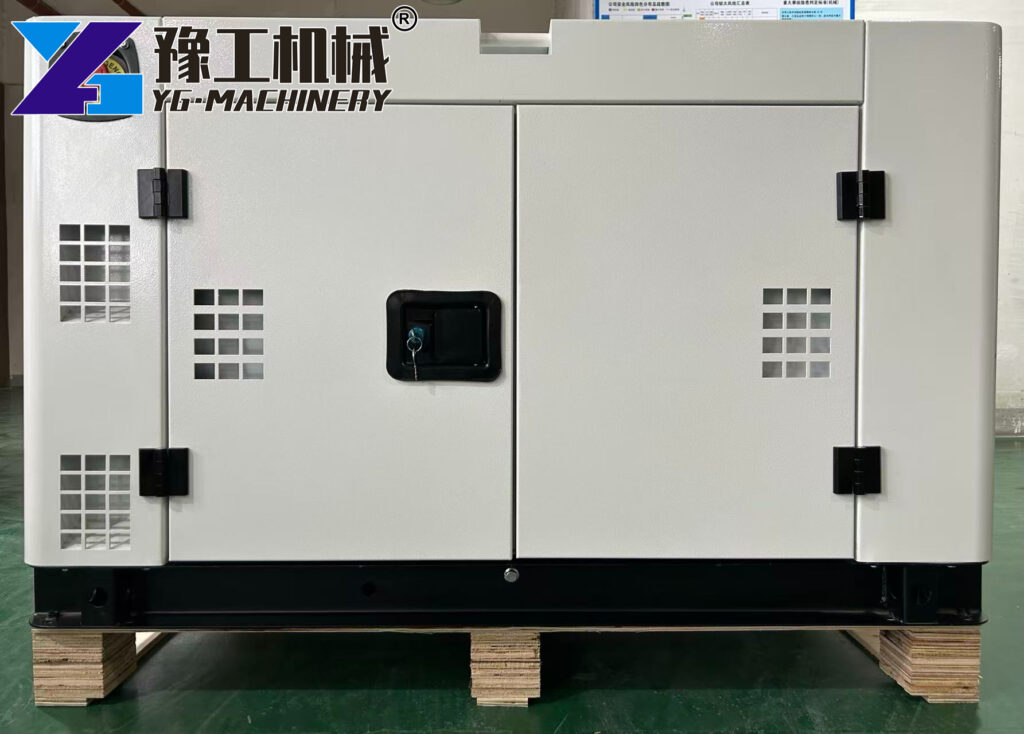

Noise levels stay below 75 dB at one meter distance. The industrial-grade muffler reduces exhaust sound significantly. This makes the unit suitable for urban construction zones with strict noise limits. Fuel consumption averages 0.3 liters per kilowatt-hour at 50% load. This efficiency lowers operating costs over the full service life.
The modular component design simplifies field maintenance. Technicians can replace filters, belts, and sensors without specialized tools. A Portable Quiet Diesel Generator option serves noise-sensitive areas like hospitals and schools. As a trusted DG set manufacturer, YG Machinery tests every unit before delivery. Each generator undergoes a full 4-hour load test to verify performance.
Choosing the Right Power Generator Set for Your Needs
These generator sets serve a wide range of industries. The main sectors include the following.
- Construction sites rely on them for tower cranes, welding equipment, and concrete pumps.
- Telecommunication towers use them to maintain network uptime during outages.
- Hospitals and data centers depend on them as critical backup power sources.
- Mining operations require robust generators for continuous drilling and processing.
- Agricultural irrigation systems use them in areas without grid access.
- Event venues deploy them for outdoor concerts, exhibitions, and festivals.
- Manufacturing plants install them to prevent costly production interruptions.
If you need construction generators for sale, selecting the correct power rating matters most. Calculate your total connected load and add a 20% safety margin. A 100kW unit suits small construction projects and farm operations. Larger facilities typically require 200kW to 400kW capacity. Consider ambient temperature, altitude, and duty cycle when sizing your unit.
Understanding Power Generator Set Price and Return on Investment
The investment varies significantly across the six available models. Smaller 30kW units cost considerably less than the top-range 400kW model. Additional expenses include delivery, installation, fuel storage tanks, and commissioning. Monthly operating costs cover diesel fuel, routine maintenance, and insurance.
A well-maintained generator delivers 15 to 20 years of service life. The return on investment becomes clear when you calculate outage losses. A single factory shutdown can cost $10,000 or more in lost production. Most backup generator systems pay for themselves within the first major outage event. Operators who choose the right capacity avoid both underuse and overload.
Real-World Applications & ROI
A copper mining operation in Antofagasta, Chile faced frequent grid failures. Each outage cost over $50,000 in lost production. The company installed two 200kW power generator sets as primary power. The units ran continuously in 45°C desert conditions without issues.
Monthly fuel costs stayed below $3,200 per unit. Maintenance response time from the local service team averaged 4 hours. The generators achieved 99.5% uptime over 6 months. The company ordered a third unit as backup within the first year.
A garment factory in Dhaka, Bangladesh struggled with daily power cuts. Grid outages lasted 15 to 20 hours weekly during peak summer. The factory risked losing a major European brand contract. The management installed four 150kW power generator sets simultaneously.
The generators powered all sewing lines and cutting equipment continuously. An automatic load management system balanced demand across all units. Production downtime dropped to zero after installation. The factory passed its compliance audit and retained the contract.
FAQ About Portable Quiet Diesel Generator
Calculate your total connected load in kilowatts first. Then add a 20% safety margin for future expansion. This ensures reliable operation without overloading the unit.
Oil changes every 250 hours and filter replacements every 500 hours. Annual inspections cover the cooling system, fuel injectors, and electrical connections. Regular maintenance also prevents unexpected breakdowns and costly repairs.
Properly maintained units operate reliably for 15 to 20 years. Major overhauls may be needed around the 10-year mark.
Yes. The cooling system handles ambient temperatures up to 50°C. Cold weather starting aids are available for sub-zero environments.
Does the unit include remote monitoring?
Modern models feature IoT-compatible controllers with SMS and email alerts. Operators track fuel levels, runtime hours, and fault codes remotely.
Every generator comes with a 2-year warranty or 2,000 running hours. Extended warranty packages are available upon request.
Standard models ship within 7 to 15business days. Custom configurations may require 15 to 25 days for completion. Expedited delivery is available for urgent projects.
Get a Customized Power Generator Set Solution from YG Machinery
Choosing the right power generator set is essential for stable and efficient operation. YG Machinery provides professional power solutions from 30kW to 400kW, including free site evaluation, load analysis, and customized generator recommendations based on your project requirements.
Before shipment, every generator set undergoes strict load testing to ensure reliable performance. Our engineering team provides installation guidance, operator training, and long-term technical support. Spare parts are available for up to 10 years, helping you maintain continuous operation with confidence.
With generators supplied to customers in 60+ countries, YG Machinery is committed to delivering reliable equipment and building long-term partnerships worldwide.
Contact us today for a free quote and customized power generator set solution.
