Modern concrete construction requires high flatness and stable floor quality. Traditional manual screeding results in low precision and additional labor waste. A professional laser concrete leveling machine solves these typical construction problems effectively. It provides accurate, efficient floor leveling for all kinds of building projects.

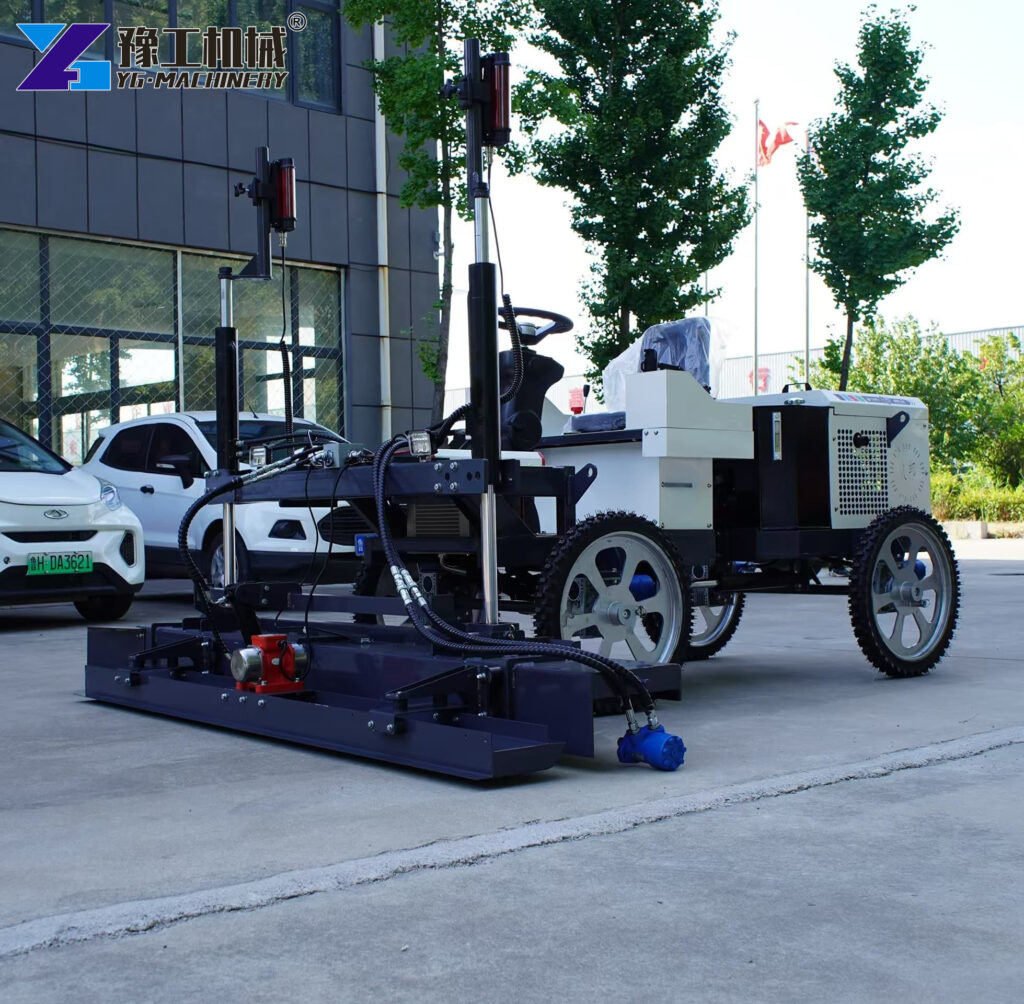

Complete Technical Parameters of Laser Concrete Leveling Machine
Parameter selection determines construction efficiency and floor effect. Different project scales need matched equipment configurations. Below are the full standard specs of our laser concrete leveling machine series.
| Type | YG-CL300 | YG-CL300A | YG-ZP30 (telescopic arm) | YG-ZP40 (telescopic arm) |
|---|---|---|---|---|
| Engine Model | SES/LCONCIN（Honda GX690） | SES/LCONCIN | Yanmar 4TNV94L | Yanmar 4TNV98T |
| Engine Power | 22.8KW / 23ps | 22.8KW / 23ps | 35.5KW / 48hp | 63.9KW / 48hp |
| Fuel Capacity | 20L | 20L | 100L | 140L |
| Hydraulic System | / | Danfoss | Danfoss | Danfoss |
| Leveling Width | 2500mm | 3000mm | 3100mm | 4000mm |
| Leveling Thickness | 60-300mm | 60-300mm | 100-450mm | 100-450mm |
| Telescopic Length | / | 6000mm | 6000mm | 6000mm |
| Travel Speed | 0-4km/h | 0-4km/h | 4-8km/h | 4-8km/h |
| Body Dimensions | 3300x3460x1650mm | 3300x3460x1650mm | 5350x3650x2040mm | 5350x3650x2040mm |
| Body Weight | 1000KG | 1000KG | 5500KG | 8500KG |
| Packaging Dimensions | 3.21*1.81*1.8m | 3.56*1.85*2.05m | 40HQ | 40HQ |
How Laser Concrete Leveling Machine Guarantees Floor Precision
Many construction teams aim for higher floor flatness in standard projects. The laser concrete leveling machine applies advanced laser positioning technology. It builds a stable horizontal reference plane for the whole site. High-precision sensors capture tiny height differences in real time. The intelligent system automatically adjusts the working blade height. It avoids manual errors and repeated rework. This working principle ensures uniform and flat large-area concrete floors.
Core Working Advantages of Laser Concrete Leveling Machine
This laser concrete leveling machine improves overall construction quality and speed. It performs steadily in residential, commercial, and industrial projects. It effectively reduces labor input and material waste. The core advantages that benefit contractors are as follows:
- High flatness accuracy: It controls floor error within 3mm per 3 meters to meet industrial standards.
- Improved efficiency: Continuous walking and leveling shorten overall construction cycles.
- Lower operating cost: It reduces manual dependence and cuts long-term project budgets.
- Reliable power system: Famous brand engines support stable long-term operation.
- Strong adaptability: Multiple models match different width and thickness requirements.

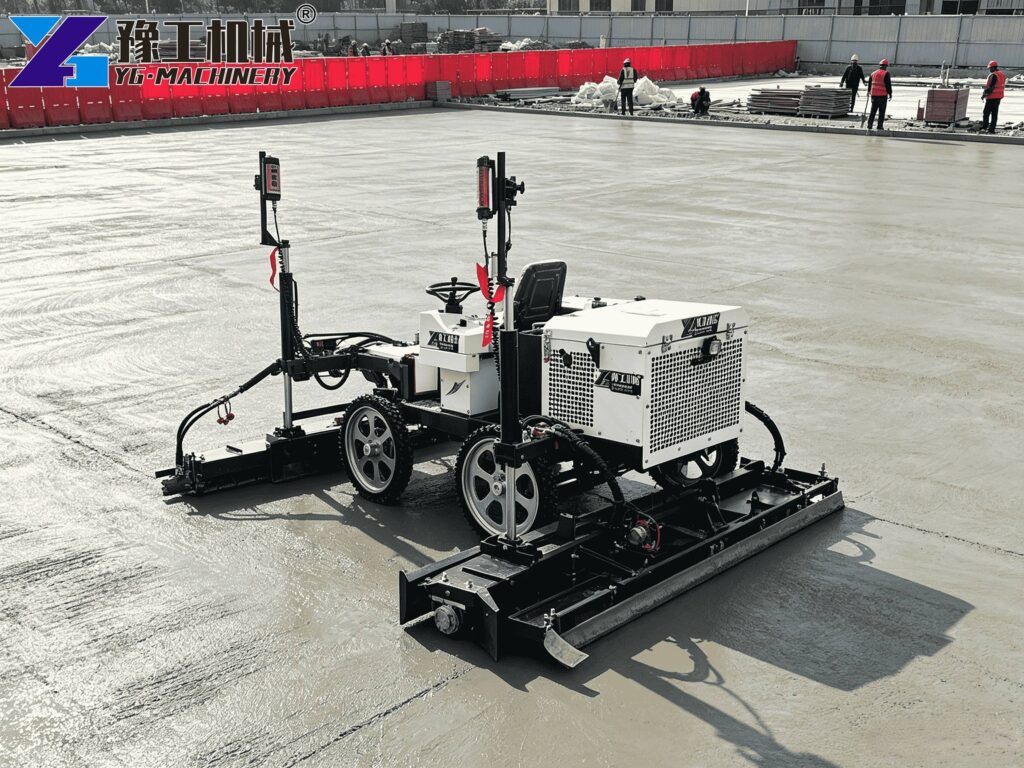

Practical Construction Scenarios of Laser Screed for Concrete
A quality laser screed for concrete adapts to diverse floor construction environments and is widely recognized in modern building engineering. It replaces traditional manual paving and vibration leveling, making it suitable for a variety of large-scale, high-standard floor projects.

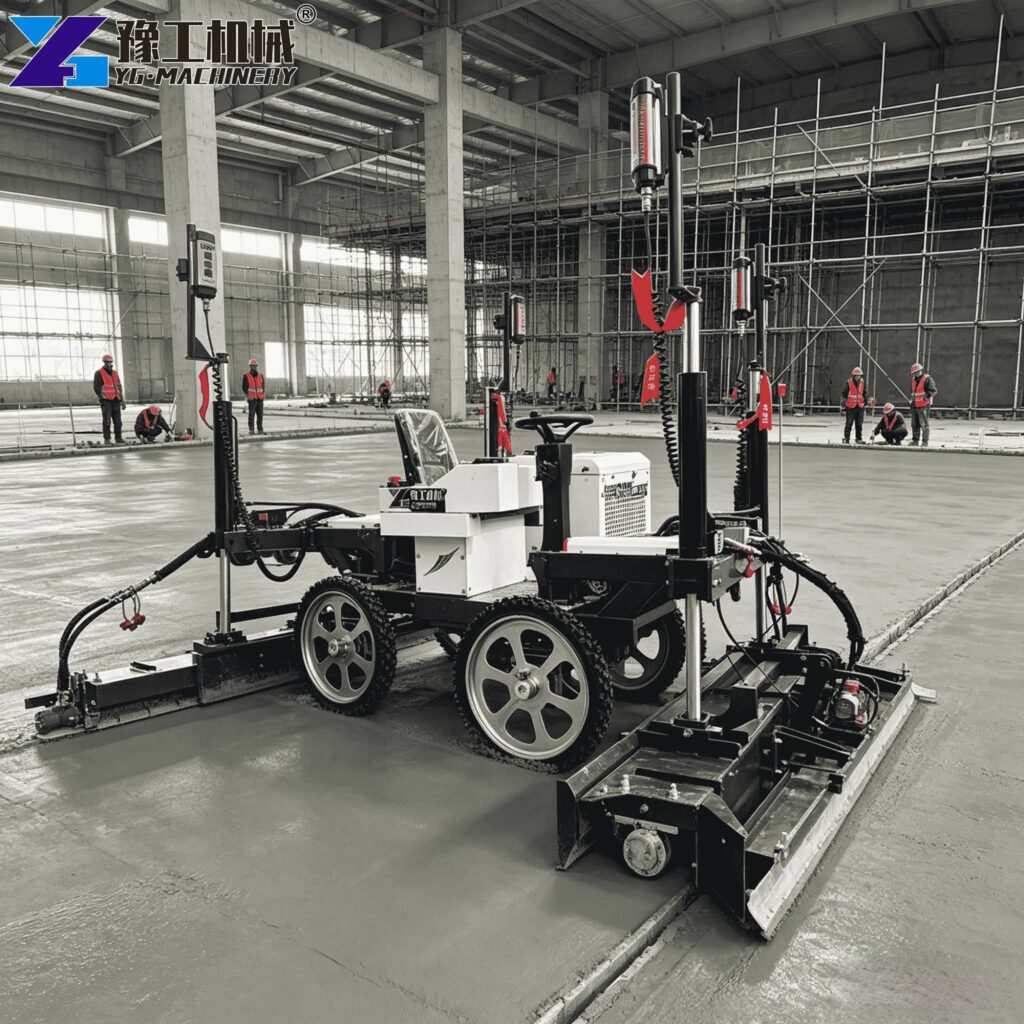

- Industrial factory floors: Large-area leveling for warehouses and production workshops.
- Commercial building floors: Shopping malls, exhibition halls, and office building ground works.
- Public infrastructure: Squares, parking lots, and municipal road concrete paving.
- High-standard interior floors: High-rise building indoor concrete leveling construction.

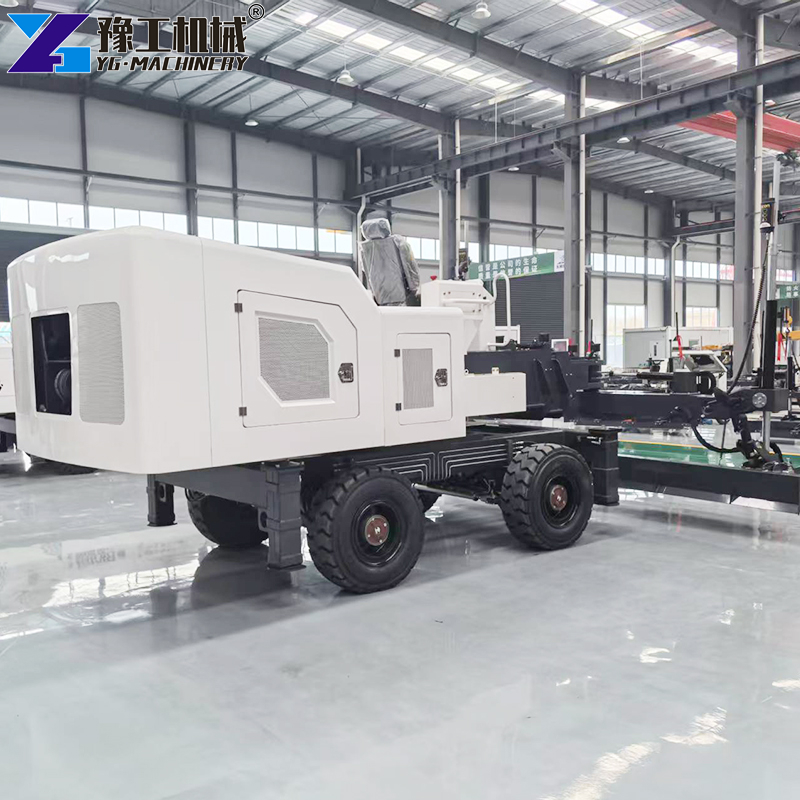

Key Factors Affecting Concrete Laser Screed Machine Price
Many buyers focus on the concrete laser screed machine price before purchasing. The final quotation varies with model configuration and functional design. Engine brand, hydraulic system, and telescopic arm function all affect costs. Working width, body weight, and supporting accessories also create price differences. We provide targeted models for different budget ranges.
Benefits of Choosing Our Concrete Laser Screed for Sale
If you are searching for a reliable concrete laser screed for sale, our equipment is a practical choice. Every machine adopts brand power parts and mature hydraulic systems. All equipment passes strict factory testing before delivery. The finished machine features a low failure rate and easy maintenance. We provide professional pre-sales matching for different project demands.
Global Project Cases of Laser Concrete Leveling Machine
Our laser concrete leveling machine has been widely applied in global commercial and industrial construction projects. It delivers stable, high-precision leveling results for different site conditions. In large Australian warehouse construction projects, our standard models handle wide-area concrete paving efficiently. The equipment maintains consistent flatness across continuous floor surfaces. It effectively reduces manual correction work and shortens overall construction cycles. All finished floors meet local industrial building flatness standards. In South American municipal square and parking lot projects, our telescopic arm models show strong adaptability. They flexibly adjust leveling width to fit irregular site layouts. The stable hydraulic system ensures uniform concrete thickness throughout the working process. Many contractors choose our laser concrete leveling machine for its low failure rate and ease of on-site operation. It helps construction teams save labor costs and improve overall project quality.
In Australian warehouse construction projects, our equipment completes large-area floor paving efficiently. The finished floor flatness fully meets local industrial building standards. In South American municipal square projects, the telescopic model adapts to complex site shapes. It greatly improves overall construction progress.
YG Machinery Brand Strength & Full-Cycle Service Support
YG Machinery is a professional manufacturer of concrete construction machinery. We focus on laser leveling equipment research, development, and export. We implement complete quality inspection procedures for every finished machine. All products comply with international construction machinery safety standards.
We provide a one-stop service for global customers. Our pre-sales team analyzes project conditions and recommends suitable models. We support personalized configuration adjustment. After-sales services include remote technical guidance, regular maintenance tips, and original spare parts supply.
Real Customer Testimonials
Our laser leveling equipment has accumulated a good market reputation worldwide.
“We have used YG’s laser leveling machines for multiple warehouse projects. The precision is stable and the operation is simple. It saves much labor cost for our team.” — Martin, Construction Contractor, Australia
“The machine runs stably for long working hours. The after-sales team provides fast and professional technical support.” — Carlos, Engineering Company Owner, Spain
FAQs of Laser Concrete Leveling Machine for Buyers
Most new buyers have common questions about laser leveling equipment. We sort out authoritative and practical answers for your reference.
Telescopic arm models with 4-8km/h travel speed fit large and continuous construction sites.
Yes. Different models support 60mm to 450mm adjustable leveling thickness.
YG Machinery provides personalized customization for special construction scenarios.
Get a Custom Quotation for Laser Concrete Leveling Machine
High-quality leveling equipment can greatly improve your project quality and efficiency. It helps you gain more competitive advantages in construction bidding. If you have floor leveling demands, feel free to contact us.
Submit your project information now to get a free customized solution and an accurate quotation. Our professional team will reply within 8 hours.
