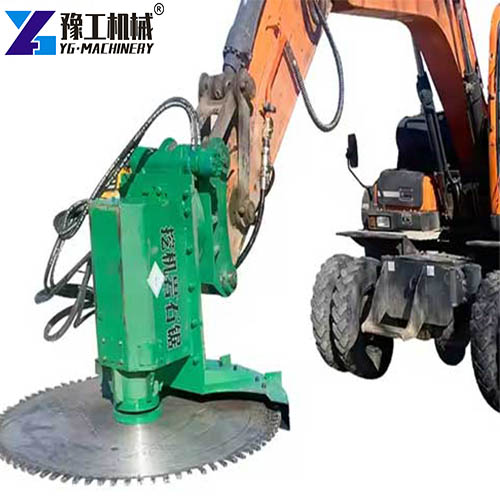

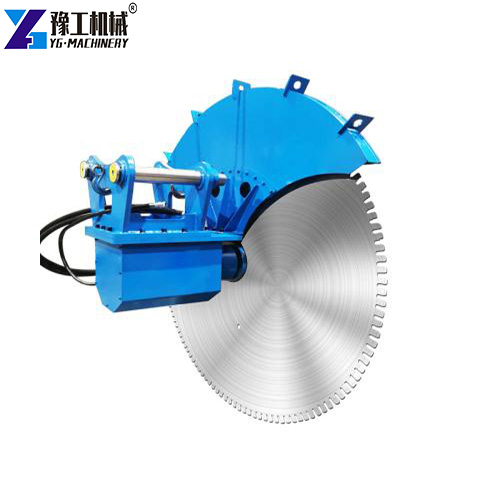

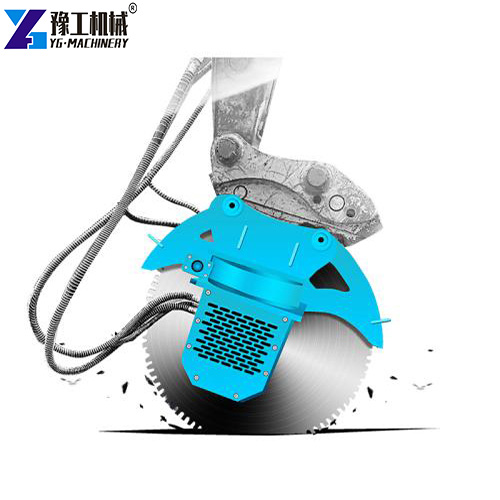

A rock saw machine is a hydraulic attachment that turns an excavator into a powerful cutting tool for hard materials like granite, concrete, reinforced steel, and frozen ground. It uses a circular saw blade with wear-resistant alloy teeth, driven directly by the excavator’s hydraulic system. Unlike breakers or crushers, it makes clean, precise cuts with minimal vibration, no flying debris, and low noise. If your job requires fast, accurate cutting of rock or concrete, contact YG Machinery for model recommendations and a factory-direct price.
Key Parameters of YG Rock Saws for Excavators
| Model | YG-J1 | YG-J2 | YG-J3 | YG-Q1 | YG-Q2 |
| Suitable excavator type | 2-4T | 6-9T | 10-18T | 20-28T | 30-45T |
| Circular saw diameter | 0.4-0.8m | 1.2-1.6m | 1.8-2.2m | 2.2-2.6mm | 2.6-3.2mm |
| Cutting slit width | 5mm | 9mm | 14mm | 30mm | 30mm |
| Max. Cutting depth | ≤250mm | ≤600mm | ≤900mm | ≤1100mm | ≤1400mm |
| Rated pressure | 30Mpa | 30Mpa | 30Mpa | 35Mpa | 35Mpa |
| Recommended flow | 30L/min | 80L/min | 120L/min | 220L/min | 300L/min |
Why choose this Rock Saw Machine?
Precision cutting
It can cut straight lines, curves, or even square holes. This is impossible with a breaker. For example, when you need to cut a trench for pipes inside existing concrete, the saw leaves clean edges that need no patching.
Low vibration and noise
A breaker shakes the whole machine and the ground around it. That can damage nearby structures or crack plaster walls. The excavator rock saw produces mostly rotational vibration, which is much lower in amplitude. Noise levels are roughly half that of a breaker. This makes it suitable for urban sites with noise restrictions.
No fly rock
Breakers send sharp pieces flying. That requires protective cages or clearing the area. The rock saw has a guard and cuts without projectile risk. Workers can stay closer, increasing productivity.
High efficiency in hard material
Cutting a 30cm thick reinforced concrete slab with a breaker can take 20 minutes and wear out the tool constantly. A rock saw machine does the same job in 3 minutes. The blade cuts through rebar as easily as through concrete.
Versatile blade options
Change the blade, and it cuts asphalt, frozen ground, or even steel plates. Diamond blades are available for very hard granite. Carbide-tipped blades work best for general concrete and rock.
Applications of a Hydraulic Concrete Cutting Saw
- Road and bridge repair: When a section of highway needs replacement, the saw cuts around the damaged area. The result is a perfect rectangle. The old material lifts out easily. The new concrete or asphalt bonds well to the clean-cut edges. No jackhammer damage means fewer cracks later.

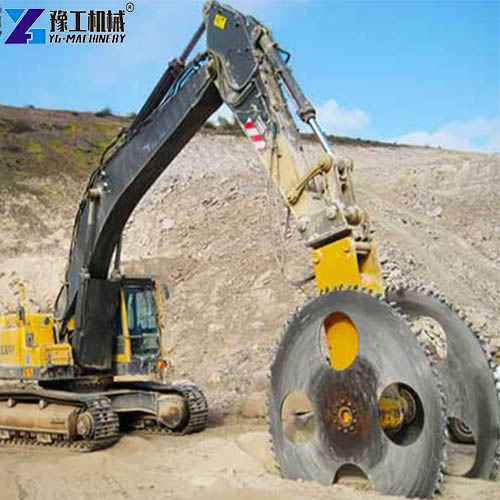

- Quarry block extraction: Instead of blasting, quarry operators use a rock saw machine to cut natural stone into blocks. The cut surface is smooth, so less waste when processing into slabs. This method also avoids microfractures caused by explosives.
- Trenching for utilities: Laying water pipes or fiber optic cables often requires a narrow trench through rock. The saw cuts two parallel lines. Then, a breaker or a splitting tool removes the middle strip. This method uses less fuel and finishes faster than hammering all the way.
- Building demolition: For selective demolition, like cutting an opening for a new door in a concrete wall, the saw works from the outside. No chipping hammer damage to the remaining wall. It also cuts through floor slabs to create stair openings.
- Underground tunnels: In tunneling, the hydraulic concrete cutting saw shapes the tunnel profile after blasting. It removes overbreak and smooths the walls. Some models work upside down, allowing the cutting of tunnel ceilings.
Maintenance tips for long service life
- Check the hydraulic motor bolts every 8 hours. Vibration can loosen them. Tighten to the torque value in the manual.
- Inspect the blade daily. Look for missing teeth or cracks near the arbor hole. A damaged blade can break at full speed. Replace it immediately.
- Grease the blade shaft bearings every 10 hours. Use high-temperature lithium grease. The bearing is sealed, but dirt can still enter through the guard gap.
- Flush the cooling water system weekly. Sediment from the water tank blocks the nozzles. Clean nozzles with a thin wire. No water flow means overheating and premature tooth loss.
- Store the saw on a wooden pallet, not directly on the ground. The blade teeth should not touch concrete or steel when parked. That dulls them unnecessarily.
Contact YG Machinery for Your Excavator Rock Saw
YG Machinery is an integrated manufacturer and trader with over 10 years of experience in excavator attachments, exporting to more than 20 countries. Every rock saw machine goes through strict quality checks, and we offer reliable after‑sales support with fast delivery. If you need a dependable rock saw for your project, tell us your excavator model, required cutting depth, and typical material. We will provide the right solution and a free quote within 24 hours. Contact YG Machinery today.
