Blocked sewers and clogged drains cost cities and factories millions every year. Old cleaning methods are slow and put workers at real risk. The pipeline dredging robot from YG Machinery offers a smarter and safer way forward. It removes sediment, rocks, and solid waste from submerged pipelines without any worker entering the pipe.
YG Machinery produces six models in this series. The lineup covers pipes from 500mm to 1200mm in width. Every unit uses a tracked chassis, hydraulic pump, and wireless remote control for safe operation. Below you will find complete specifications, working details, and practical buying advice.
Remote Controlled Pipeline Dredging Robot Specifications
| Parameter | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
|---|---|---|---|---|---|---|
| Robot Dimensions | 1500×500×650mm | 1500×600×650mm | 1600×700×650mm | 1600×850×700mm | 1650×960×750mm | 1900×1200×750mm |
| Dredging Width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Robot Weight | 320kg | 350kg | 380kg | 400kg | 420kg | 500kg |
| Pump Output | 3 inch | 3 inch | 4 inch | 4 inch | 4 inch | 4 inch |
| Flow Rate | 100 m³/h | 100 m³/h | 200 m³/h | 200 m³/h | 200 m³/h | 200 m³/h |
| Motor Power | 22kW | 22kW | 30kW | 30kW | 30kW | 45kW |
| Particle Size | 15mm | 15mm | 38mm | 38mm | 38mm | 60mm |
| Track Speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s |
| Hydraulic Pressure | 0-16MPa | 0-16MPa | 0-16MPa | 0-16MPa | 0-16MPa | 0-16MPa |
| Hydraulic Hoses | 50m | 50m | 50m | 50m | 50m | 50m |
| Control | Wireless | Wireless | Wireless | Wireless | Wireless | Wireless |
| Lighting | LED×2 | LED×2 | LED×2 | LED×2 | LED×2 | LED×2 |
YG Machinery manufactures each pipeline dredging robot to strict quality standards. The hydraulic system runs at 0-16MPa for reliable power. Wireless remote control keeps the operator safe above ground. Dual LED lights provide clear vision in dark pipes. The reeling system manages cables at 0-10r/min for smooth operation.
Underground Drain Cleaning Robot Working Principle
The pipeline dredging robot works through a direct and effective method. The operator lowers the unit into the pipe at an access point. The steel-tracked chassis grips the wet pipe floor. It moves forward under hydraulic power at up to 15 meters per second.
The high-capacity pump then pulls up all loose material. Sediment, sand, gravel, and debris flow through the discharge hose. The operator watches and guides the unit from the surface. A wireless controller gives full command of speed and direction.
This system removes the need for confined space entry. Workers stay in fresh air at all times. The drain cleaning robot also works in total darkness thanks to dual LED lamps. Each pass clears a wide swathe of the pipe floor clean.
Why the Pipeline Dredging Robot Outperforms Manual Methods
Why are more teams switching to the pipeline dredging robot? The reasons are clear when you look at real job data:
- No confined space risk: Workers never enter the pipe. Toxic gas and structural collapse dangers disappear.
- Speed: Flow rates reach 200 m³/h with the larger models. A single unit does the work of ten manual laborers.
- Deep reach: The 50-meter hydraulic hose lets the robot work far from the access point. Long pipe runs need just one entry.
- Strong suction: The pump handles particles up to 60mm. Rocks, bricks, and solid waste move through easily.
- All-terrain tracks: The chassis grips concrete, steel, and HDPE pipe floors. It stays stable on steep slopes.
- One-person operation: A trained operator runs the full job alone. Labor costs drop sharply.
These benefits apply across every industry that manages underground pipe networks.
Sewer Pipeline Dredging Robot in Real Applications
The pipeline dredging robot handles many different cleaning tasks. Here are the most common fields where it delivers results:
- City sewer networks: Municipal crews use the robot to clear storm drains before the rainy season. Regular use stops blockages that cause street flooding.
- Factory discharge lines: Plants keep waste output pipes clear of scale and buildup. Clean lines prevent unplanned production stops.
- Cooling water systems: Power stations clean intake pipes to keep water flow steady. Full flow protects turbine efficiency.
- Port drainage: Harbor teams remove silt from outfall structures. Open channels keep port areas dry and safe.
- Mining slurry lines: Mining crews clean abrasive pipelines that carry tailings. The tough steel build resists heavy wear.
- Agricultural canals: Farm districts clear irrigation channels of mud and roots. Clean channels deliver water to fields without waste.
The robot also handles emergency cleanup after floods. When debris fills a main sewer line, the unit deploys fast and restores flow in hours.
Sewer Cleaning Robot Price and Value Analysis
What does a sewer cleaning robot price look like in real terms? The upfront cost depends on the model and optional features. But the return on investment is fast and measurable.
A mid-range YG-800 costs far less than one year of manual labor. That covers cleaning the same pipe network by hand. After purchase, yearly running costs stay low. One operator, basic hydraulic fluid, and occasional hose replacement cover most expenses. Most buyers see full payback within 12 to 18 months.
Several factors affect the final price:
- Model size: The YG-500 costs less than the YG-1200 due to simpler parts.
- Pump capacity: Higher flow rate models carry a higher tag.
- Custom options: Extended hoses, special track pads, or extra LED units add cost.
- Order quantity: Bulk orders receive better unit pricing from YG Machinery.
For exact pricing on the model you need, contact YG Machinery directly. Our team will provide a detailed quote based on your project specs.
Sewer Cleaning Robot for Sale FAQ
How deep can the pipeline dredging robot operate?
The standard 50-meter hose supports work at depths up to 20 meters. For deeper installations, YG Machinery offers extended hose configs. The hydraulic power stays full at any depth within the rated range.
Which pipe materials work with this robot?
The unit operates in concrete, steel, PVC, and HDPE pipes. The tracked chassis adapts to different inner surfaces. Optional grip pads improve traction on very smooth walls.
What daily maintenance does it need?
Rinse the pump with clean water after each use. Inspect hoses and connections for wear. Lubricate track rollers on the schedule in the manual. YG Machinery supplies all spare parts and full maintenance guides.
Can the robot handle large solid objects?
Yes. The YG-1200 handles particles up to 60mm in diameter. Smaller models handle up to 15mm or 38mm depending on the pump. For pipes with mixed debris, the YG-800 or YG-900 offers the best balance.

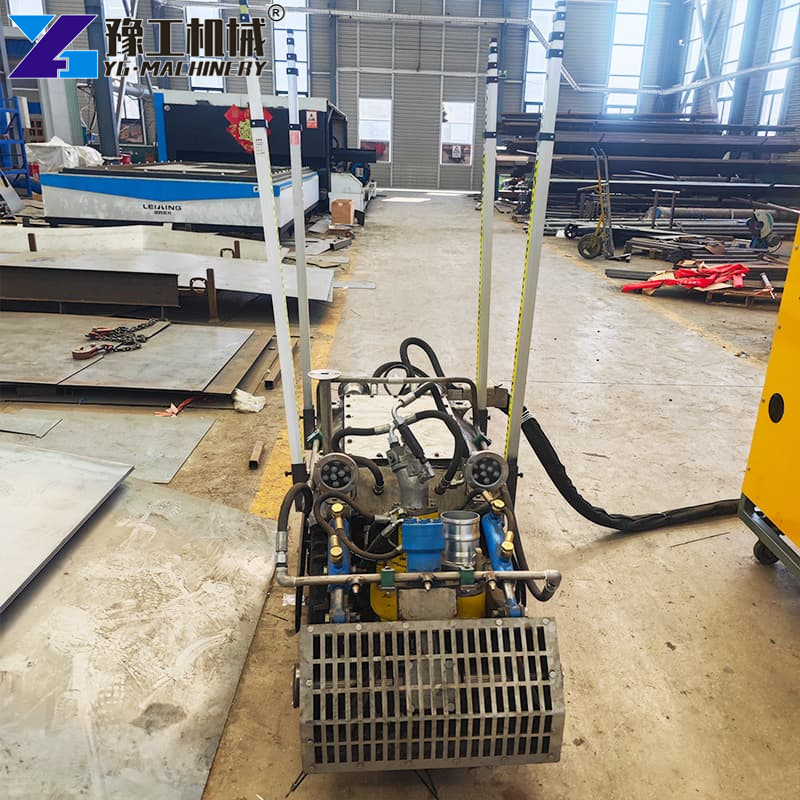

Sewer Dredging Robot Supplier — YG Machinery
YG Machinery (YU GONG Heavy) is a trusted sewer dredging robot supplier with years of experience. Our factory produces pipeline dredging robots, GRC spray machines, drilling rigs, and egg tray lines. Each unit goes through full testing before shipment.
Our customer service covers every stage of your project:
- Project analysis: Our engineers review your pipe network and suggest the best model.
- Custom builds: We modify specs to fit special site conditions.
- On-site setup: Technical staff guides the correct installation and first run.
- Operator training: Your team learns safe and efficient operation.
- Ongoing support: Lifetime technical help, fast spare part delivery, and maintenance advice.
YG Machinery exports to over 50 countries across Asia, Africa, South America, and the Middle East. Clients choose us for reliable machines, honest pricing, and responsive after-sales care.
What Our Clients Say
A water department in Thailand bought two YG-700 units for city drain maintenance. They previously hired outside crews for annual cleaning at high cost. With the pipeline dredging robot, they cut cleaning costs by 60 percent and finished twice as fast.
“The robot paid for itself in the first dry season. Our own team runs it now. No more outside contractors.”
— Somchai, Drainage Supervisor, Thailand
A food processing plant in Colombia used the YG-900 to clean its waste discharge line. Grease and food residue built up every month and caused backups. After deploying the robot, blockage incidents dropped to zero.
“We had constant line problems before. This machine keeps our pipes clear with one operator and one hour per week.”
— Valentina, Plant Maintenance Lead, Colombia
Get Your Free Quote Now
Need a pipeline dredging robot for your next cleaning project? YG Machinery is ready to help. Reach out today for a free quote or a custom solution.
- Email: admin@yugongheavy.com
- WhatsApp / Phone: +86 183 3715 2861
Contact YG Machinery now and let us build a plan that fits your budget and your pipes.
