Traditional concrete pouring relies on manual handling and fixed equipment. It suffers from low speed, uneven material distribution, and high labor costs. Narrow construction spaces and long-distance conveying further restrict construction progress. A professional trailer-mounted concrete pump solves these common construction bottlenecks effectively. It adopts a full hydraulic drive to deliver concrete through pipelines steadily. It improves pouring quality and cuts on-site labor investment greatly. Contact our team to get your free customized solution and accurate quotation.

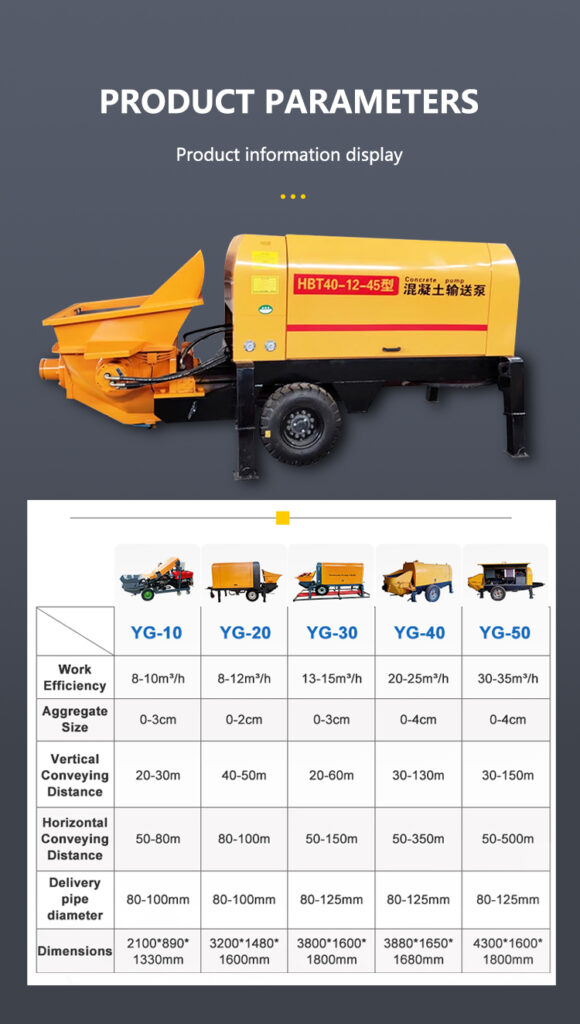

Trailer Mounted Concrete Pump Full Technical Parameter Table
YG Machinery provides four mature models to cover small, medium, and large pouring demands. Different efficiency and conveying distance specifications adapt to residential, municipal, and bridge projects. Below are complete standard parameters for accurate model selection.
| Spec/Model | YG-10 | YG-20 | YG-30 | YG-40 |
|---|---|---|---|---|
| Work efficiency | 6m³/h | 12m³/h | 15-18m³/h | 20-22m³/h |
| Motor power | 15kw | 22KW | 37KW | 45KW |
| Working pressure | 15MPa/10MPa | 18MPa/12MPa | 18MPa/15MPa | 23MPa/15MPa |
| Aggregate size | 0.5- 1.5 cm | 0.5- 2 cm | 0.5- 2 cm | 0.5- 2 cm |
| Vertical/Horizontal conveying distance | 20m/50m | 40m/80m | 80m/100m | 120m/260m |
| Diameter of conveying pipe | 80mm | 80mm | φ80(100)mm | φ100(80)mm |
| Weight | 600KG | 1600kg | 2200kg | 2400kg |
| Dimensions | 1800*700*1100mm | 3400x1200x1600mm | 3800x1500x1600mm | 4000x1500x1550mm |
| Standard configuration | 10m steel pipe, 10m hose | 40m steel pipe, 10m hose | 90m φ80 steel pipe, 10m hose | 120m φ80 steel pipe, 10m hose |
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
Working Principle & Core Features of Trailer Mounted Concrete Pump
This hydraulic-driven pumping device adopts a mature reciprocating piston working structure. It relies on hydraulic pressure to complete concrete suction and discharging cycles. The whole working process runs smoothly with stable material output.
Concrete materials enter the hopper after mixing. Dual hydraulic cylinders push concrete pistons for alternating reciprocating movement. The S-valve switches channels to realize continuous feeding and pumping. It effectively avoids material segregation and pipe blockage issues.
As a reliable hydraulic cement pump, it matches different pipeline layouts flexibly. It can cooperate with vibratory plate compactor and road roller to finish integrated concrete construction. It adapts to complex pouring paths on various job sites.
The whole machine adopts an integrated trailer design. It supports free towing and rapid site transfer. It requires no complicated installation steps before construction.
Key Advantages of Trailer Mounted Concrete Pump for Construction Projects
Most construction projects face problems of low pouring efficiency and high labor dependence. Ordinary manual pouring cannot meet large-scale and long-distance construction demands. This cement concrete pump solves practical construction pain points with multiple optimized designs.
- Flexible Long-Distance Conveying: The maximum horizontal conveying distance reaches 260m. The vertical conveying height can reach 120m. It easily covers high-rise and large-area construction zones.
- Adjustable Working Efficiency: Four models support output from 6m³/h to 22m³/h. Users can match suitable equipment according to project scale.
- Stable Hydraulic Performance: Maximum working pressure reaches 23MPa. It stably conveys standard aggregate sizes from 0.5cm to 2cm without blockage.
- High Site Adaptability: Compact body size suits narrow construction spaces. The trailer structure realizes flexible transition between multiple working areas.
- Low Operation Cost: Electric power design reduces fuel consumption. Optimized hydraulic circuit lowers component wear and failure frequency.
As professional concrete pump suppliers, we strictly control every production process. All equipment undergoes pressure testing and continuous running inspection before delivery.
Common Application Scenarios for Cement Concrete Pump Equipment
The versatile trailer-mounted concrete pump covers residential, municipal, and traffic engineering fields. Its stable conveying capacity adapts to various concrete pouring environments.
- Residential Building Construction: Complete floor slab, wall, and foundation concrete pouring. It ensures uniform material distribution and improves building structural stability.
- Municipal Infrastructure: Used for sidewalk, plaza, and community foundation pouring. It suits dense urban construction environments with limited space.
- Bridge & Tunnel Engineering: Enables long-distance and high-elevation concrete conveying. It solves the difficulty of material transportation in closed spaces.
- Rural Construction Projects: Adapt to scattered small-scale construction sites. The portable trailer design facilitates frequent equipment transfer.
- Water Conservancy Projects: Complete dam and foundation reinforcement pouring. Stable pressure ensures dense concrete forming quality.
Real Overseas Project Cases of Trailer Mounted Concrete Pump
Indonesia Residential Community Construction Project
A local construction contractor undertook a large residential community development project in Indonesia. The project included dozens of multi-story residential buildings and supporting municipal roads. The construction site had dense buildings and narrow operating passages.
Traditional large pump trucks could not enter the construction area. Manual concrete pouring caused slow progress and inconsistent pouring density. The client needed compact and high-efficiency pumping equipment.
The client selected our YG-30 trailer-mounted concrete pump for continuous construction. The equipment provided 15-18m³/h stable working efficiency and 18MPa stable working pressure. It perfectly matched local standard concrete aggregate sizes.
With a 100 m horizontal conveying distance, the pump covered all building pouring areas. It effectively solved the narrow-site construction problem. The project shortened the overall construction cycle by nearly 20 percent. All concrete layers passed local engineering quality inspection.
Ghana Rural Road Renovation Project
A Ghanaian engineering company carried out rural road hardening and renovation work. The construction sites were scattered in remote rural areas. The road conditions were poor, with no fixed supporting power facilities.
The client required equipment with convenient transportation and stable outdoor performance. Frequent site transfers also demanded high equipment flexibility.

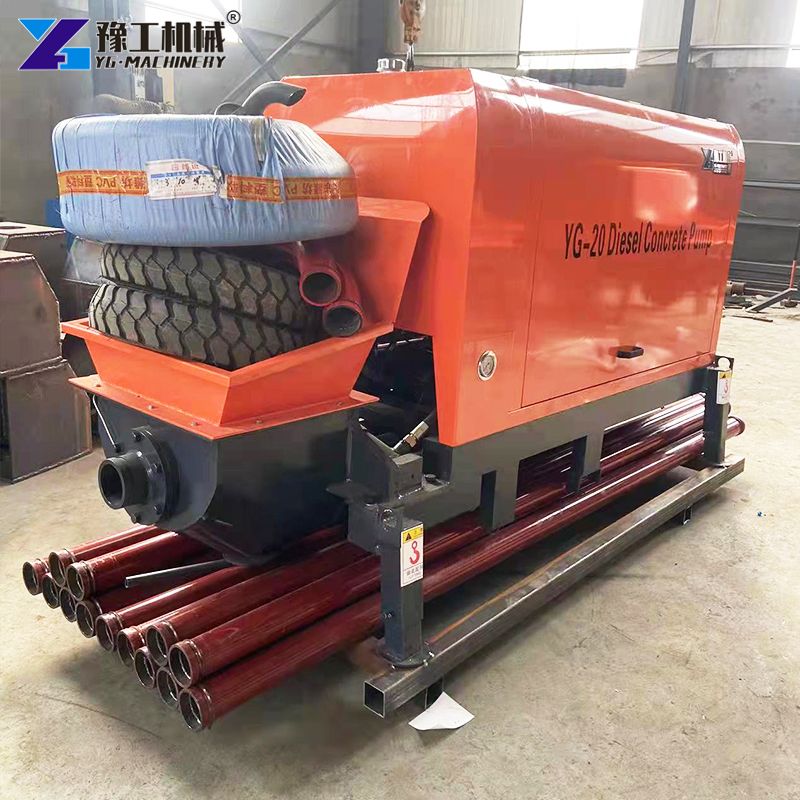

Our YG-20 trailer-mounted concrete pump became the core construction equipment. The lightweight body of 1600kg supported easy towing and moving. The 22KW stable power output ensured long-hour continuous operation.
The equipment stably completed road foundation and surface concrete pouring. Its 80m horizontal conveying distance reduced pipeline layout difficulty. It greatly saved manual conveying and pouring costs. The client finished over 30 kilometers of rural road renovation with zero equipment failure.
Request Solution for My Business
FAQs About Hydraulic Concrete Pump Selection & Operation
A1: Match models according to pouring area and conveying distance. Small projects suit YG-10/YG-20, while large sites should choose YG-30/YG-40.
A2: All models support 0.5- 2 cm standard aggregate sizes. It meets most ordinary concrete pouring standards.
A3: Keep uniform feeding and regular pipeline lubrication. Stable hydraulic pressure also reduces blockage risks effectively.
A4: The integral trailer design supports flexible towing. It adapts to frequent transfers between multiple construction sites.
A5: Clean pipelines after use and check hydraulic oil regularly. Timely replacement of worn parts extends service life.
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
Concrete Pump Supplier-YG Machinery | Reliable Quality & Full-Cycle Service
YG Machinery is a trusted manufacturer of construction engineering equipment. We supply stable trailer-mounted concrete pump and complete supporting construction machinery. Our product lineup includes small water well drilling rig, core drilling rig and rotary drilling rig for diversified project demands.
As professional concrete pump suppliers, we guarantee strict factory testing for every unit. All equipment meets international construction machinery standards with low failure rates.
We provide full one-stop service for global clients. Pre-sales teams offer free model selection and project solution customization. We tailor equipment configurations for special construction conditions.
Complete after-sales support includes remote technical guidance, operation training, and full spare parts supply. Long-term maintenance guidance helps clients control operating costs.
If you need high-efficiency concrete pumping equipment for your projects, contact YG Machinery now. Get your free professional quotation and customized construction solution within 8 hours.
