Traditional manual concrete pouring wastes labor and delays construction progress. Narrow working spaces and high-rise positions also limit manual operation efficiency. A concrete delivery pump effectively solves these common construction bottlenecks. It delivers stable, long-distance concrete conveying for all kinds of building and municipal projects.
Technical Specifications of Concrete Delivery Pump
YG Machinery provides four mature concrete delivery pump models for diverse project demands. Each unit supports dual electric and diesel power modes. Different configurations cover small, medium, and large construction scenarios.
| Model | YG-10 | YG-20 | YG-30 | YG-40 |
|---|---|---|---|---|
| Engine | Electric/Diesel | Electric/Diesel | Electric/Diesel | Electric/Diesel |
| Power | 15kw | 22kw | 37kw | 45kw |
| Max. aggregate size | 15mm | 20mm | 30mm | 40mm |
| Conveying Capacity | 6m³/h | 10-15m³/h | 15-30m³/h | 30-40m³/h |
| Horizontal conveying distance | 100-120m | 100-120m | 150-200m | 200-350m |
| Vertical conveying distance | 20-50m | 50-60m | 80-100m | 120-140m |
| Pipe diameter | 80-100mm | 80-100mm | 80-100-125mm | 80-100-125mm |
| Outlet diameter | 80mm | 100mm | 125mm | 125-150mm |
| Material tank diameter | 100mm | 120mm | 140-160mm | 160-180mm |
| Dimension | 1.8×0.7×1.1m | 2.8×1.1×1.3m | 4*1.4*1.5m | 4*1.5*1.5m |
| Weight | 600kg | 900kg | 1800kg | 2500kg |
How Does Concrete Delivery Pump Achieve Stable Conveying Work?
A professional concrete delivery pump relies on mature hydraulic circulating transmission technology. It is the core reason for its stable and continuous conveying performance. The equipment adopts a dual piston reciprocating propulsion structure. It pushes mixed concrete materials through seamless circulating operation.
This working method delivers steady and uniform material propulsion force. It effectively prevents concrete segregation, solidification, and pipeline leakage. The built-in adjustable hydraulic system supports real-time pressure adjustment. It adapts to different concrete ratios and various aggregate sizes from 15mm to 40mm.
Reasonable pipeline layout reduces material resistance during conveying. It lowers pipeline blockage risks in long-distance construction. The whole operating process runs smoothly with low vibration. It guarantees consistent pouring density and a flat construction surface. The flexible body structure also adapts to complex and narrow job site layouts.

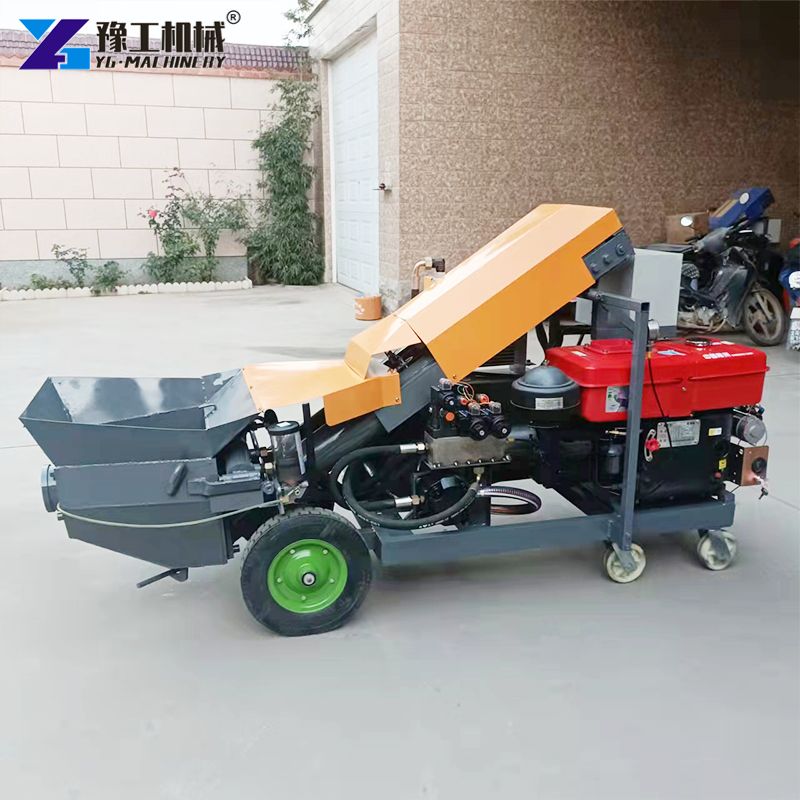

What Advantages Do Mobile Mini Concrete Pump Units Provide?
A mobile mini concrete pump features compact size and lightweight body design. It solves the movement difficulties of large fixed pumping equipment. It suits small-scale and scattered construction projects perfectly.
- Flexible site transfer: Light body allows fast movement between working areas.
- Wide adaptability: Dual power modes fit urban and remote job sites.
- Long conveying range: Max horizontal distance reaches 350m and vertical height 140m.
- High working efficiency: Max hourly output reaches 40m³ for rapid construction.
- Low failure rate: Optimized hydraulic structure reduces pipeline blockage risks.

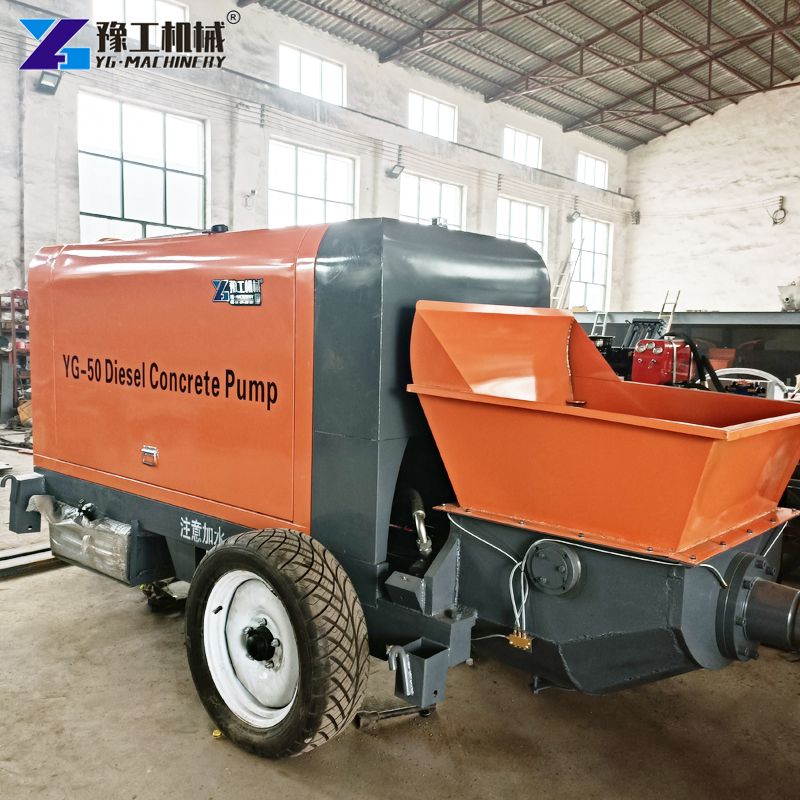

Why Choose Shotcrete Concrete Pump Trailer for Sale for Construction
Many medium and long-term construction projects prefer a shotcrete concrete pump trailer for sale for flexible and stable operation. This trailer-type concrete delivery pump integrates a heavy-duty towing chassis and main pump body. It requires no professional installation before use. It supports quick towing, fast relocation, and flexible fixed-point deployment on various job sites.
The professional trailer-mounted structure greatly enhances overall operational stability. It effectively offsets equipment vibration during high-volume continuous pumping. It reduces concrete material pulsation and uneven discharging problems. The stable hydraulic output keeps consistent pouring density and flat surface quality. It is ideal for large-area wall plastering, floor pouring, and municipal shotcrete construction. It lowers finished product defect rates and improves overall construction standardization.
Trailer-mounted structure enhances operational stability during high-volume pumping. It effectively reduces equipment vibration and material pulsation. It maintains consistent pouring quality for large-area wall and floor construction.
Trailer Concrete Pump vs Line Concrete Pump: Which Is Better?
Many buyers struggle to choose between a trailer concrete pump and a line concrete pump. Both belong to the concrete delivery pump series but fit different job conditions.
A trailer concrete pump comes with a complete towing chassis. It supports free movement on different construction sites. It suits frequent site transfers and scattered project areas. Most shotcrete concrete pump trailer for sale adopts this flexible structure.
A line concrete pump adopts a fixed integrated body structure. It works with matched pipeline sets to finish stable long-distance concrete conveying. It delivers steady and consistent output for long-cycle, fixed-position construction sites. This pump type suits large-scale municipal engineering, high-rise buildings and centralized pouring projects.
For small, scattered, and frequently moving projects, trailer pumps are more practical. For centralized, large-volume pouring work, line pumps deliver higher stability and efficiency. Users can select models based on actual project scale and site environment.
YG Machinery supplies both trailer concrete pumps and line concrete pumps for global clients. We have complete model specifications to match different construction scenarios. Our team can recommend the most suitable concrete delivery pump according to your site conditions and construction volume demands.
Common Application Scenarios of Concrete Delivery Pump
The versatile concrete delivery pump covers multiple civil and municipal construction fields. It works well in narrow spaces and high-rise construction environments.
- Residential building floor, wall, and foundation concrete pouring
- Rural construction, villa renovation and small civil engineering projects
- Municipal road, bridge and tunnel infrastructure construction
- Water conservancy slope protection and flood control engineering projects
- Underground garage and narrow space concrete conveying operations
Overseas Project Case of Our Cement Concrete Pump
Our cement concrete pump has stable sales networks across more than 80 global countries. Major markets include Southeast Asia, Africa, the Middle East, and Latin America. We have many long-term cooperative contractors in the Philippines. Stable performance and reliable after-sales support win consistent client trust.
In a 2026 rural community building project in the Philippines, local engineering teams adopted our YG-30 concrete delivery pump. The local construction features scattered residential buildings and narrow village roads. Large fixed pump equipment cannot adapt to frequent site transfers.
The equipment stably maintained 15-30m³/h conveying capacity. It supported 100m vertical and 200m horizontal long-distance delivery. Its flexible mobility perfectly suited scattered Philippine village construction sites. It shortened the whole project cycle by 20% and reduced manual labor input significantly. This case proves the excellent stability and practicability of our pumping equipment in Southeast Asian civil construction scenarios.
Why Trust YG Machinery for Concrete Delivery Pump Equipment
YG Machinery is a professional manufacturer focusing on construction concrete pumping equipment. Every concrete delivery pump passes strict factory debugging and pressure testing. All products comply with international construction industry standards.
We provide full-cycle one-stop services for global clients. Our professional pre-sales team offers accurate model selection and project matching solutions. We customize pipe diameter and power configurations for special construction demands. Complete after-sales support includes remote technical guidance, on-site training, and long-term spare parts supply. We help clients avoid construction delays caused by equipment failure.
Get Free Custom Quote for Concrete Delivery Pump
Selecting a suitable concrete delivery pump greatly improves construction efficiency. It cuts labor costs and shortens project delivery cycles effectively.
Contact YG Machinery now to get your free tailored solution and accurate quotation. Share your conveying distance, pouring height, and project type. We will reply with detailed technical plans within 8 hours.
