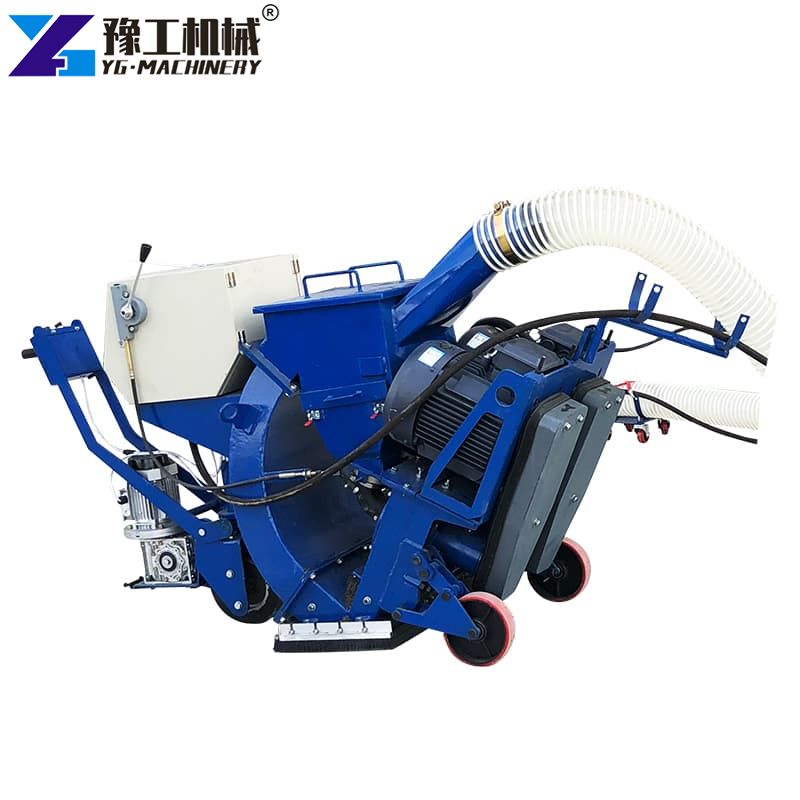

Concrete floor preparation is a critical step before applying coatings, paints, or overlays. Poor surface preparation leads to coating failure, costly rework, and project delays. Many contractors still rely on grinding or acid etching methods that are slow and messy. A shot blasting machine for concrete delivers fast, clean, and consistent surface profiling results. It removes laitance, coatings, and contaminants while creating an ideal texture for new coating adhesion. Contractors who switch to this method complete projects faster with better long-term outcomes.
| Parameter | YG550/600 (Double) | YG-850 (Double) |
|---|---|---|
| Shot Blasting Wheel Diameter | 200 mm | 200 mm |
| Working Width | 550/600 mm | 800 mm |
| Walking Speed | 0.5-33 m/min | 0.5-33 m/min |
| Concrete Surface Cleaning Efficiency | ≥400 m²/h | ≥600 m²/h |
| Steel Plate Surface Cleaning Efficiency | 75-100 m²/h | 100-160 m²/h |
| Dust Connection Pipe Diameter | 150 mm | 150 mm |
| Suggested Steel Shot Diameter | 1.5-1.8 mm | 1.5-1.8 mm |
| Steel Shot Consumption | 10 g/m² | 10 g/m² |
| Supporting Dust Collector | Eight-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner |
| Shot Wheel Motor Power | 11×2 kW | 15×2 kW |
| Shot Wheel Motor Current | ≤22×2 A | ≤28×2 A |
| Walking Motor Power | 1.5 kW | 1.5 kW |
| Walking Motor Current | 3 A | 3 A |
| Machine Size | 1950×720/775×1400 mm | 1950×1020×1550 mm |
| Weight | 570 kg | 700 kg |
| Power Requirements | 400V, 50Hz, 100A, CEE socket | 400V, 50Hz, 100A, CEE socket |
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
How Does a Shot Blasting Machine for Concrete Work?
The Blasting Process
The machine uses centrifugal force to propel steel shot at the concrete surface. A high-speed spinning wheel throws small steel balls downward at the floor. The shot impacts the surface and removes laitance, dirt, and weak concrete layers. It also creates a uniform rough texture that improves coating adhesion. The machine moves forward on its own power at adjustable walking speeds.
Shot Recovery and Dust Collection
A built-in vacuum system recovers used shot and dust from the surface. The dust collector separates reusable shot from fine dust particles automatically. Clean shot returns to the storage hopper for continuous reuse during operation. The closed-loop system means very little shot is lost during normal working hours. This design keeps the work area clean and reduces material costs over time.
Operator Control
Operators can walk behind the machine and guide it along the desired path. All main controls sit on an ergonomic handle panel at working height. Walking speed, blast power, and vacuum settings adjust easily during operation. Most workers learn basic operation within a few hours of hands-on training.
Key Features of Shot Blasting Machine for Concrete Floors
Double Blast Wheel Design
Both YG models use a double blast wheel design for wider and more even coverage. The dual-wheel setup ensures consistent texture across the full working width. Overlapping blast patterns eliminate striping issues common with single-wheel machines. The YG550/600 covers a 550 or 600mm path with two 11kW wheels. The YG-850 covers 800mm with two more powerful 15kW blast wheels.
Variable Walking Speed
Walking speed adjusts from 0.5 to 33 meters per minute for different applications. Slow speeds create deeper profiles while fast speeds handle light cleaning tasks. Operators match the speed to the desired surface profile and concrete hardness. Digital speed control keeps movement steady and consistent across the floor.
Eight-Core Vacuum System
The eight-core automatic backflush vacuum cleaner keeps work areas nearly dust-free. This vacuum system uses eight filter cartridges with automatic pulse cleaning cycles. Filter cleaning happens automatically during operation without stopping the machine. The 150mm dust connection pipe provides strong suction across the full blast width.
Dual Surface Capability
Steel shot consumption stays as low as 10 grams per square meter of treated surface. The machine works on both concrete floors and steel plates for added versatility. Operators control all functions from a simple control panel on the handle. The heavy-duty frame and wheels handle rough job site conditions reliably.
Applications of Shot Blasting Machine for Concrete Surfaces
These machines serve a wide range of construction and industrial projects. Common applications include:
Building and Facility Projects
- Warehouse and factory floor preparation before epoxy coating installation.
- Parking garage surface cleaning and restoration of traffic-worn concrete.
- Industrial facility maintenance including tank bottom plate cleaning.
- Commercial building renovation and floor coating preparation work.
Infrastructure Projects
- Airport runway and taxiway rubber removal and surface profiling work.
- Bridge deck preparation before waterproof membrane or overlay application.
- Road marking removal and highway surface texture restoration projects.
Industrial and Marine Projects
- Shipyard and offshore platform steel plate rust and scale removal.
- Port terminal and container yard concrete surface repair and profiling.
- Power plant and refinery floor maintenance and coating preparation.
Each industry benefits from the speed, cleanliness, and consistency of shot blasting. Contractors can take on larger projects with smaller crews using this equipment. The ability to work on both concrete and steel adds even more value for service companies. Business owners often find new project opportunities after adding this equipment to their fleet.
Concrete Shot Blasting Equipment: Choosing the Right Model
Selecting the right concrete shot blasting equipment depends on your project size and type. Consider these key factors when choosing a model.
Project Scale and Volume
The YG550/600 model works well for medium-size jobs like warehouse floors and parking areas. Its adjustable working width of 550 or 600mm suits most standard commercial projects. The YG-850 model targets large-scale projects with its 800mm working width. It delivers over 600 square meters per hour of concrete cleaning capacity. Large contractors and rental companies usually prefer the wider model.
Power and Compatibility
Both models share the same high-quality blast wheel and dust collection design. They accept 1.5 to 1.8mm steel shot available from local suppliers worldwide. The power requirements are 400V, 50Hz, with a CEE socket connection. Both machines work with standard three-phase industrial power found on most job sites.
Support and Scalability
As a leading concrete shot blasters manufacturer, YG Machinery provides both units with full spare parts support. Customers can start with the smaller model and upgrade later as their business grows. We also offer custom configurations for specialized industrial applications. Parts and consumables ship worldwide within two to three working days.
Shot Blasting Machine for Concrete Case Study: Muscat Airport Project
In 2025, a flooring contractor in Muscat, Oman, won a large airport maintenance contract. The project required surface preparation of 12,000 square meters of hangar floor. The client specified a CSP 4 profile before applying a new epoxy coating system. Previous grinding methods would have taken six weeks and created too much dust. The project manager searched for faster equipment and found YG Machinery online.
Project Execution
They ordered one YG-850 double blast wheel machine with the full dust collector. Delivery took 14 days by sea to Sohar Port and truck transport to Muscat. Our technician provided remote setup training for the three-person operator team. The crew completed all 12,000 square meters in just 18 working days.
Key Results
- Uniform profile results across the entire hangar floor surface.
- Dust levels within local health and safety regulations on site.
- Labor cost savings of about 30 percent compared to grinding methods.
- Project finished one week ahead of the client schedule.
The contractor later used the machine on a highway bridge deck project as well. They also added shot blasting services to their company service catalog for new clients.
Request Solution for My Business
FAQ About Concrete Shot Blasting Equipment
The profiling depth depends on walking speed, shot size, and machine power settings. Typical concrete profiling creates a CSP 3 to 5 surface profile suitable for most coatings. Faster walking speeds produce lighter cleaning for surface preparation jobs. Slower speeds create deeper profiles for thick coating or overlay systems. Operators can adjust settings to match each specific project requirement on site. Testing a small sample area first helps confirm the right profile before full production begins.
A shot blasting machine works faster than grinding for large open floor areas. It also creates a more uniform texture across the entire treated surface. The dust collection system captures nearly all airborne particles during operation. Grinding creates slurry waste that requires cleanup and special disposal methods. Shot blasting produces clean, dry dust contained in the vacuum collection system. Both methods have uses, but shot blasting is preferred for large commercial floors. Contractors often combine both methods for edges and hard-to-reach areas on complex jobs.
Yes, both models work on steel plates as well as concrete floors. Steel plate cleaning efficiency ranges from 75 to 160 square meters per hour depending on the model. This versatility makes the equipment useful for shipyards, fabrication shops, and industrial plants. Operators simply adjust the walking speed and shot flow for different surface types.
Steel shot consumption averages about 10 grams per square meter of treated concrete. The closed-loop recovery system reuses most shot during normal operation. Losses come from shot trapped in surface pores or carried out on footwear. A typical 1000 square meter project uses roughly 10 to 15 kilograms of additional shot. Premium shot blasters for professionals feature efficient recovery systems that minimize material waste.
Premium Shot Blasters for Professionals from YG Machinery
Manufacturing and Quality Assurance
YG Machinery manufactures high-quality surface preparation equipment for global markets. We design every machine with heavy-duty components for reliable daily operation. Each unit undergoes full load testing before shipping from our production facility. We keep a complete inventory of spare parts for fast delivery to any country.
Service and Support
Our technical team provides installation guidance and operator training by video call. Customers benefit from factory-direct pricing without distributor or middleman markup. We also offer custom blast wheel configurations and voltage options for different regions. Service contracts and extended warranty packages are available upon request.
