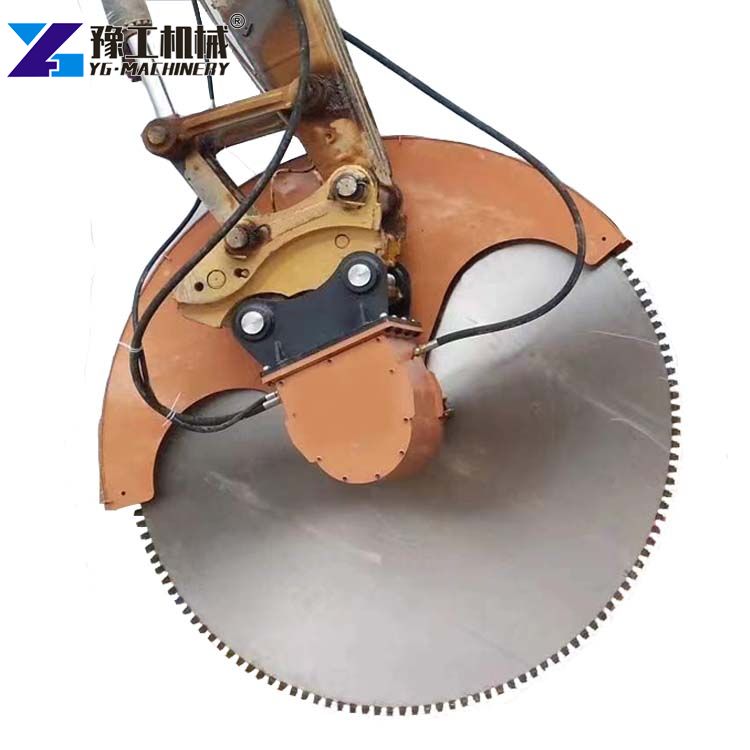

The excavator-mounted rock saw solves inefficient, imprecise hard-rock cutting problems on job sites. Traditional breaking tools cause uneven fractures, excessive waste, and serious vibration. This hydraulic-driven attachment uses diamond-blade grinding to complete neat rock-cutting tasks. It improves construction accuracy and reduces secondary processing workload greatly.
Excavator Mounted Rock Saw Complete Technical Parameters
YG Machinery designs five mature models to match 2T to 45T excavator equipment. Each unit adapts to different cutting depth and hardness requirements. Stable hydraulic parameters ensure consistent performance in long-term mining and construction work.
| Model | YG-J1 | YG-J2 | YG-J3 | YG-Q1 | YG-Q2 |
|---|---|---|---|---|---|
| Suitable Excavator Type | 2-4T | 6-9T | 10-18T | 20-28T | 30-45T |
| Circular Saw Diameter | 0.4-0.8m | 1.2-1.6m | 1.8-2.2m | 2.2-2.6m | 2.6-3.2m |
| Cutting Slit Width | 5mm | 9mm | 14mm | 30mm | 30mm |
| Max. Cutting Depth | ≤250mm | ≤600mm | ≤900mm | ≤1100mm | ≤1400mm |
| Rated Pressure | 30Mpa | 30Mpa | 30Mpa | 35Mpa | 35Mpa |
| Recommended Flow | 30L/min | 80L/min | 120L/min | 220L/min | 300L/min |
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
Key Performance Advantages of Rock Cutting Saw Attachment
Compared with traditional hydraulic breakers, this attachment brings obvious construction upgrades. It solves many common pain points in rock excavation and renovation projects.
- Precise Cutting Effect: Narrow slit width reduces material loss and minimizes damage to reserved rock.
- Low Vibration Operation: Steady grinding avoids strong vibration of surrounding structures.
- Strong Compatibility: Multiple models match mini and large excavator brands perfectly.
- Flexible Angle Adjustment: It supports horizontal, vertical, and oblique cutting for diverse needs.
- Low Subsequent Workload: Smooth cutting surfaces reduce secondary trimming and finishing work.
- High Safety Level: Stable hydraulic drive lowers sudden failure risks on construction sites.

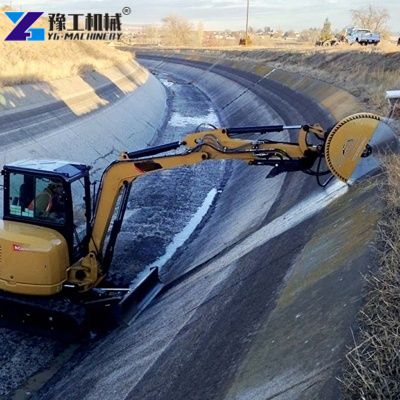

Wide Application Scenarios for Quarry Rock Saw Machine
This multi-functional rock cutting equipment covers quarry, municipal, road, and foundation projects. Its flexible installation and stable performance adapt to complex outdoor working environments.
- Quarry Stone Mining: Regularly cut stone blocks for masonry and building raw materials.
- Road Renovation Works: Cut hard rock and concrete for road widening and reconstruction.
- Foundation Excavation: Precise rock cutting for building and bridge foundation trenches.
- Slope Protection Projects: Trim hard rock slopes to meet safety and flatness standards.
- Concrete Demolition: Partial cutting and splitting of reinforced concrete structures.
- Landscaping Stone Shaping: Cut natural rock for landscape and garden decoration projects.
Rock Saw vs Blasting: Which Method Saves More Cost?
Many contractors struggle to choose between rock saw cutting and explosive blasting. Both methods handle hard rock removal for quarry and road projects. The excavator mounted rock saw delivers long-term cost advantages for most precision projects.
- Material Utilization Rate: Blasting causes severe rock fracturing and waste. It only retains 40% to 50% of usable stone blocks. The rock cutting saw attachment produces neat cuts. It boosts usable material rate up to 85% and reduces raw material loss.
- Site Safety Cost: Blasting requires large evacuation zones and professional operators. It brings hidden safety risks and management expenses. The excavator rock cutting saw works with minimal vibration. It needs no explosive permits and lowers safety control costs.
- Secondary Processing Cost: Blasted rock has irregular broken edges. It requires extra trimming and smoothing work. Precision saw cutting generates flat surfaces. It eliminates most secondary finishing labor and time costs.
- Environmental & Downtime Cost: Blasting creates loud noise and strong vibration. It may trigger construction restrictions and site shutdowns. The quarry rock saw machine runs smoothly. It adapts to nearby urban and residential projects with fewer limits.
Blasting suits large-scale bulk rock crushing with low precision demands. For standardized stone mining and precise foundation cutting, rock saws deliver better overall ROI.
Practical Project Case: Hard Rock Quarry Cutting in Africa
A professional quarry contractor in Africa focuses on hard limestone mining and stone block supply. The team previously used traditional hydraulic breakers for rock splitting. This old method only achieved 2–3 meters of effective cutting per hour. It delivered a mere 45% usable stone yield with massive material waste.
Strong vibration and loud noise also triggered frequent site shutdowns. To fix low efficiency and profit loss, the client purchased our YG-Q1 excavator rock saw. This model perfectly matches their 25-ton excavator’s hydraulic flow and pressure parameters.
After formal deployment, the equipment reached 8–10 meters of stable cutting per hour. The usable stone block rate increased from 45% to 85%. Its 60% lower noise and vibration levels eliminated construction restriction issues. It stably delivers 1100mm deep, flat, and neat cutting slits for standard stone products.
The client’s project cycle shortened by 30%, and secondary trimming labor costs dropped to nearly zero. The project finished 14 days ahead of schedule with zero environmental complaints. The project manager shared authentic feedback: “This rock cutting saw attachment greatly improves our stone utilization rate. It cuts operating costs and stabilizes product quality, becoming our core quarry processing equipment.” The customer has since added two more units for expanded mining operations.
Request Solution for My Business
FAQs About Excavator Mounted Rock Saw Selection & Use
Match the model according to your excavator tonnage and required cutting depth. Mini machines fit small trimming tasks.
Yes. The high-hardness diamond blade cuts concrete and embedded steel bars steadily.
No. The equipment adopts matched pressure and flow parameters to protect original machine systems.
Check blade wear and hydraulic pipe tightness daily. Timely cleaning ensures stable cutting efficiency.
Yes. The optimized hydraulic structure supports long-hour continuous outdoor construction.
Installation steps are simple. We provide detailed manuals and remote guiding services.
Why Choose YG Machinery & Get Your Free Custom Quotation
YG Machinery is a professional manufacturer of excavator hydraulic attachments. All rock saw units pass strict factory inspections. Each rock cutting saw attachment undergoes hydraulic pressure and cutting simulation tests. These standard tests ensure stable and durable field performance.
We deliver full one-stop service for global construction and quarry clients. Our team provides accurate pre-sales model selection and customized project solutions. We offer on-site installation guidance and daily operation training. Long-term spare parts supply and remote technical support reduce your downtime.
We focus on lowering operating costs and improving project efficiency for buyers. If you need a reliable quarry rock saw machine for your projects, contact us today. Get your free, tailored quotation within 8 hours with no purchase obligation.
