Traditional rock-breaking tools rely on impact force and generate strong vibration. Vibration can easily damage surrounding buildings and sensitive structures. Urban and tunnel projects require precise and low-noise construction methods. An excavator drum cutter solves these construction limitations effectively. It adopts rotary grinding milling instead of impact breaking. It ensures precise material removal and protects the structural integrity of surrounding areas. Contact our team today for a free, customized solution and an accurate quotation.
Excavator Drum Cutter Complete Technical Parameter Table
Model selection must match excavator tonnage and hydraulic flow parameters. Different sizes cover light, medium, and heavy milling demands. Below are the full standard parameters for accurate model matching.
| Product Model | HX-X1 | HX-X2 | HX-Z1 | HX-Z2 | HX-D |
|---|---|---|---|---|---|
| Applicable Models | 6-9T | 10-18T | 20-27T | 30-40T | 45-60T |
| Machine Weight | 450kg | 550kg | 1100kg | 1250kg | 2450kg |
| Milling Width | 420mm | 650mm | 850mm | 950mm | 1150mm |
| Milling Head Diameter | 340mm | 450mm | 560mm | 660mm | 850mm |
| Number of Blade Heads | 40 | 56 | 64 | 64 | 60 |
| Recommended Speed | 95r/min | 85r/min | 78r/min | 75r/min | 55r/min |
| Recommended Flow Rate | 80L/min | 120L/min | 220L/min | 320L/min | 360L/min |
| Maximum Pressure | 35Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa |
| Maximum Torque | 4700NM | 7000NM | 14300NM | 23300NM | 40300NM |
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
How Does Excavator Drum Cutter Achieve Precise Milling Work?
Driven by high-performance hydraulics, this excavator attachment adopts advanced rotary grinding principles to deliver exceptional cutting accuracy. Unlike traditional impact-breaking equipment that relies on heavy force, it connects directly to the excavator’s original hydraulic system for seamless plug-and-play operation. Furthermore, the unit operates entirely without auxiliary power packs or complicated setup procedures, which greatly simplifies site assembly and speeds up machine transfer.

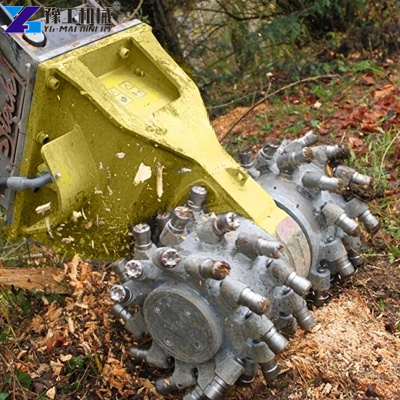

To ensure consistent output, high-torque hydraulic motors power the milling drum at a steady, uniform speed. Each drum features premium hardened carbide teeth designed to continuously grind, strip, and fracture tough materials layer by layer—including hard rock, reinforced concrete, asphalt, and frozen ground. Because this rotary method eliminates violent shocks and harsh collisions, it significantly reduces working noise and structural vibration, thereby safeguarding adjacent buildings.
As a high-precision hard rock milling attachment for excavators, it maintains sustained torque during long operational shifts without power drop-off. In addition, it integrates seamlessly alongside hydraulic breakers and excavator rippers to form a versatile multi-stage workflow. By handling fine edge trimming, surface leveling, and accurate profiling, this drum cutter resolves the edge-clearing and precision shortcomings typical of conventional breaking attachments.
Core Strengths of Excavator Drum Cutter for Complex Construction
Many urban and tunnel projects pursue high-precision and low-disturbance construction. Traditional breaking tools cannot meet strict environmental and structural requirements. This drum cutter attachment fills the technical gap effectively.
- Low Vibration & Low Noise: Rotary grinding replaces impact breaking. It avoids structural cracks in surrounding buildings and reserved facilities. It adapts to dense urban construction zones.
- High Construction Precision: Operators control cutting depth, and milling range freely. It delivers flat and smooth working surfaces. It reduces secondary trimming and repair workload.
- Powerful Hard Material Adaptability: Maximum 35Mpa pressure and 40300NM torque support hard rock milling. It stably processes granite, concrete, and frozen soil layers.

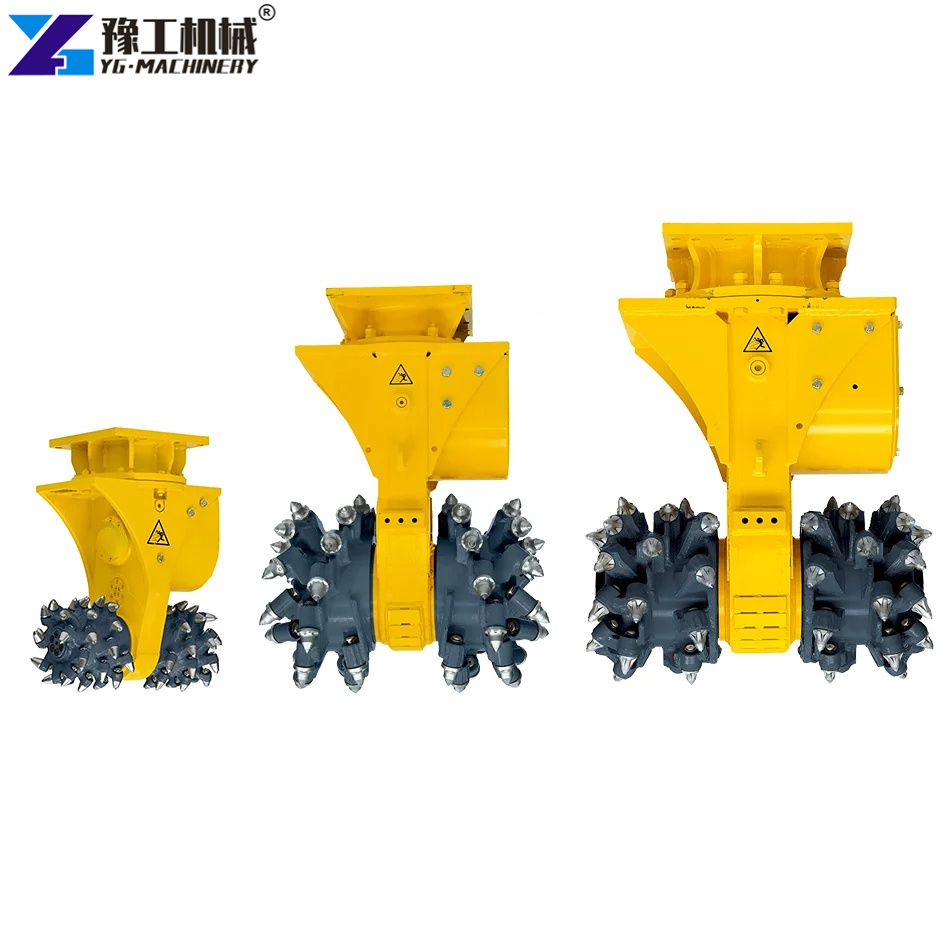

- Flexible Model Matching: Five models fit 6-60 ton excavators. Milling width ranges from 420mm to 1150mm. It covers light trimming and heavy-duty milling tasks.
- Strong Compatibility: It works well with excavator buckets and a hydraulic thumb. It forms a complete process of cutting, grabbing, and cleaning on site.
Users can select suitable specifications to get a cost-effective excavator rock grinder for sale. Reasonable model selection balances construction quality and working efficiency.
Common Application Scenarios of Asphalt Milling Attachment
This multi-functional asphalt milling attachment breaks the limitations of traditional large milling machines. It solves the pain points of narrow-space construction, low precision, and high vibration. It perfectly adapts to urban renovation, underground engineering, and special terrain operations. Cooperating with crusher attachment for excavator, it can complete integrated demolition and material recycling. It covers almost all fine milling and precise rock trimming scenarios in construction engineering.
- Urban Road Renovation: Mill aging asphalt layers, cracked concrete pavements, and road marking layers evenly. It features precise cutting and no damage to the road foundation. It ensures flat base layers for new pavement construction and reduces road repair costs.

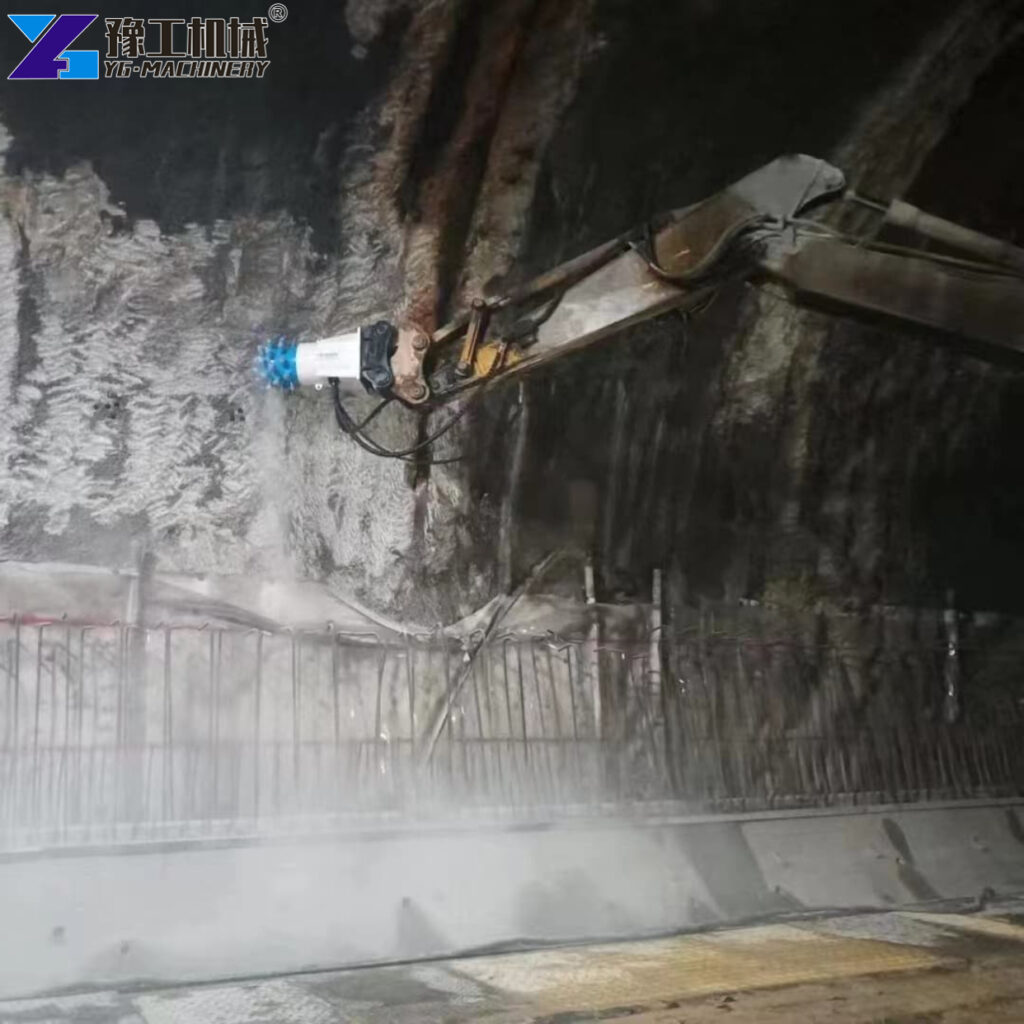

- Tunnel Excavation & Trimming: Shape irregular tunnel inner walls and top surfaces precisely. Low-vibration operation avoids surrounding rock loosening and over-excavation. It effectively guarantees tunnel construction safety and follow-up spraying quality.
- Hard Rock Foundation Treatment: Trim uneven hard rock and concrete foundations on construction sites. It polishes rough working surfaces to meet flatness standards. It provides reliable foundation conditions for subsequent concrete pouring and steel structure installation.
- Pipeline Trenching: Precisely mill narrow, standardized deep trenches for water and power pipelines. It avoids excessive soil and rock damage. It protects surrounding building foundations and road structures from construction impact.
- Environmental Remediation & Frozen Soil Construction: Grind hard frozen soil, hardened polluted layers, and industrial waste residues. It replaces manual breaking and improves remediation efficiency. It supports safe, standardized, and efficient site renovation work.
Real Project Cases of Excavator Drum Cutter On-site Milling
Our excavator drum cutter series has served dozens of overseas road, tunnel, and foundation projects. These practical cases verify stable performance and high construction precision in complex working conditions.
- Southeast Asia Urban Road Renovation Project: The client adopted our HX-X2 asphalt milling attachment matched with a 16-ton excavator. The equipment stably milled old asphalt layers at a width of 650mm. It completed 800 meters of road surface renovation per day with a flat finished surface. It eliminated manual secondary trimming and shortened the project cycle.
- Middle East Hard Rock Foundation Trimming Project: The HX-Z2 model acted as a professional hard rock milling attachment for an excavator. With 23300NM maximum torque, it trimmed irregular granite foundations efficiently. Low-vibration operation protected the integrity of surrounding soil structures, meeting strict engineering standards.
- European Tunnel Inner Wall Shaping Project: The customer purchased our HX-D heavy-duty drum cutter for deep tunnel construction. Its 1150mm super-wide milling width improved single-pass working efficiency. No structural cracks appeared during the whole construction period, fully meeting urban tunnel safety regulations.
All field cases prove that our drum cutters adapt to diverse complex scenarios. Whether for road milling or hard rock trimming, they deliver stable efficiency and reliable construction quality.
FAQs About Excavator Drum Cutter Selection & Operation
A1: Match models according to excavator tonnage and hydraulic flow. Confirm material hardness and required milling width for accurate selection.
A2: Yes. High torque and pressure support hard granite and concrete grinding. It maintains stable long-hour working performance.
A3: Daily maintenance is simple. Regular lubrication and blade inspection extend service life effectively.
A4: It produces lower vibration and higher precision. It suits urban and tunnel projects with strict restriction standards.
A5: Optimized oil circuit and heat dissipation support long continuous working cycles. It adapts to high-intensity site tasks.
Why Choose YG Machinery | Reliable Quality & Full-Cycle Service
YG Machinery focuses on R&D and manufacturing of excavator hydraulic attachments. Every excavator drum cutter undergoes strict factory testing. We verify pressure, torque, and rotating speed data before delivery.
We supply standardized and customized construction tools for global clients. Our product lineup includes professional hard rock milling attachment for excavator and reliable excavator rock grinder for sale. All products feature stable performance and low failure rates.
We provide full one-stop service for overseas customers. Our pre-sales team offers free model matching and project scheme design. We customize milling width and blade configurations for special working conditions.
We support a complete after-sales guarantee, including remote technical guidance. Timely spare parts supply and operation guidance reduce site downtime. Professional regular maintenance guidance prolongs equipment service life.
If you need high-precision milling attachments for your upcoming projects, contact YG Machinery now. Get your free professional quotation and customized construction solution within 8 hours.
