The concrete pile cutter from YG Machinery is a machine that removes concrete pile heads using multi‑directional hydraulic pressure. It mounts directly onto an excavator, pushing alloy chisels inward from several sides to crack the concrete horizontally while keeping steel reinforcement completely intact. YG Machinery offers a modular design suitable for pile diameters from 400 mm up to 2500 mm. Compared to manual jackhammers or single‑breaker demolition hammers, this concrete pile cutter delivers faster cycle times, lower rework rates, and much safer operation on busy construction sites.
Specifications for the YG hydraulic pile breaker
| Module Number(PCS) | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight(KG) | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range(mm) | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator(T) | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
Key Technical Features of the Hydraulic Concrete Pile Breaker

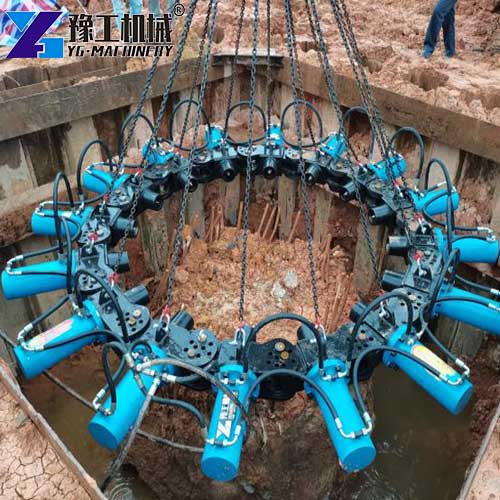

1. Modular design – one machine for all pile sizes
Add or remove modules on site to fit piles from 400 mm to 2500 mm. One unit handles round, square, and cast‑in‑place piles. No need for separate machines. Modules stack neatly for easy shipping.

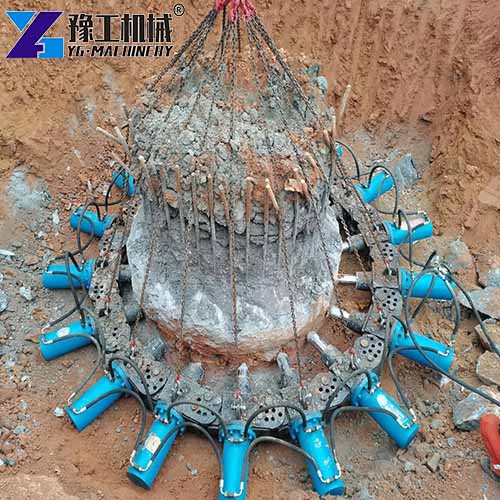

2. Radial crushing action – clean break, intact rebar
Hydraulic chisels push inward from multiple sides at once. This creates uniform stress, cracking concrete horizontally while the steel reinforcement stays completely undamaged. The broken block lifts away in one piece. Rework drops to nearly zero.
3. Direct excavator mounting – no extra power pack
Attaches via quick coupler in under five minutes. Runs entirely off the excavator’s own hydraulics. No separate power unit or complex hoses. One operator controls everything from the cab.
4. Fast cycle time – minutes per pile, not hours
A typical 800 mm pile head that took half a day with jackhammers now breaks in 15–20 minutes. A single excavator handles 30–50 piles per shift. Cuts the foundation schedule by more than half.
5. Safety and noise control – meets urban limits
Operator stays in the sealed cab, away from flying chips and dust. Debris is contained. Noise levels are far lower than jackhammers, meeting daytime limits near business districts and homes. No complaints, no fines.
6. Low maintenance – built for daily use
High‑strength steel body resists cracking. Heat‑treated alloy chisels last 500–800 cycles. Daily maintenance is just greasing and visual inspection. Common spares ship within 24 hours. 12‑month warranty included.
Case Study: How a Pile Head Breaking Machine Solved a Saudi Contractor’s Problems
Client Background
A foundation contractor based in Saudi Arabia, owned by Mr Khalid Al‑Otaibi, specialises in high‑rise building foundations and infrastructure works. The company employs about 40 workers and operates a fleet of excavators and support equipment. For a new commercial complex project involving more than 250 concrete piles with diameters ranging from 600 mm to 1,200 mm, the client needed to complete pile head removal within a tight six‑week window. The site was located near an existing business district, so noise and safety were major concerns.
Core Pain Points
- Slow manual breaking: Using three workers with jackhammers, breaking a single 800 mm pile head took nearly half a day. At that rate, completing over 250 piles would have taken several months, far longer than the allowed foundation phase.
- Frequent rework due to pile damage: Traditional impact hammers often caused hairline cracks below the cut line and occasionally nicked the steel reinforcement. Around one in five piles needed concrete repair or re‑chipping, driving up material costs and delaying subsequent work.
- Noise complaints: Jackhammer noise exceeded the limits allowed for daytime construction near commercial areas.
Solution from YG Machinery
YG Machinery recommended a set of YG‑800 and YG‑1000 hydraulic pile breakers along with quick couplers to fit the client’s existing 25‑ton and 35‑ton excavators. The modular design allowed the team to reconfigure the machine on site: eight modules for 600–800 mm piles, and ten modules for 1,000–1,200 mm piles.
YG provided:
- Video training for the excavator operators, covering attachment, hydraulic flow adjustment, and daily maintenance.
- A remote control option so the operator could work from inside the cab with a clear view of the pile head.
- Spare chisel sets and a basic tool kit are shipped together with the machines.
Results
After deploying the YG equipment, the contractor achieved the following improvements:
- Much faster pile breaking: A single 800 mm pile head that previously took four hours with manual methods was now broken in about 15 to 20 minutes. The team finished all 250+ piles in less than five weeks, well ahead of the foundation deadline.
- Near‑zero rework: The radial crushing action left every steel cage intact, and no cracking was found below the cut line. Rework costs dropped to almost nothing, saving both time and concrete repair materials.
- Zero safety incidents: The operator remained in the cab, and the surrounding design contained debris. No injuries or near‑misses occurred during the entire pile breaking phase.
- Noise complaints eliminated: Operating noise stayed within municipal limits. The local authority conducted a routine inspection and confirmed compliance.
Operator Feedback on the Concrete Pile Cutting Machine
“Before YG, pile head removal was our slowest and noisiest job. Jackhammers tired out my workers and damaged piles. The YG machine changed everything. One of my excavator operators now handles the whole job. We finish piles faster, with zero rework, and no more complaints.”
— Mr Khalid Al‑Otaibi, Foundation Contractor, Saudi Arabia
Ready to Improve Your Pile Breaking Efficiency?
This concrete pile cutter has proven itself on a demanding Saudi site. YG Machinery manufactures a complete range of units from compact 4‑module units for 400 mm piles to heavy 18‑module units for 2500 mm drilled shafts. All units come with factory-direct pricing, a 12‑month warranty, and fast global shipping.
Need a reliable, field‑proven pile cutting solution? Contact YG Machinery with your pile diameter range, excavator model, and project location. We will send you a customised recommendation and a firm quote within 24 hours.
