Looking for a faster, more efficient way to apply glass fiber-reinforced concrete? A GRC spray machine from YG Machinery delivers consistent spray quality, reduces labor costs, and handles projects of any scale. Whether you work on building facades, decorative panels, or large-scale structural elements, this machine solves common problems such as uneven coating, material waste, and slow progress. In this guide, we explain how the machine works, what makes it stand out, and where it performs best — so you can decide if it fits your next project.

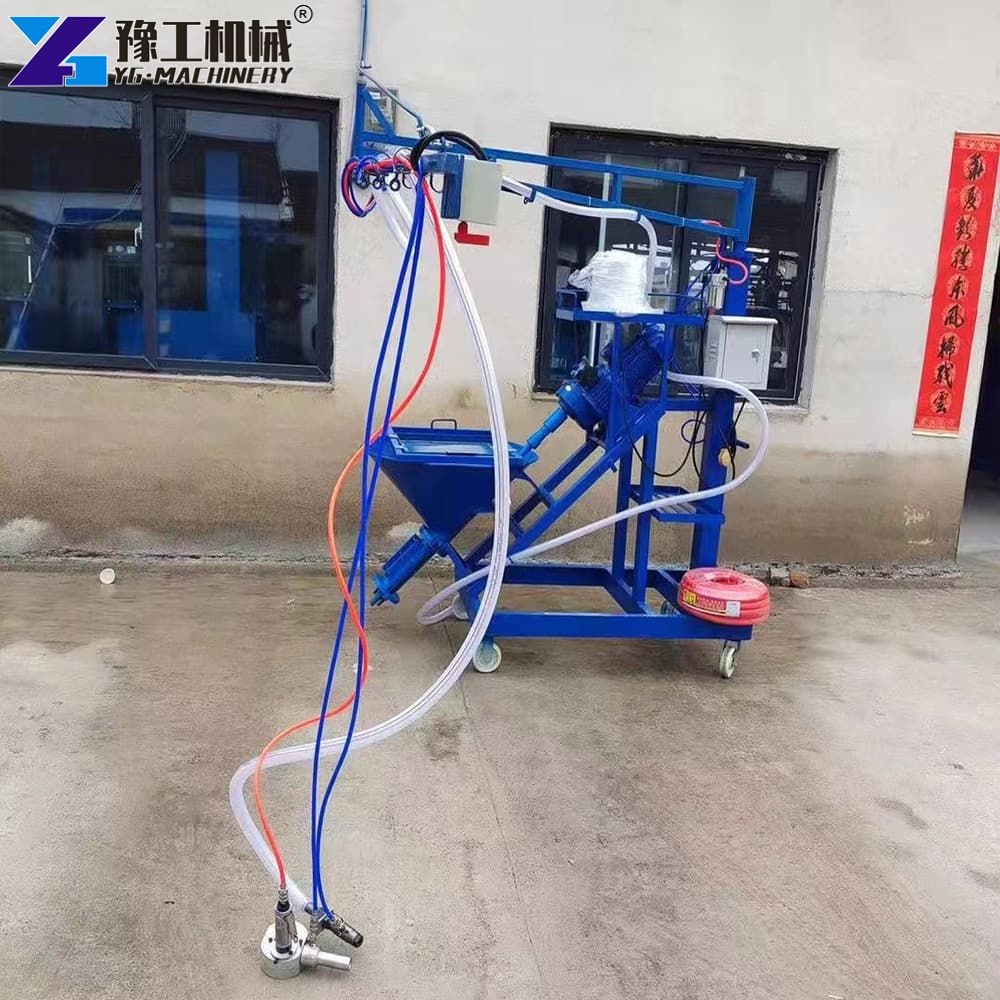

A GRC spray machine uses a screw-type pumping system to push the concrete mixture through a hose and out of a spray nozzle. At the nozzle, compressed air atomizes the material into a fine, even spray. The process follows three basic steps:

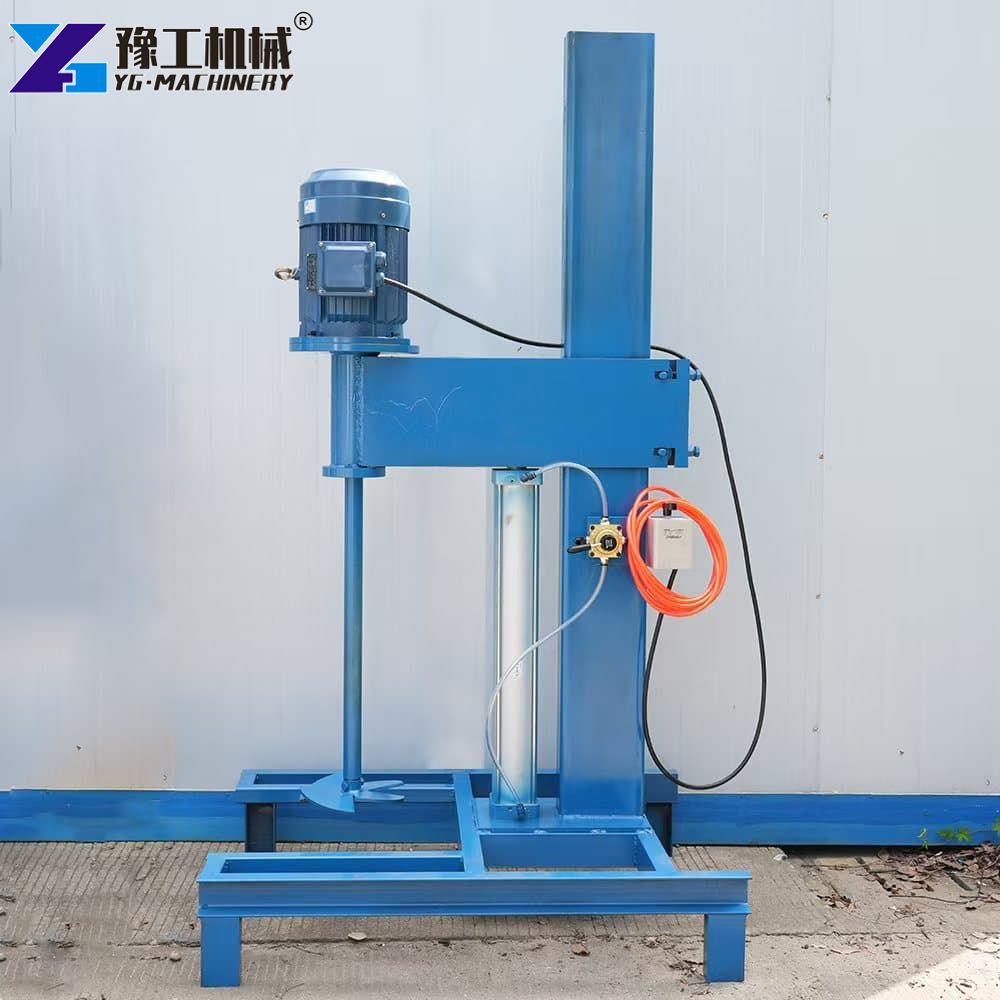

Mixing: Raw materials — cement, fine aggregate, water, alkali-resistant glass fibers, and additives — are blended into a uniform slurry.
Pumping: The screw pump moves the mixture steadily toward the spray gun. The stepless speed motor allows real-time flow adjustment between 300 and 1,600 kg/h.
Spraying: Compressed air at 0.6–0.8 MPa pushes the material onto the target surface. The operator controls thickness and coverage by adjusting nozzle distance and angle.
This method produces a smooth, dense layer with strong adhesion. It works well on both flat and curved surfaces.
With a delivery capacity of up to 1,600 kg/h and a coverage rate of 200–400 ㎡/h, a glass fiber-reinforced concrete spraying machine completes jobs far faster than manual application. The horizontal boom reaches 4.5 meters, reducing the need to reposition scaffolding.
Precise Speed Control
The stepless speed regulation motor (20–200 r/min) lets operators adjust output while the machine runs. This means you can switch between thin decorative coats and thicker structural layers without stopping. Such flexibility is rare in machines at this price range.
Compact and Portable Design
At just 1,400 × 1,000 × 2,200 mm and 220 kg, this GRC production machine fits through standard doorways and rides easily on a flatbed truck. One or two workers can move it between job sites without special equipment.
Frequently Asked Questions About GRC Spray Machines
What thickness can a GRC spray machine apply in one pass?
Most operators achieve 10–25 mm per pass. Thicker layers are possible with multiple passes. The stepless speed control helps maintain even distribution at any thickness setting.
How much material does a GRC spray machine consume per hour?
It depends on the layer thickness and coverage area. At maximum output, the machine delivers up to 1,600 kg/h. For typical facade work at 15 mm thickness, expect 300–600 kg/h.
Can a glass fiber-reinforced concrete spraying machine handle custom mixes?
Yes. The screw pump handles standard GRC mixes and most custom formulations. The key is keeping fiber length below 25 mm and aggregate size under 5 mm for smooth flow.
What maintenance does the machine require?
Daily cleaning of the hopper and screw is essential. Check the nozzle and air line before each shift. Replace worn seals every 200–300 working hours. YG Machinery provides a full spare parts catalog and video maintenance guides.
Where Is the GRC Spray Machine Used?
The versatility of a GRC spray machine makes it suitable for a wide range of applications across the construction and decorative industries.
Building Facades: Spray-apply GRC panels onto high-rise exteriors for lightweight, durable cladding. The 4.5 m boom radius covers large wall sections quickly.
Decorative Elements: Create intricate architectural details — columns, cornices, moldings, and relief panels — with precise thickness control.
Interior Wall Panels: Produce smooth, fire-resistant interior panels for commercial spaces, hotels, and office buildings.
Landscape and Garden Products: Manufacture artificial rock features, water features, and tree grates. The machine handles textured finishes that mimic natural stone.
Repair and Restoration: Apply thin GRC layers to restore aging concrete structures, bridges, and heritage buildings. The strong adhesion ensures long-lasting repairs.
Prefabricated Panel Production: Use the machine as part of a GRC production machine line in factories for standardized panel manufacturing.
Every GRC spray machine we ship undergoes a full factory test before delivery. We check pump pressure, motor performance, and spray uniformity. You receive a test report with your machine.
Full Service Support
Pre-sale consultation: We help you choose the right model based on your project type, material formula, and daily output target.
Custom solutions: Need a modified hopper size or a different voltage configuration? We adapt the machine to your local power supply and working conditions.
After-sales support: Our technical team provides remote troubleshooting, on-site installation guidance, and a 12-month warranty on core components. Spare parts ship within 48 hours.
Trusted by Customers Worldwide
“We bought the GRC spray machine from YG Machinery for our facade project in Dubai. The output was steady, and the machine ran for 10 hours a day without issues. Their video guides made maintenance simple.”
— Ahmed R., Project Manager, UAE
“The speed control feature is what sold us. We spray both thin decorative layers and thick structural panels with the same machine. Great value for the price.”
Ready to upgrade your GRC production line? A GRC spray machine from YG Machinery delivers reliable performance, fast output, and professional spray quality at a competitive price.
Contact us now to:
Get a free, no-obligation quote
Receive a custom machine configuration for your project
Download the full product catalog and spare parts list
