Poultry farms and egg packaging businesses need efficient ways to protect fresh eggs during transport. Standard plastic or foam packaging costs more and creates waste concerns for buyers. Recycled paper pulp egg cartons offer an eco-friendly alternative at lower production cost. An egg carton making machine turns waste paper into molded pulp cartons using water and heat. The machine forms, dries, and stacks finished packaging products ready for use. Small to medium egg producers and packaging companies use these machines to cut supply chain costs. YG Machinery manufactures complete pulp molding production lines for egg carton and tray products.
| Model | YG-1×3 | YG-1×4 | YG-3×4 | YG-4×4 | YG-4×8 | YG-5×8 | YG-6×8 |
|---|---|---|---|---|---|---|---|
| Capacity (pcs/h) | 1000 | 1500 | 2500 | 3500 | 4500 | 5500 | 7000 |
| Forming Mould Quantity | 3 | 4 | 12 | 16 | 32 | 40 | 48 |
| Total Power (kW) | 40 | 40 | 50 | 60 | 130 | 140 | 186 |
| Electricity Consumption (kW/h) | 28 | 29 | 35 | 42 | 91 | 98 | 130 |
| Worker Required | 3–5 | 4–6 | 4–6 | 4–6 | 4–6 | 5–7 | 6–8 |
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
How Does an Egg Carton Making Machine Work?
Pulp Preparation Process
The machine starts by mixing waste paper with water to create a pulp fiber mixture. Waste cardboard, newspaper, and office paper all serve as raw materials for production. The pulper breaks down the paper into fine fibers suspended in water. Workers adjust the pulp density by controlling the water-to-fiber ratio in the tank. Additives can be mixed in for water resistance or increased strength properties.
Molding and Forming

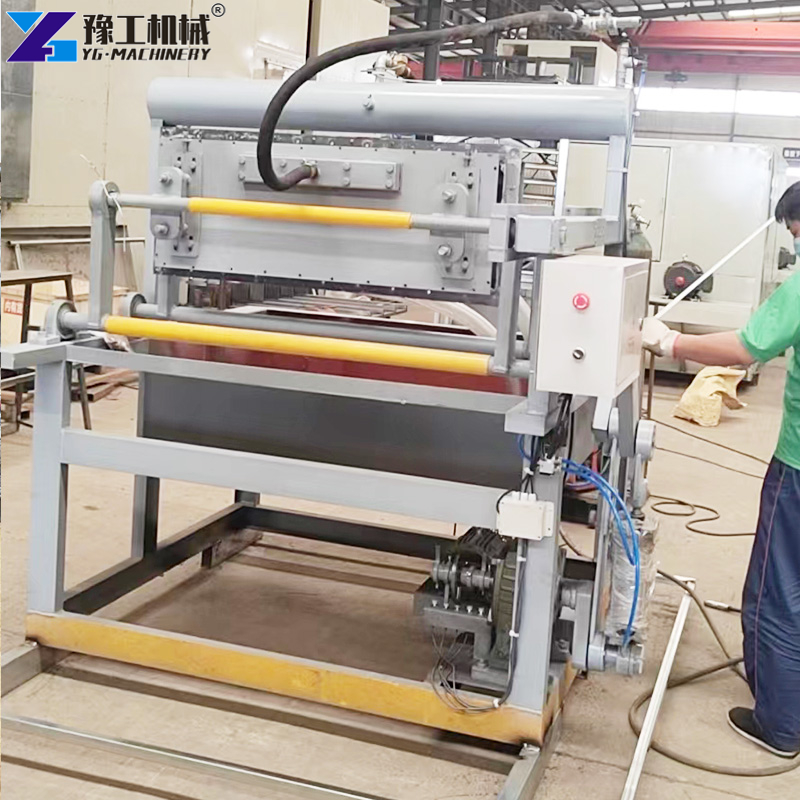

The forming section uses metal molds shaped like egg cartons or egg trays. Each mold dips into the pulp slurry and uses vacuum suction to collect fibers. The fibers build up on the mold surface to form the carton shape. The mold then lifts from the pulp and releases the wet-formed carton onto a conveyor. The number of molds per machine determines overall hourly production capacity.
Drying and Stacking

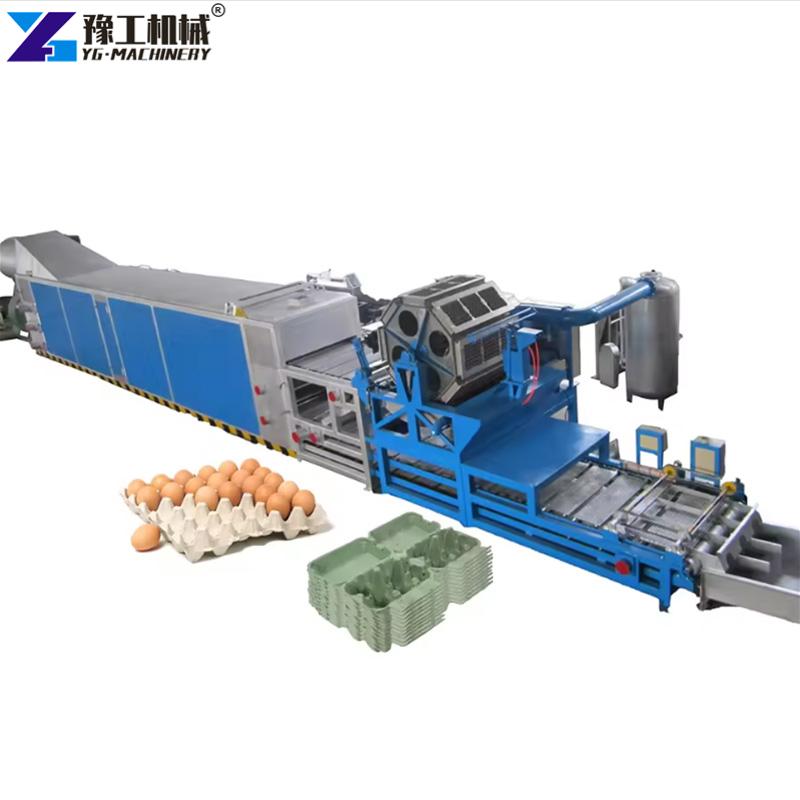

Wet cartons move through a drying chamber to remove remaining moisture. The drying system uses hot air circulation to speed up the evaporation process. Natural drying works for small machines with low production volume. Industrial-scale models use multi-layer metal drying lines for continuous output. Dried cartons pass through an automatic stacking system before final packaging for delivery.
Key Features of Egg Carton Making Machines
Wide Range of Production Capacities
YG offers seven machine models to match different business sizes and output needs.
- Entry-level YG-1×3 produces 1000 pieces per hour for small startup operations.
- Mid-range YG-3×4 delivers 2500 pieces per hour for medium packaging companies.
- High-capacity YG-6×8 reaches 7000 pieces per hour for large industrial plants.
- All models share the same basic pulp molding production technology platform.
- Customers can upgrade production by adding more molds or drying sections later.
Eco-Friendly and Low Operating Cost
These machines use recycled waste paper as the primary raw material input.
- Waste paper costs much less than plastic or foam packaging materials.
- The finished products are fully biodegradable and recyclable after use.
- Water used in production can be filtered and reused for multiple production cycles.
- Low electricity consumption keeps daily running costs at predictable levels.
- The process produces no harmful chemicals or environmental pollution on site.
Simple Operation and Maintenance
The machine design prioritizes ease of use and minimal maintenance requirements.
- Most models only need 3 to 8 workers depending on production scale.
- Quick mold changeovers allow switching between carton and tray production.
- The control panel uses simple buttons and indicators for operator training.
- Common spare parts like pumps and valves are readily available locally.
- Regular cleaning and lubrication keep the machine running for many years.
Egg Carton Making Machine Applications
Poultry and Egg Farms
Commercial egg farms produce thousands of eggs each day that need safe packaging. On-site carton production means farms do not rely on external packaging suppliers. They can produce exactly the quantity and style needed for their daily output. This approach reduces packaging inventory costs and supply chain delays. The machine handles both standard 30-egg trays and premium egg cartons.
Packaging and Printing Companies
Packaging suppliers use these machines to expand their product offerings. They can produce egg cartons, fruit trays, cup carriers, and other pulp products. The same machine supports different molds for various molded pulp packaging items. Printing companies add value by printing customer logos and branding on the cartons. This diversification helps packaging companies serve more industries and clients.
Recycling and Waste Management Businesses
Companies in the waste paper recycling sector can add carton production as a new revenue stream. They already have steady access to waste paper feedstock for their operations. Producing egg cartons adds value to their recycled paper material supply. The egg tray manufacturing business offers solid profit margins and growing market demand. Recyclers can sell finished cartons directly to local farms and food distributors.
Starting an Egg Tray Manufacturing Business
Many entrepreneurs enter this sector because of the relatively low entry cost and strong demand.
Market Research and Planning
Before investing in equipment, study the local egg production and packaging market. Identify potential customers such as poultry farms, egg distributors, and supermarkets. Calculate the local carton demand and current pricing levels from existing suppliers. This research helps you select the right machine size for your target market volume. A reliable supplier can also help with feasibility analysis and business planning.
Equipment and Facility Requirements
The production line needs a suitable factory space with access to water and electricity.
- Small machines fit in spaces of 200 to 300 square meters of factory area.
- Large production lines require 1000+ square meters with drying line space.
- Three-phase electric power must match the total power rating of the machine.
- Waste paper storage area should stay dry and separate from production zones.
- Waste water treatment system may be needed depending on local regulations.
Return on Investment Timeline
Most egg carton production businesses reach profitability within a reasonable timeframe.
- Raw material costs stay low because waste paper is widely available and affordable.
- Egg cartons sell at consistent prices with steady demand from the poultry sector.
- Typical payback periods range from 12 to 24 months for mid-size machine models.
- Additional product lines like fruit trays can increase revenue from the same machine.
- Labor costs remain modest because most processes run on automated equipment.
Egg Carton Making Machine: Lusaka Poultry Farm Case Study
In 2024, a large poultry farming company near Lusaka, Zambia, faced rising packaging costs. The company produced over 200,000 eggs per day and bought all cartons from imported suppliers. Import delays and fluctuating currency rates made supply planning difficult for the business. The operations manager searched for ways to bring carton production in-house to control costs.
After comparing several suppliers, the company chose YG Machinery for its equipment. They selected the YG-4×8 model with 4500 pieces per hour production capacity. The machine included a metal drying line and automatic stacking system for full automation. Our engineers traveled to Zambia for installation and operator training at the farm site.
Project Execution
- Installation and commissioning took 14 days from machine arrival to full production.
- The machine used locally sourced waste cardboard and newspaper as raw materials.
- Eight local workers were trained to operate the line across two daily production shifts.
- Production reached 4500 cartons per hour, meeting the farm’s daily packaging needs.
- Waste water from the process was filtered and reused in the pulp preparation system.
Project Results
- The farm reduced its egg carton packaging cost by 65 percent within six months.
- Production ran 20 hours per day, producing enough cartons for all daily egg output.
- The company started selling extra cartons to smaller local farms for extra revenue.
- They ordered a second YG-4×8 line one year later to expand carton sales volume.
The company now supplies egg cartons to over 20 other poultry farms in the region. Their in-house production has become a separate profit center within the business group.
Request Solution for My Business
FAQ About Paper Egg Tray Machine
The egg tray machine price depends on production capacity, drying system type, and automation level. Higher capacity machines with more molds naturally cost more than small models. Metal drying lines add cost compared to simple natural drying setups. Automatic stacking and counting systems also increase the total investment. YG Machinery provides transparent pricing with detailed equipment specification lists for each model.
Installation time depends on machine size and site preparation status. Small machines can be installed and running within 7 to 10 days of delivery. Medium and large lines need 14 to 21 days for full setup and testing. Our technicians provide on-site installation support and operator training. Customers need to prepare factory space, power, and water before machine arrival.

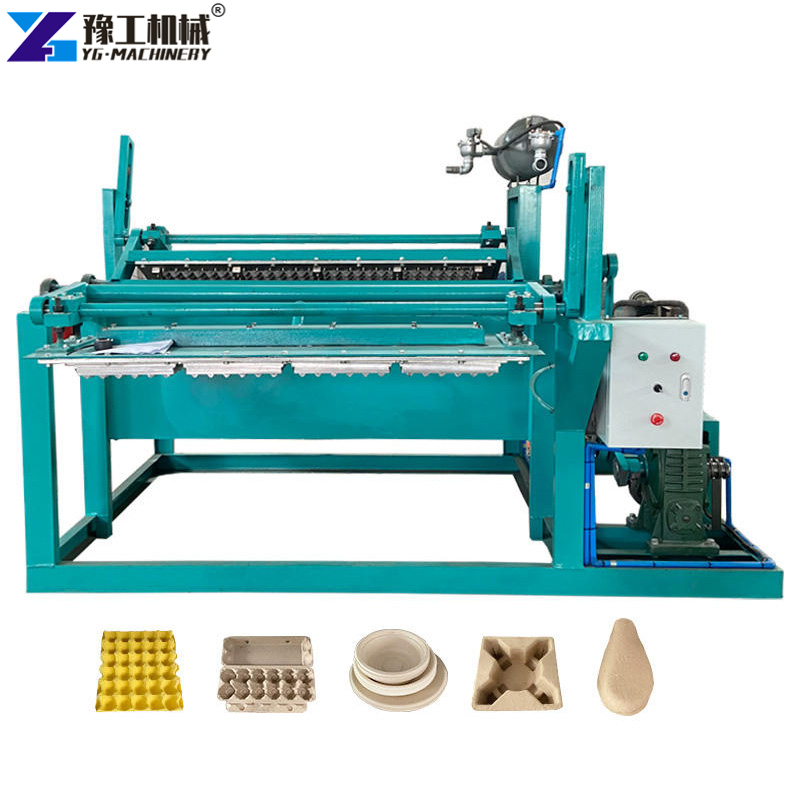

Yes, the same machine can make various molded pulp products by changing the molds. Common alternatives include egg trays, apple trays, cup holders, and shoe supports. Seedling pots, bottle trays, and industrial packaging inserts are also possible. Each product requires its own set of forming molds that fit the same machine base. This flexibility allows businesses to serve multiple markets with one production line.
Most types of waste paper work well as raw material for pulp molded products. Newspaper, office paper, cardboard, and carton waste are all suitable inputs. The paper must be free of plastic coatings or heavy ink contamination for best results. Some producers add a small percentage of virgin pulp for extra strength and whiteness. Our technical team helps customers test local paper sources before they purchase equipment.
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
YG Machinery: Your Egg Carton Making Machine Supplier
Manufacturing and Quality
YG Machinery manufactures pulp molding equipment and packaging machinery for global markets. We build every machine with high-grade steel frames and reliable electric components. Each production line passes full testing with real pulp before shipment from our factory. Our engineering team continuously improves designs based on customer feedback and field experience. We have supplied machines to customers in more than 60 countries worldwide.
Service and Support
We support our customers from the planning stage through years of production operation.
- Our sales team helps select the right machine model for your business plan.
- We provide factory layout drawings and installation guidance for your facility.
- Overseas technician service is available for on-site installation and training.
- Original spare parts are in stock for fast delivery to any customer location.
- Lifetime technical support includes remote video troubleshooting and upgrades.
Get Your Free Quotation
Thinking about starting an egg tray manufacturing business or expanding production capacity? Contact YG Machinery today for a free quotation and production line recommendation. Tell us about your target output, available space, and local raw material supply. We will design a custom solution that matches your budget and business goals. Email us at admin@yugongheavy.com or message us on WhatsApp at +86 183 3715 2861. Our team responds within 8 hours with pricing, delivery times, and full technical details.
