Moving heavy machinery across factory floors presents serious challenges. Forklifts struggle in tight spaces. Overhead cranes require permanent installation. Manual skates demand physical effort and increase injury risks. YG Machinery’s Electric Load Moving Skate Tank solves these problems with a simple, powerful design. The machine combines battery power, wireless remote control, and robust construction to handle loads from 20 to 60 tons. It moves heavy equipment safely and precisely in confined industrial spaces.
Electric Load Moving Skate Tank – Full Product Specifications
| Model | 20T | 25T | 30T | 40T | 50T | 60T |
|---|---|---|---|---|---|---|
| Electric Motor | 750W×2 gear motors | 1000W×2 gear motors | 1200W×2 gear motors | 1500W×2 gear motors | 2000W×2 gear motors | 3000W×2 gear motors |
| Controller | D2T80A Driver | D2T100A Driver | D2T100A Driver | D2T200A Driver | D2T200A Driver | D2T220A Driver |
| Remote Controller | C6/C7 Remote | C7 Remote | C7 Remote | C6/C7 Industrial Remote | C7 Industrial Remote | C7 Remote |
| Battery Spec | 48V 60Ah Lithium | 48V 60Ah Lithium | 48V 60Ah Lithium | 48V 120Ah Lithium | 48V 120Ah Lithium | 48V 120Ah Lithium |
| Working Current | 60A | 60A | 60A | 120A | 120A | 120A |
| Driving Wheel | 90×135×4mm PU | 90×135×4mm PU | 90×135×5mm PU | 140×140×4mm PU | 140×140×4mm PU | 140×160×8mm PU |
| Panel Material | 10mm Q355 Steel | 12mm Q355 Steel | 12mm Q355 Steel | 16mm Q355 Steel | 16mm Q355 Steel | 16mm Q355 Steel |
| Traction Weight | 20T | 25T | 30T | 40T | 50T | 60T |
| Battery Life | 4-6 Hours | 4-6 Hours | 4-6 Hours | 5-7 Hours | 5-7 Hours | 5-7 Hours |
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
How the Electric Load Moving Skate Tank Works

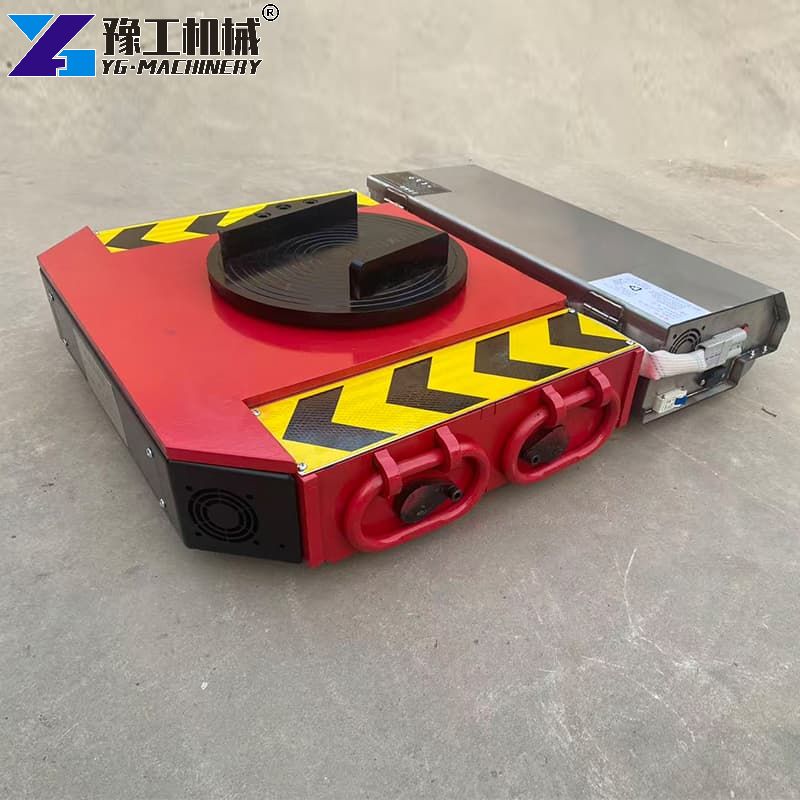

The Electric Load Moving Skate Tank operates on a straightforward principle. Dual gear motors drive polyurethane wheels that grip the floor surface firmly. A lithium battery pack supplies power to the motors through an intelligent controller. The operator uses a wireless remote to direct movement from a safe distance.
The 360-degree rotation capability allows the machine to turn in its own footprint. This feature proves invaluable in crowded workshops where space is limited. The machine can move forward, backward, and sideways with equal precision. Multiple units can work together for extra-large or irregular loads.
The battery system delivers 4 to 7 hours of continuous operation depending on the model. This runtime covers full work shifts without interruption. The lithium batteries recharge quickly and handle repeated discharge cycles.
Portable Electric Tank Trolley Applications Across Industries
Manufacturing Plants
The machine moves injection molding machines, stamping presses, and production line equipment. It enables quick reconfiguration of factory layouts without calling in rigging specialists.
Warehouses and Distribution Centers
Heavy storage racks, industrial shelving, and large pallets move easily. The machine reduces the time needed for warehouse reorganization from days to hours.
Construction Sites
The Portable Electric Tank Trolley transports heavy construction equipment and materials across job sites. Its battery power eliminates the need for extension cords or fuel deliveries.
Energy and Power Generation
Turbines, generators, and transformers require careful handling. The machine provides precise control for positioning these expensive components.
Aviation and Aerospace
Aircraft components and ground support equipment move safely in hangars. The quiet electric operation suits noise-sensitive environments.
Why Battery-Powered Load-Moving Skates Beat Traditional Methods

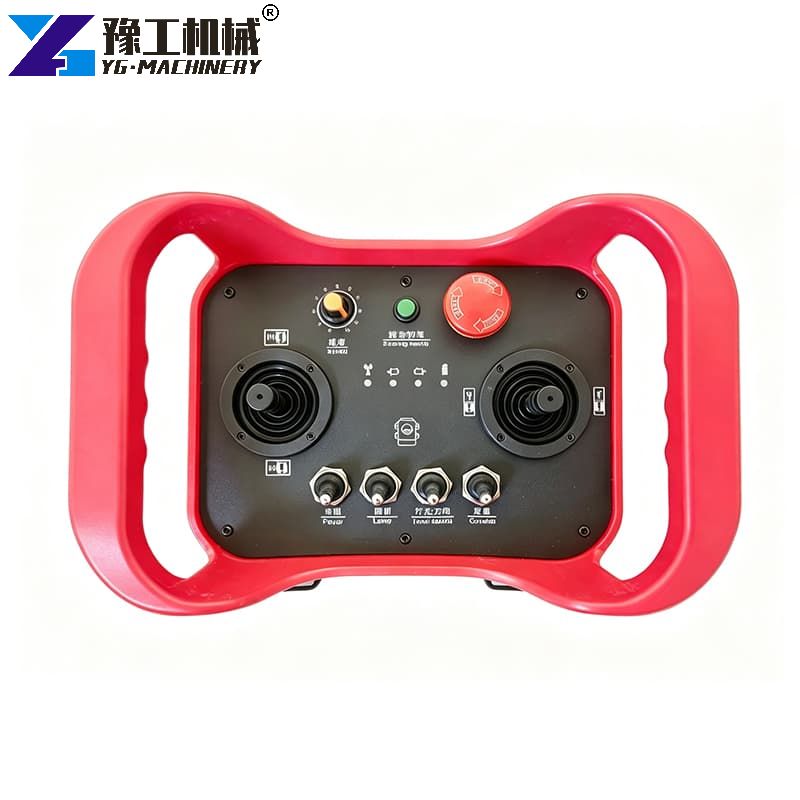

Safety comes first. Operators control the machine from a distance using the wireless remote. They stay clear of the load path. This eliminates the risks associated with manual pushing or towing. The remote provides precise speed and direction control.
Battery power replaces diesel. The machine runs quietly on electricity. No exhaust fumes pollute the workshop air. No fuel costs add to operating expenses. The lithium battery pack delivers consistent power throughout each charge.
Compact design fits tight spaces. The low profile allows the machine to slide under equipment with minimal clearance. The small turning radius enables operation in narrow aisles where forklifts cannot maneuver.
Durable construction ensures longevity. The Q355 steel panel provides a stable platform for heavy loads. Polyurethane wheels resist wear and protect floor surfaces. The gear motors and controllers are built for industrial-grade duty cycles.
The Battery-Powered Load-Moving Skates design eliminates the need for external power sources or tow vehicles. The machine operates independently anywhere in the facility.
Electric Load Moving Skate Tank: Top Questions Answered
The largest model handles 60 tons of traction weight. The actual load capacity depends on floor conditions and the load distribution. YG Machinery recommends consulting the technical team for specific applications.
Battery life ranges from 4 to 7 hours depending on the model and operating conditions. The 60Ah batteries on smaller models provide 4-6 hours. The 120Ah batteries on larger models deliver 5-7 hours.

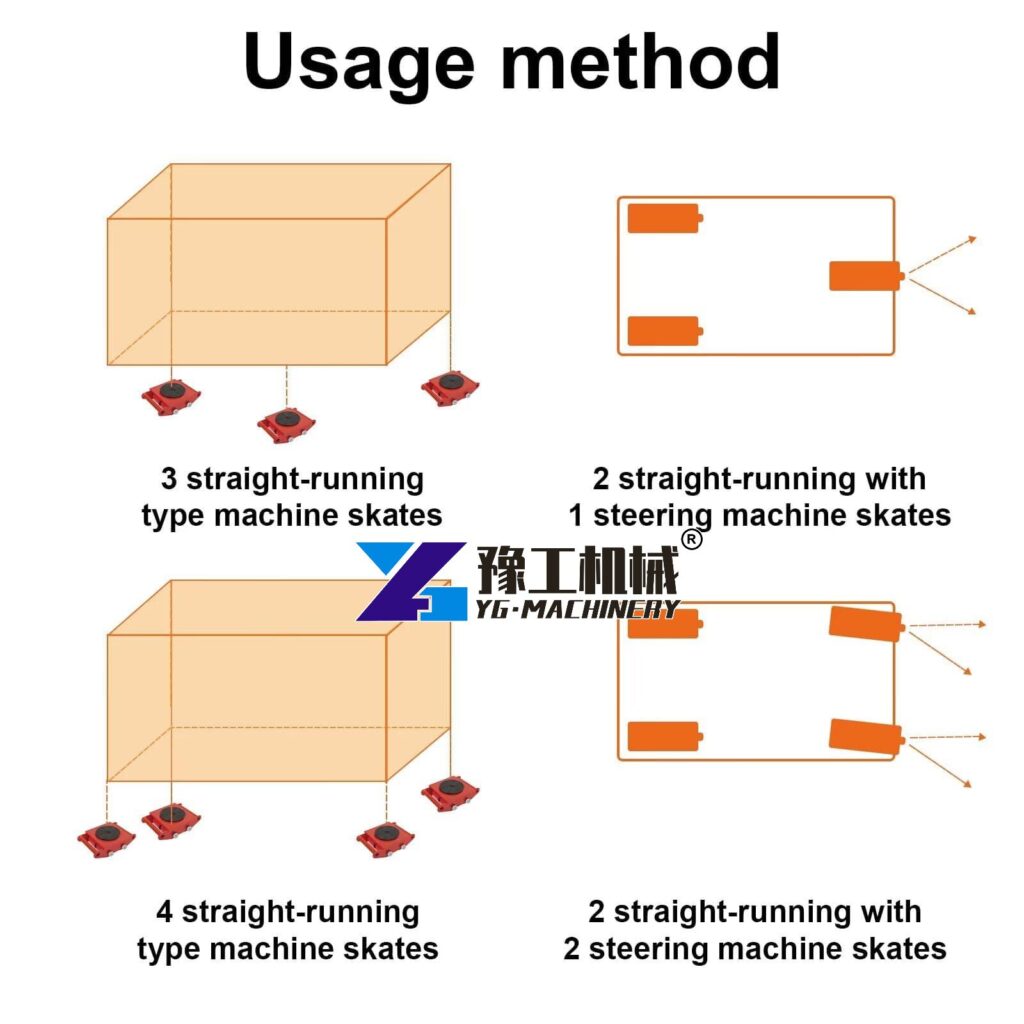

Yes. The remote control system supports multi-unit operation. This capability allows synchronized movement of oversized or irregular loads. One operator can control several machines simultaneously.
The polyurethane wheels perform well on smooth concrete, epoxy floors, and steel plates. Avoid rough, uneven, or debris-covered surfaces that could damage the wheels.
The machine rotates in place through its steering mechanism. This feature allows precise positioning in tight spaces without the need for multiple forward and backward movements.
Why Choose YG Machinery for Electric Load Moving Skate Tanks
YG Machinery has manufactured heavy equipment since 2006. The company serves customers across global markets with reliable, durable machinery. Each Electric Load Moving Skate Tank undergoes rigorous testing before shipment. The technical team provides installation guidance, operator training, and ongoing support.
The product line covers models from 10 tons to 60 tons. This range ensures customers find the right capacity for their specific needs. YG Machinery offers customization options for special requirements.
Get Your Electric Load Moving Skate Tank Quote Today
Ready to improve your heavy equipment handling? Contact YG Machinery for a customized solution. The sales team will help select the right model based on your load requirements and operating environment. Request a quote today and discover how the Electric Load Moving Skate Tank can transform your material handling operations.
