Moving heavy machinery inside factories and warehouses has long been a difficult task. Battery-powered load-moving skates provide a compact, remote-controlled solution for transporting heavy loads across flat floors. These electric platforms use dual gear motors and polyurethane wheels. They can slide loads weighing up to 60 tons with minimal operator effort. Unlike forklifts or cranes, they require no special training. They also work in narrow spaces with low headroom. Warehouses and shipyards across Africa and the Middle East use these skates daily. They support equipment installation, relocation, and production line reconfiguration. YG Machinery offers six models ranging from 20 to 60 tons of traction capacity.
| Parameter | 20T | 25T | 30T | 40T | 50T | 60T |
|---|---|---|---|---|---|---|
| Traction Weight | 20T | 25T | 30T | 40T | 50T | 60T |
| Electric Motor | 750W × 2 | 1000W × 2 | 1200W × 2 | 1500W × 2 | 2000W × 2 | 3000W × 2 |
| Controller | D2T80A Dual | D2T100A Dual | D2T100A Dual | D2T200A Dual | D2T200A Dual | D2T220A Dual |
| Remote Controller | C6/C7 | C7 | C7 | C6/C7 Industrial | C7 Industrial | C7 |
| Battery Specification | 48V 60Ah Li | 48V 60Ah Li | 48V 60Ah Li | 48V 120Ah Li | 48V 120Ah Li | 48V 120Ah Li |
| Working Current | 60A | 60A | 60A | 120A | 120A | 120A |
| Charging Current | 54.6A | 54.6A | 54.6A | 54.6A | 54.6A | 54.6A |
| Driving Wheel | 90×135×4 PU | 90×135×4 PU | 90×135×4 PU | 140×140×4 PU | 140×140×4 PU | 140×140×8 PU |
| Panel Material | 10mm Q355 | 12mm Q355 | 12mm Q355 | 16mm Q355 | 16mm Q355 | 16mm Q355 |
| Dead Weight | 10T | 12.5T | 15T | 20T | 25T | 30T |
| Battery Life | 3-4 hours | 3-4 hours | 3-4 hours | 4-5 hours | 4-5 hours | 4-5 hours |
Get Factory Quote | WhatsApp/Tel: +86 183 3715 2861
How Battery-Powered Load-Moving Skates Work

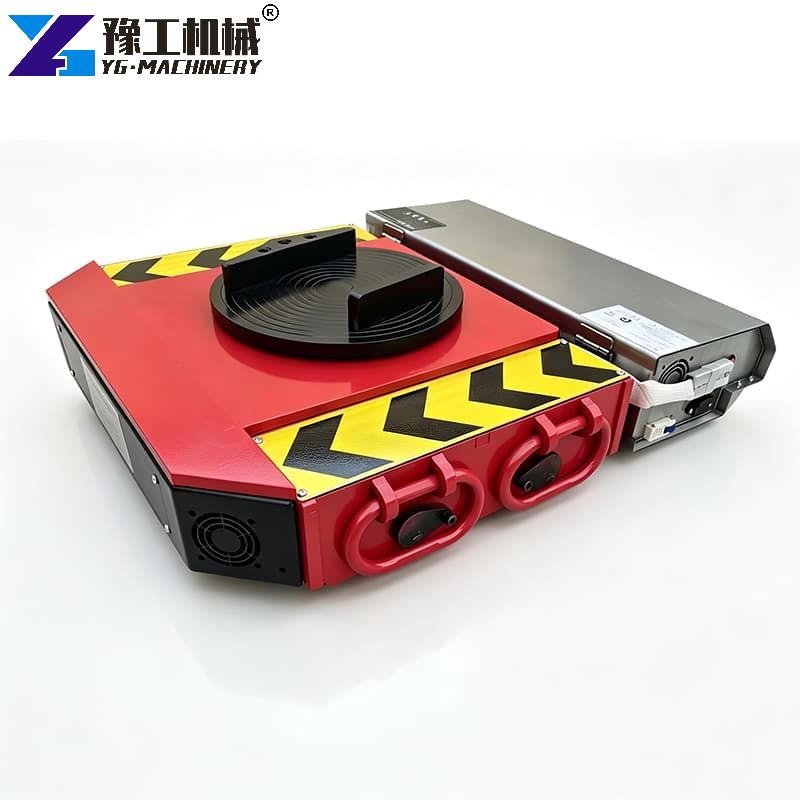

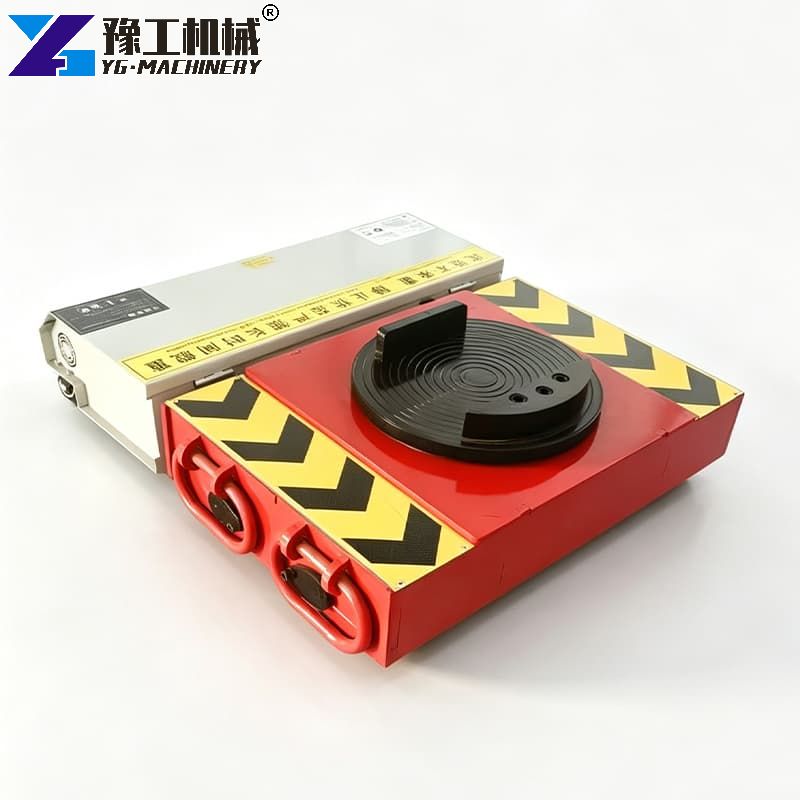

The working principle is straightforward and reliable. Each skate sits on a thick steel platform with polyurethane drive wheels underneath. Dual gear motors provide traction through a synchronized drive system. A rechargeable lithium battery pack supplies all the required power. An operator uses a wireless remote control to move the skate. Direction options include forward, backward, and turning on either side. The dual-channel controller adjusts speed and torque for smooth, precise movement. Because the load sits directly on the platform, the center of gravity stays low. This design makes the skate very stable even when carrying very heavy loads. Polyurethane wheels protect factory floors from damage during transport.
Key Features of Battery-Powered Load-Moving Skates
These electric skates include several practical features for industrial use.
- Wireless remote control with clear range for safe operation from a distance.
- Dual-channel drive system for balanced power and stable steering control.
- Lithium battery pack with 3 to 5 hours of continuous working time per charge.
- Q355 steel platform plate for maximum rigidity under heavy load conditions.
- Polyurethane drive wheels that protect floor surfaces and provide good traction.
- Six model sizes from 20 to 60 tons to match different load requirements.
The heavy-duty electric skate design works well for both indoor and outdoor applications on flat ground.
Selecting the Right Battery-Powered Load-Moving Skates
Choosing the correct model depends on your heaviest expected load and working environment.
- 20T to 30T models: Ideal for moving medium machinery, molds, and production line equipment.
- 40T to 50T models: Suitable for large transformers, generators and heavy industrial modules.
- 60T model: For the heaviest loads such as shipyard components and mining equipment sections.
Consider both current needs and potential future projects when selecting capacity. It is better to choose a slightly higher capacity than your maximum expected load. Also check door widths, aisle space, and floor condition before purchase. The motorized load mover handles best on smooth, level concrete floors.
Industrial Applications of Battery-Powered Load-Moving Skates
These electric transport platforms serve a wide range of industries and use cases.
- Factory equipment installation: Moving injection molding machines, CNC centers and press lines into position.
- Warehouse and logistics: Relocating heavy storage racks, palletized cargo and automation systems.
- Shipyards and ports: Transporting ship components, engine blocks and heavy fittings inside workshops.
- Mining and quarrying: Moving crusher parts, conveyor sections and heavy maintenance equipment.
- Power plants: Positioning transformers, turbine components and switchgear units.
- Aerospace and defense: Moving aircraft sections, missile containers and precision equipment.
- Construction projects: Relocating precast concrete sections and heavy structural steel beams.
Each application benefits from the compact profile and precise control these skates provide.
Safety and Maintenance Tips for Battery-Powered Load-Moving Skates
Proper operation and regular maintenance keep your skate working safely for many years. Always inspect the travel path for obstacles, uneven surfaces, or debris before use. Never exceed the rated traction capacity of the model you are using. Keep the remote control battery charged and the signal path clear. For maintenance, check the battery charge level before each shift. Clean polyurethane wheels regularly to remove embedded grit or metal shavings. Inspect the steel platform for cracks or deformation signs every month. Lubricate the drive motors and gearboxes every 500 operating hours. Have the battery pack tested annually for capacity and cell balance. Following these guidelines will maximize both safety and equipment lifespan.
Advantages Over Traditional Material Handling Methods
Compared with forklifts, cranes, and manual rollers, electric skates offer clear benefits.
- Lower cost than renting a crane or hiring a specialized rigging team for each move.
- Ability to work in narrow aisles and low-ceiling spaces where cranes cannot reach.
- Floor-safe polyurethane wheels that avoid damage to epoxy or painted factory floors.
- One-person operation with wireless remote control, reducing labor requirements.
- No exhaust fumes since they run on battery power, making them safe for indoor use.
- Quick setup time compared with assembling temporary rail or roller systems.
For facilities that regularly move heavy equipment, these skates provide fast return on investment.
Real-World Applications & Case Studies
Case Study 1: Riyadh Transformer Replacement Project (Saudi Arabia)
- Industry: Power & Energy
- Challenge: A distribution substation in Riyadh needed to replace an indoor 42-ton power transformer. The facility featured extremely tight clearance with overhead high-voltage busbars and piping. Additionally, the floor had an anti-static epoxy coating, which ruled out heavy cranes and required absolute protection against floor scratches and excessive ground loading.
- Solution: The site team deployed a YG 50T battery-powered load-moving skate. The skate’s low-profile chassis easily navigated under low-headroom obstacles, while its dual-drive polyurethane wheels distributed the heavy load evenly across the sensitive floor.
- Result: Controlled by a single operator using a wireless remote, the old transformer was extracted and the new unit was positioned with precision in just 3 hours. The epoxy floor remained completely undamaged, cutting labor and downtime by 80% compared to traditional skidding systems.
Case Study 2: Haiphong Stamping Line Relocation (Vietnam)
- Industry: Automotive & Machinery Manufacturing
- Challenge: As part of a plant upgrade, an automotive factory required the re-layout of 4 large stamping presses, each weighing 35 tons. Due to strict production schedules, the plant manager had a tight 48-hour shutdown window to complete the entire move.
- Solution: The team utilized two YG 40T motorized skates simultaneously to work on separate machines. Taking advantage of the long battery endurance (4–5 hours of continuous operation) and precise remote inching controls, workers aligned the heavy machinery rapidly without setup delays.
- Result: All 4 stamping presses were moved and roughly positioned within 30 hours—18 hours ahead of the scheduled downtime window. This avoided costly production halts and kept the assembly line project on schedule.
Case Study 3: Lagos Shipyard Marine Engine Installation (Nigeria)
Result: The 55-ton engine was smoothly transported and aligned to millimeter accuracy with the foundation base. The project eliminated the risk of equipment tipping and drastically improved assembly efficiency for large marine components.
Industry: Shipbuilding & Heavy Marine
Challenge: A Lagos shipyard needed to translate a 55-ton marine diesel engine across a workshop floor onto its mounting base. The movement path involved slight floor inclines and narrow expansion joints, where traditional winch-and-roller setups risked slipping or snagging.
Solution: The shipyard selected the YG 60T heavy-duty electric skate, engineered with a 16mm Q355 reinforced steel plate and C7 industrial remote controller. The dual-channel system allowed real-time torque adjustments to both driving wheels, ensuring smooth tracking over uneven floor seams.
Request Solution for My Business
FAQ About Battery-Powered Load-Moving Skates
These skates perform best on smooth, level concrete or paved surfaces. Minor unevenness up to 5 millimeters is acceptable. Greater unevenness can reduce traction and may damage the drive wheels. Always inspect the travel path before moving heavy loads.
Depending on the model and payload weight, our lithium battery packs provide 3 to 5 hours of continuous operation on a full charge. For longer projects, spare battery packs can be swapped quickly to ensure uninterrupted workflow.
Yes. The skates are equipped with heavy-duty polyurethane wheels that distribute weight evenly. They provide excellent traction while protecting epoxy, coated, or polished concrete floors from scratches and structural damage.
The industrial wireless remote features an emergency stop (E-stop) button, precise speed and torque adjustment, dual-channel steering control, and a long-range signal connection to ensure operators can control heavy loads from a safe distance.
These skates feature a low-profile chassis and a compact footprint, making them ideal for tight aisles, narrow doorways, and low-headroom spaces where overhead cranes or large forklifts cannot fit.
Routine maintenance includes inspecting and cleaning the polyurethane wheels, checking battery charge levels before use, inspecting the steel platform frame monthly, and lubricating the drive motors and gearboxes every 500 operating hours.
Why Choose YG Machinery for Your Material Handling Needs
YG Machinery has manufactured industrial material handling equipment for over 20 years. We export to more than 100 countries across Africa, Asia, and the Middle East. Our engineering team designs each model for heavy industrial use with quality components. We provide pre-sales consultation to help customers select the right capacity and configuration. Customization options include platform size, wheel type, and battery capacity upgrades. After delivery, our service team offers remote technical support and spare parts supply. All skates come with a one-year warranty and lifetime technical guidance. We can also arrange factory inspections for customers who wish to visit our facility.
Ready to move heavy loads more efficiently? Contact YG Machinery today for a free quotation. Our team will respond within 8 hours with detailed specs and pricing.
